Trane YCZ035F1 - Outline - Front

Page 5
4

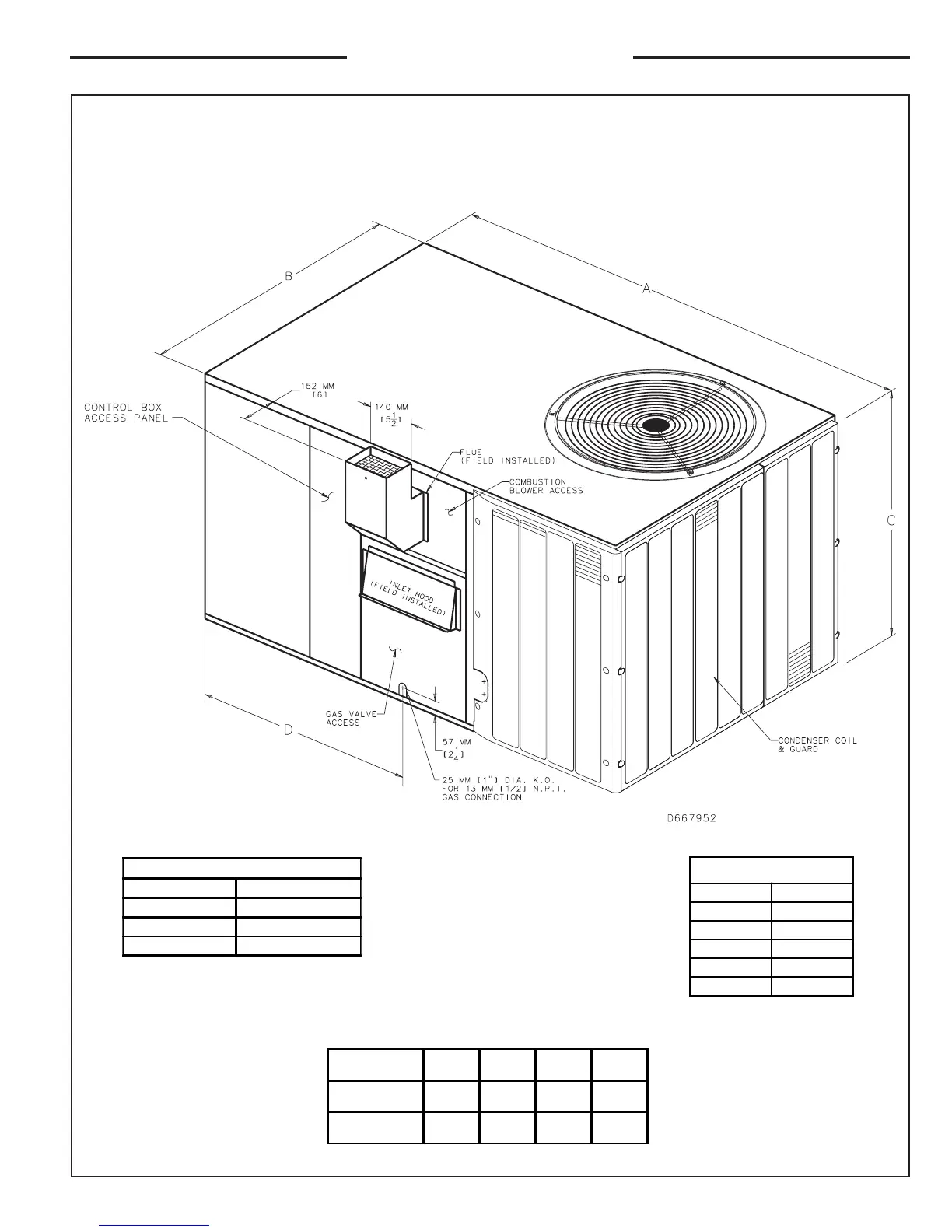

DIMENSIONAL DATA
YCZ036,050,060F OUTLINE – FRONT
CLEARANCE TO
COMBUSTIBLE MATERIAL
BOTTOM 0.0"
BACK 1.0"
LEFT SIDE 6.0"
RIGHT SIDE 6.0"
FRONT SIDE 12.0"
TOP 36.0"
RECOMMENDED SERVICE CLEARANC
E
BACK * 6.0"
LEFT SIDE 30.0"
RIGHT SIDE 24.0"
FRONT 42.0"
* 18" WITH FRESH AIR ACCESSORY
* 30" WITH ECONOMIZER
MODEL
ABCD
YCZ036F-M 64 36 29-3/16 27-1/2
YCZ050F-M
YCZ060F-M
65-1/8 45 33-3/8 27-15/1
6
