2 | P a g e
1.

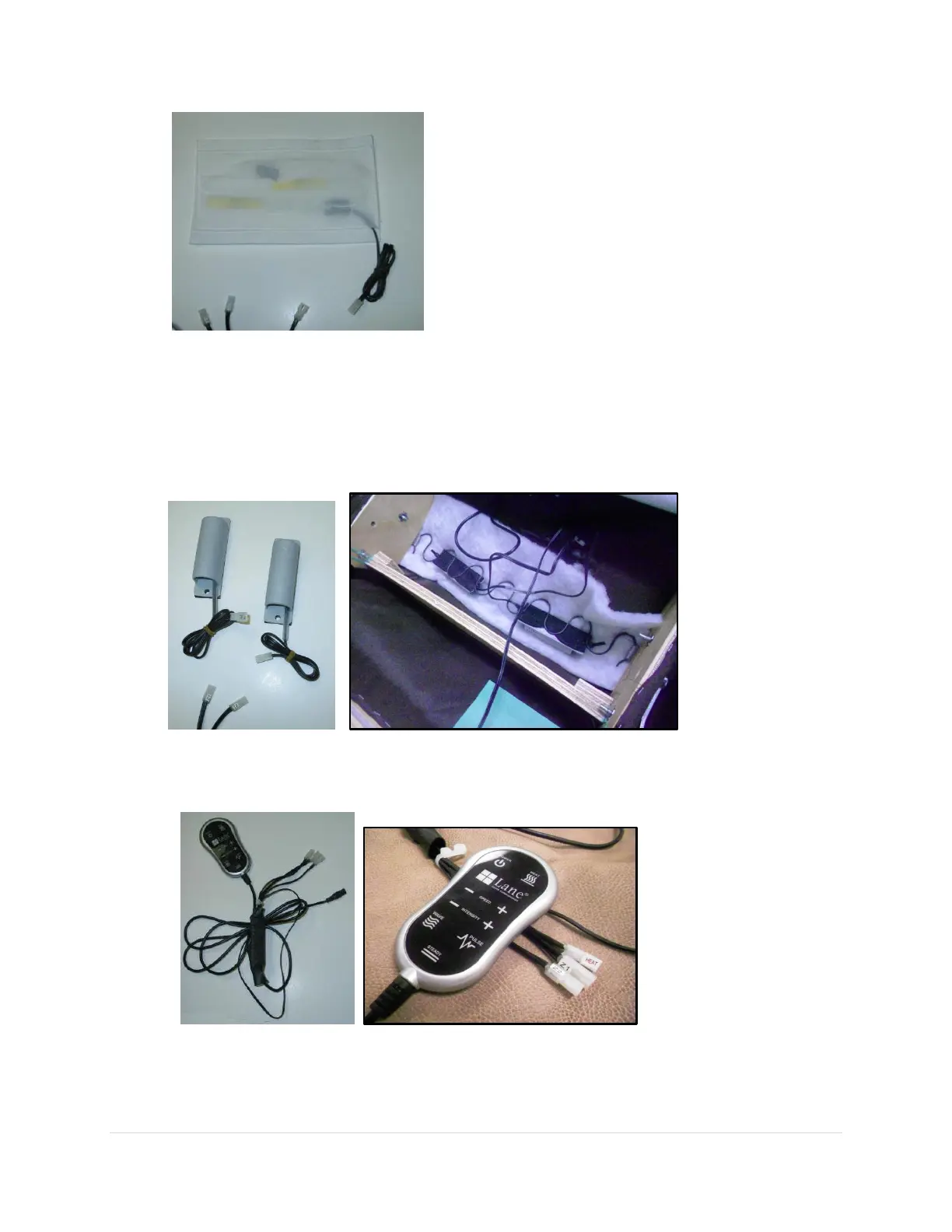

Heat pad will be glued to a small piece of 1.0 fiber and placed into the lumbar area of
the inside back. There should be a thin layer of inside back fill between the cover and
the heat pad. The remaining inside back fill is helping to hold the heat pad in place. The
cord will be positioned to the bottom (as shown above) and run out the back of the
back.
2.
The 2 motors/vibrators are attached to the bottom back spring with zip ties, as shown in
the right image above. (Outside of each motor to second loop.)
3.
The heat pad will be connected to the connector labeled “heat” and the motors to the
connectors labeled “Z1” and “Z2” on the hand wand wire assembly shown above.
