400X CompactFlash Card
Transcend Information Inc.
V1.0
52
 Contiguous I/O Mapped Addressing
When the system decodes a contiguous block of I/O registers to select the CompactFlash Storage Card, the registers
are accessed in the block of I/O space decoded by the system as follows:

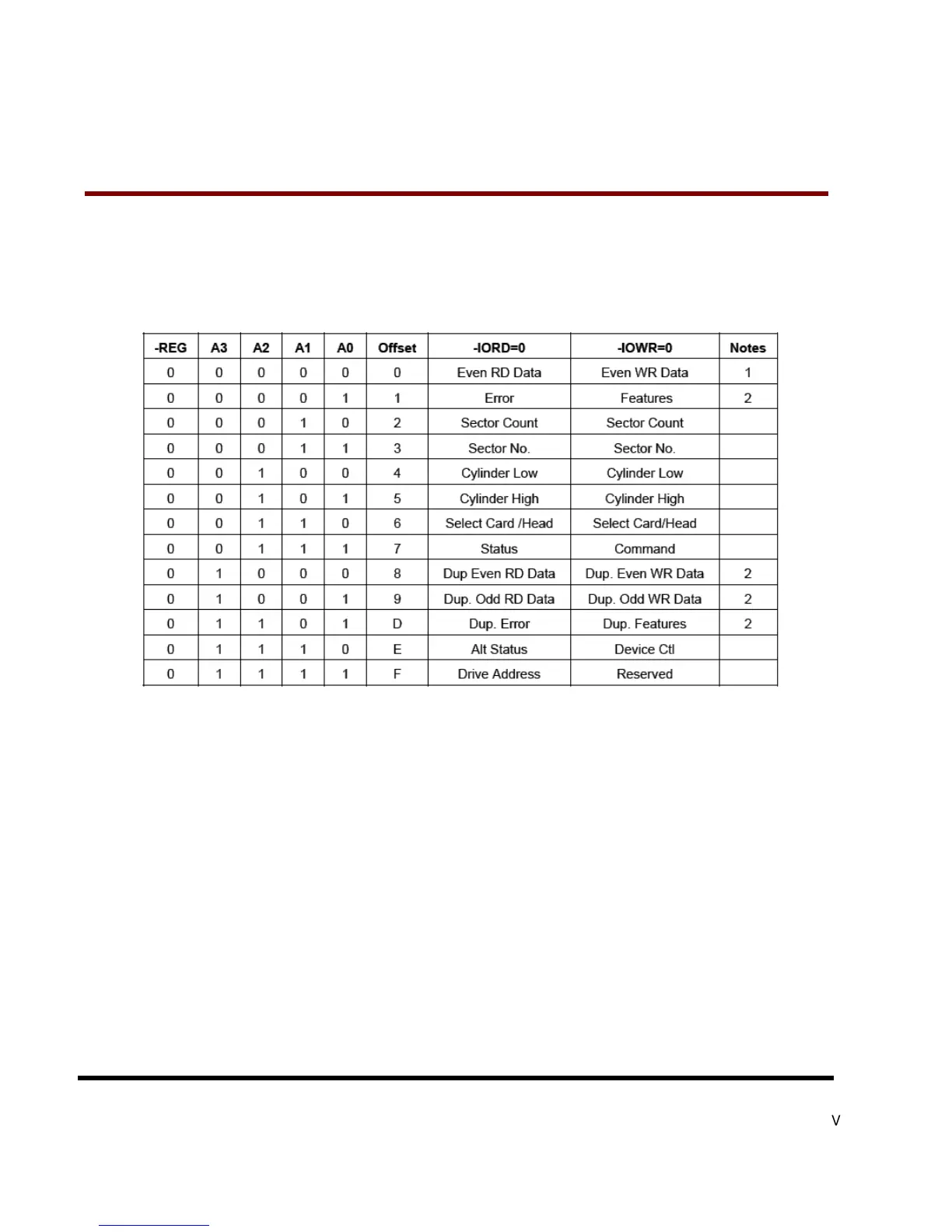

Table: Contiguous I/O Decoding
