Assembling procedure for M16
This manual belongs to the new M16 series of TranzX. Powered by LogiX Line. Page 2 of 4

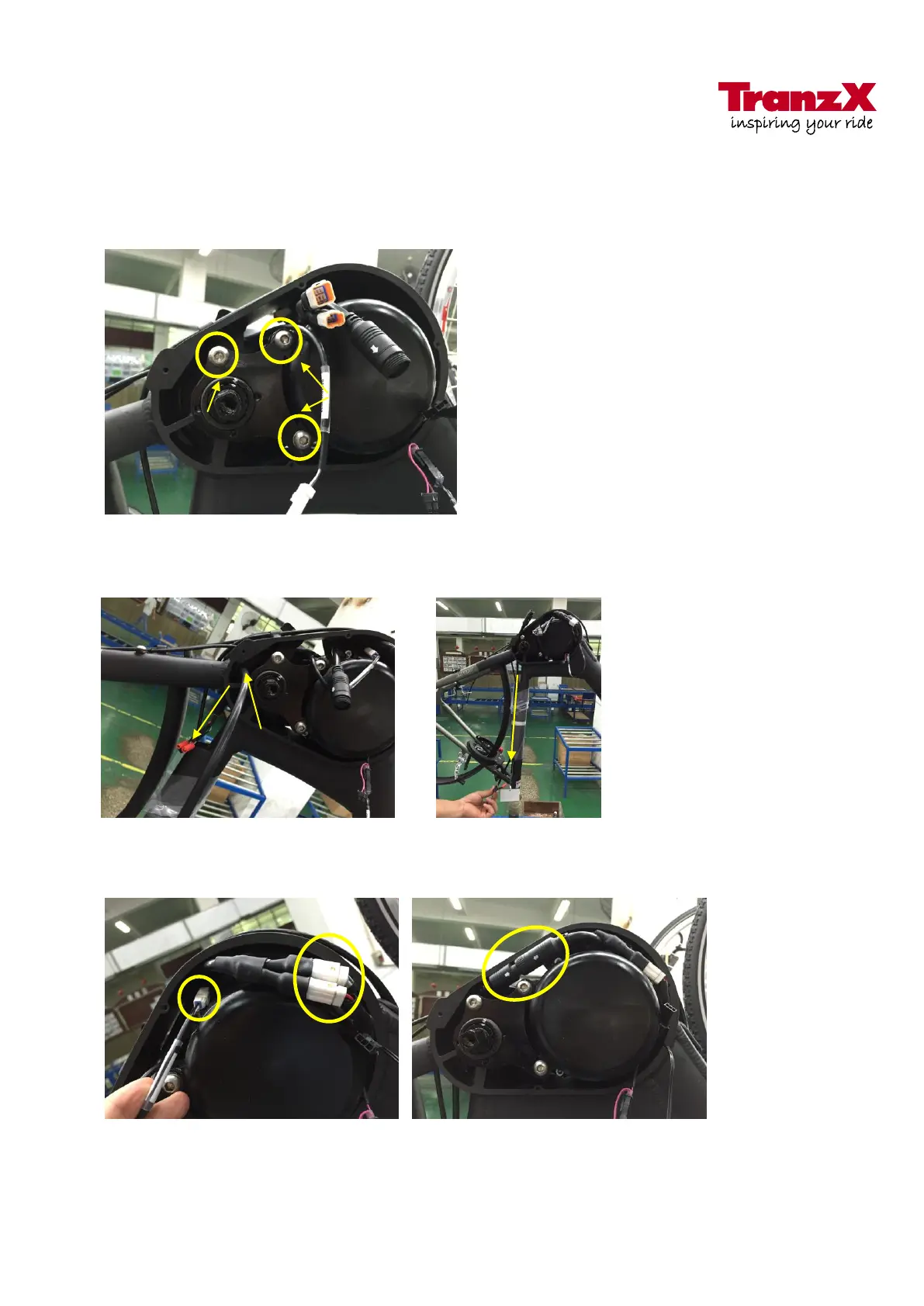

3. put on the fixed plate of motor to the frame. Tighten the three screws (two are M6*11 with a
washer, and one is M8*16；Torque= 130kgf)
4. Put the patch cord of motor into the frame.
5. Connect the four cables
To Next Page
