Assembling procedure for M16

This manual belongs to the new M16 series of TranzX. Powered by LogiX Line. Page 3 of 4

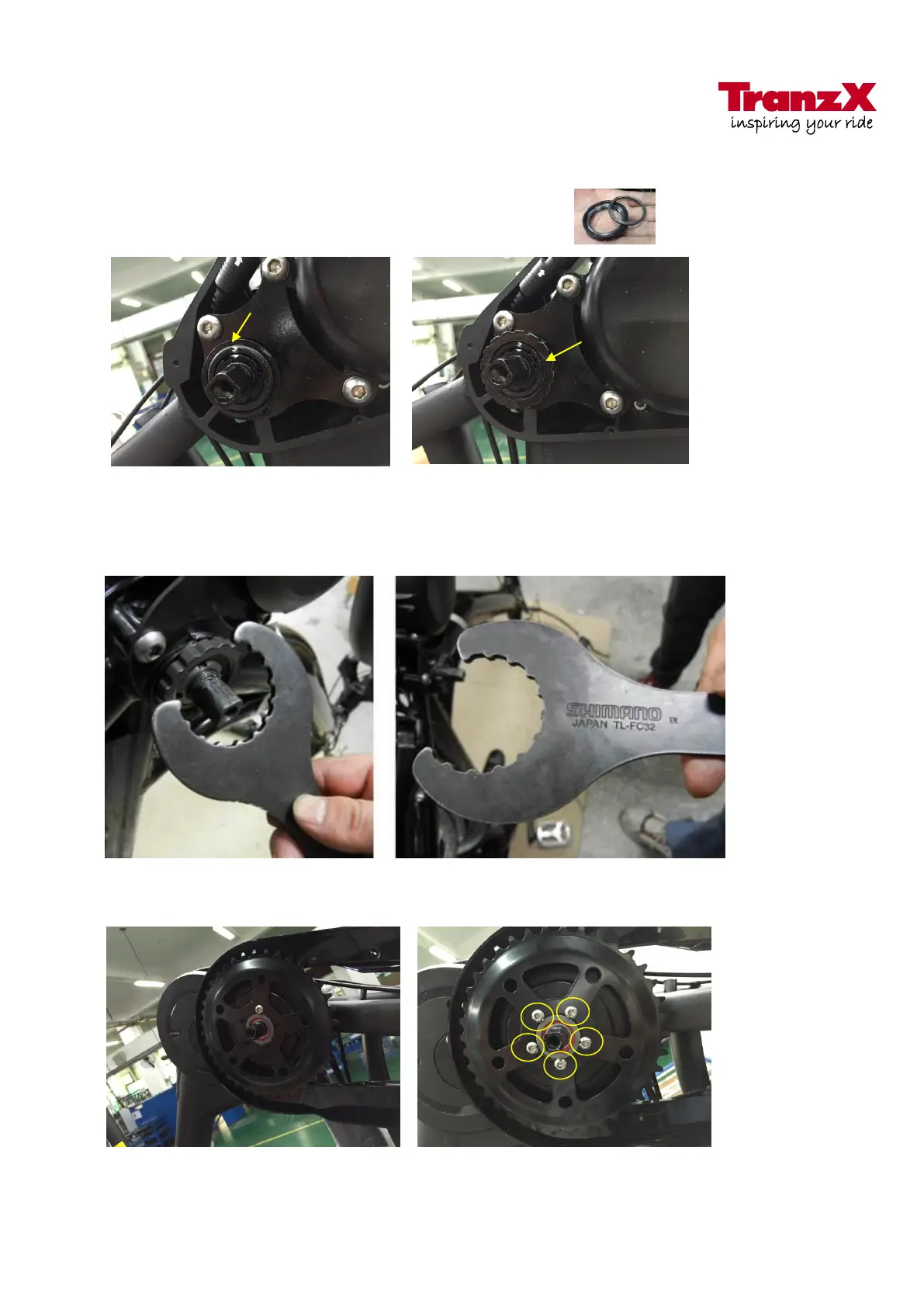

6. put on a spring washer and a nut to the motor

7. Tighten the nut by the special tool (TL-FC32)，Torque=400kgf.

8. put on the chain ring and tighten the 5 screws (M4*6；Torque=70~90kgf)

Spring washer

Nut
