Assembling procedure for M16
This manual belongs to the new M16 series of TranzX. Powered by LogiX Line. Page 4 of 4

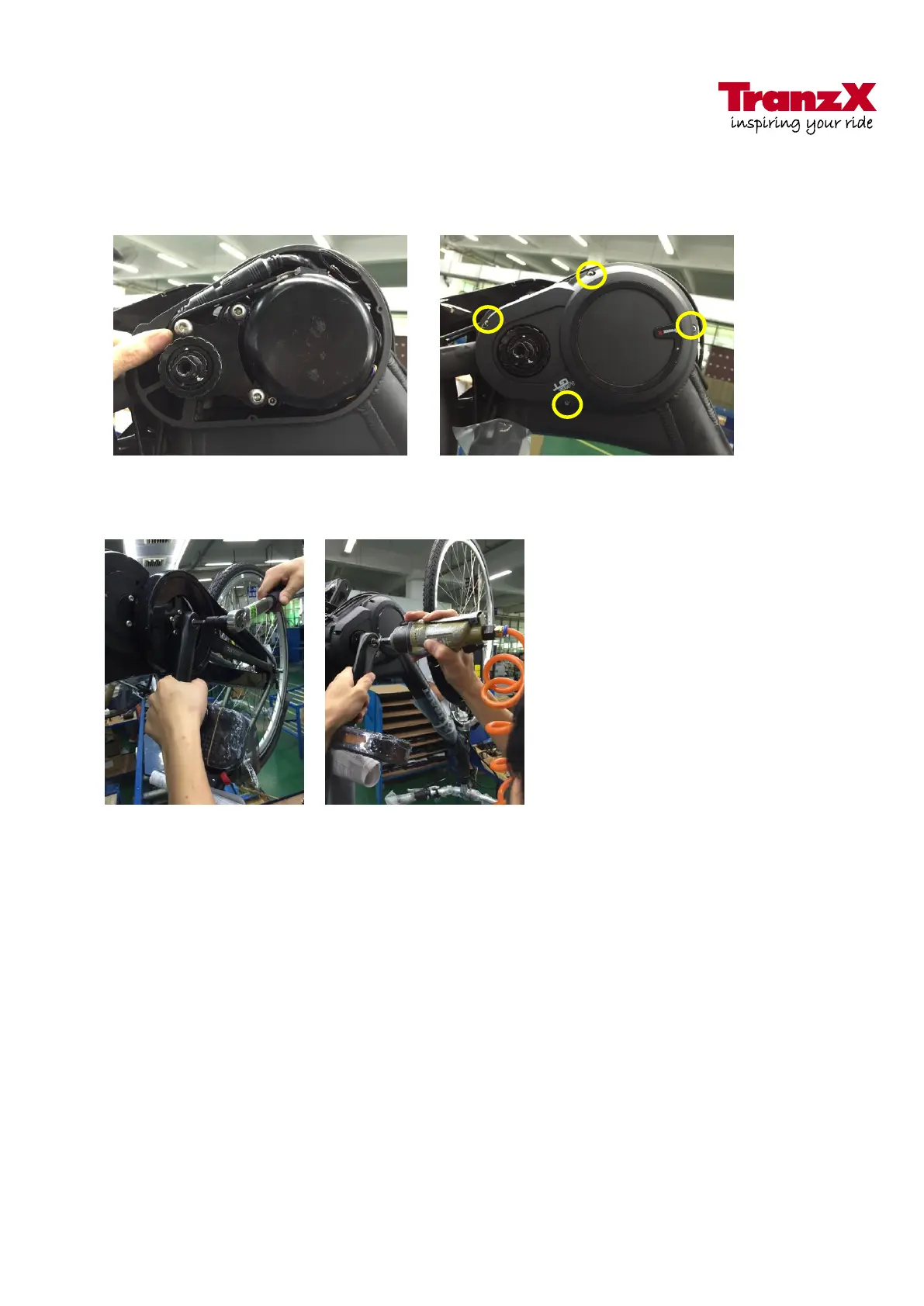

9. Put all the cable into the frame, and lock the cover of motor (4 screws)
10. put on the pedal of both side to the motor (torque: 450 kgf-cm)
