❑ If the T-bar width is 14.2 millimeter (9/16 inches), you need to install the 14.2-millimeter (9/
16 inches) T-bar clamp. Go to step 4.
❑ If the T-bar width is 23.9 millimeter (15/16 inches), the universal mounting bracket fits
directly onto the T-bar. Go to step 5.
4. Install the 14.2-millimeter (9/16-inch) T-bar clamp onto the ceiling T-bar as shown in Figure 1–5.
a. Slide each half of the clamp onto the T-bar so that the clamp lip is fully on the T-bar.
b. Slide the two halves of the clamp toward each other until the tabs are inserted completely into
the holes and the clamp fits snugly on the T-bar.

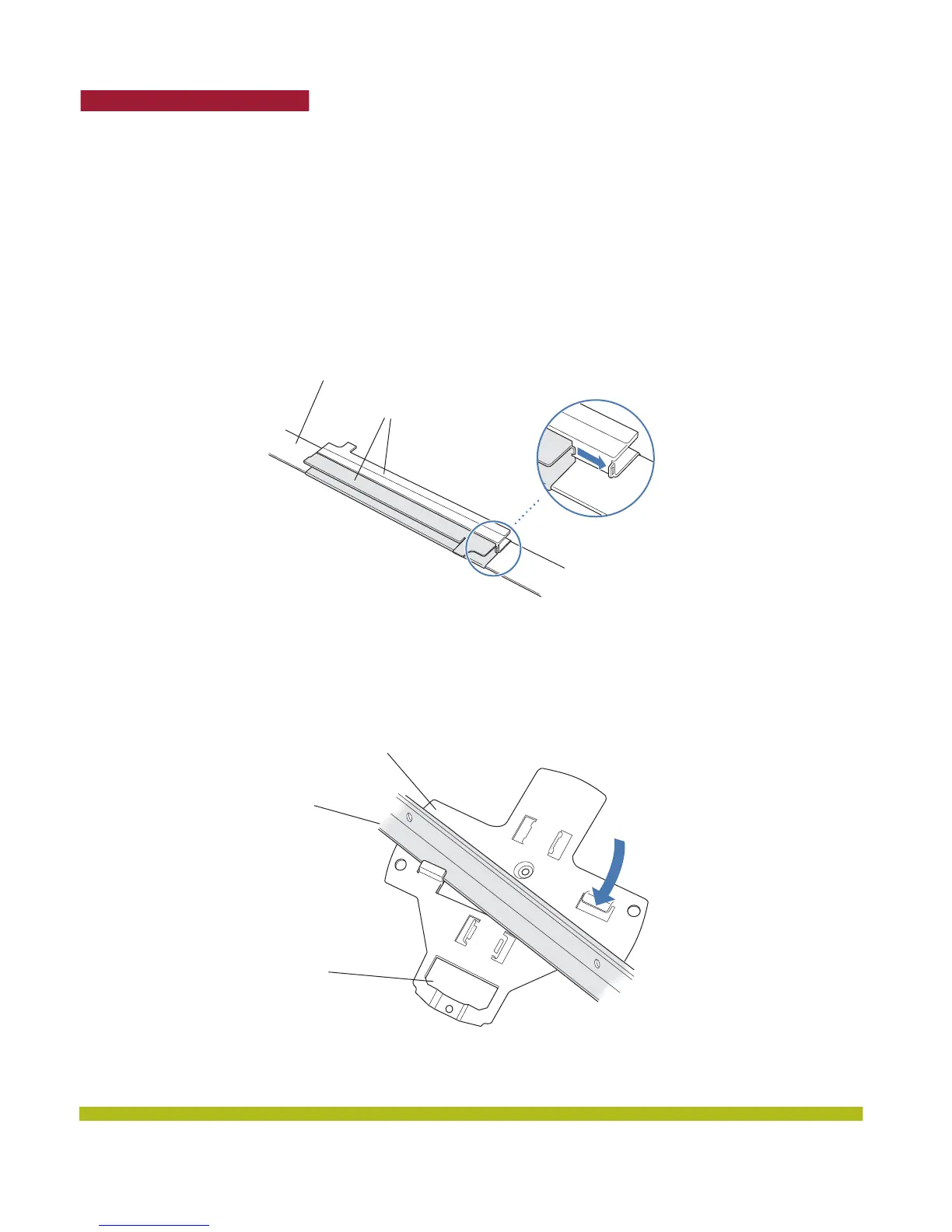

Figure 1–2. Step 4—Installing a T-bar Clamp
5. Install the universal mounting bracket as follows onto the T-bar or T-bar clamp.
a. As shown in the figure below, place the universal mounting bracket against the T-bar or clamp
so that the two screw holes face downward and the two T-bar flanges face upward and are
adjacent to the T-bar edges.
Figure 1–3. Step 7—Top View
T-bar
T-bar clamp halves
Slide together
T-bar
(Viewed from above ceiling tiles, looking down.)
Universal mounting
bracket
Port connector
opening
