Indoor Mobility Point™ Quick Start Guide
19
Trapeze Networks
7. Install the universal mounting bracket as follows onto the T-bar or T-bar clamp.
a. As shown in Figure 1–8 below, place the universal mounting bracket against the T-bar or clamp
so that the two screw holes face downward and the two T-bar flanges face upward and are
adjacent to the T-bar edges.

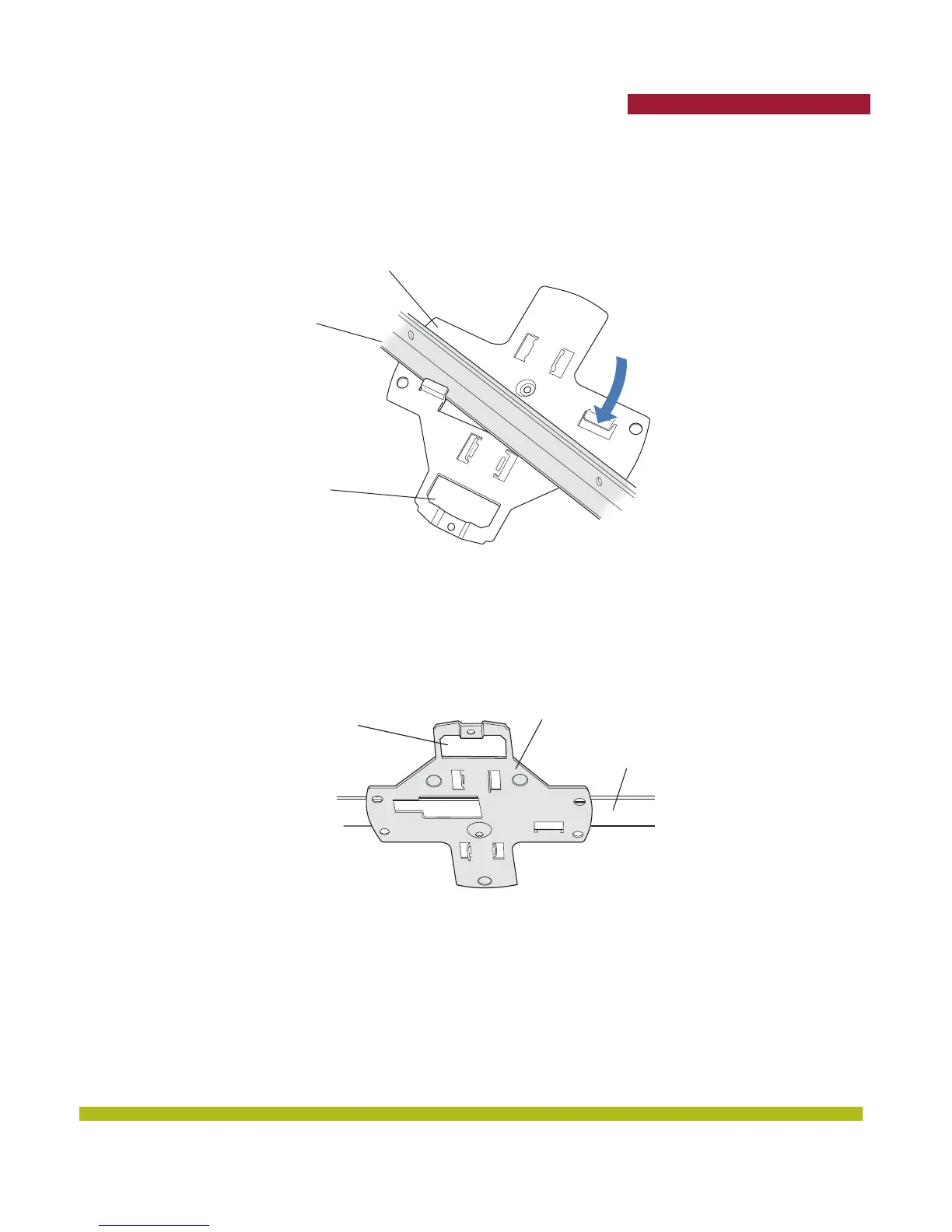

Figure 1–8. Step 7—Top View
b. Properly align the bracket for mounting by placing the bracket so the port connector opening is
to the left of the hole you cut for the cables.
c. Rotate the universal mounting bracket clockwise until the flanges snap into place on the T-bar
or clamp as shown below.
Figure 1–9. Step 7—Bottom View
T-bar
Universal mounting
bracket
Port connector
opening
T- b a r
Universal mounting bracketPort connector
opening
