TR 500E / TR 500G

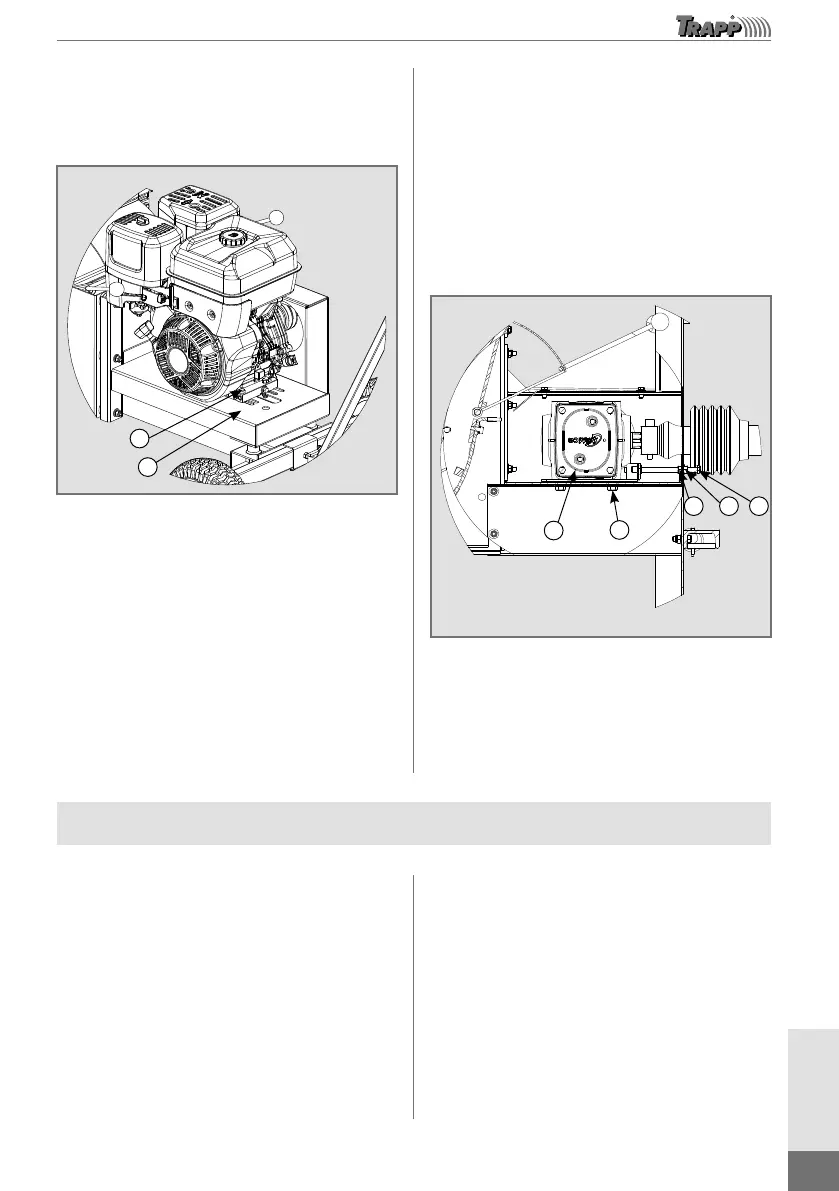

1. Loosen the motor xing screws and nuts (1),
positioned on the base (2), so that the belts are
with the desired clearance, as shown in Figure 5.
Image merely illustrative
1
2
Fig. 5
2. With the adjustment made, tighten the motor
xing screws and nuts (1) always observing the
motor alignment, where the motor base must be
parallel with the machine base (2), also observing
the alignment of the motor pulleys with the
disc pulley. To check this alignment, a ruler or
something that serves as a ruler can be used,
where the two pulleys will be compared, touching
the ruler across the face of the motor pulley and
the other end of the ruler must be touching the
face of the disc pulley. The alignment will be
correct when the two ends of the ruler touching
the pulley faces evenly.
TR 500T
1. Loosen the screws (1) that x the transmission
box (2), just to loosen the box; you don’t need to
remove these screws;
2. Loosen the nuts (3) and (4);
3. Tighten the screw (5) until the clearance in the
belts is ± 10 mm, as shown in Figure 6;
4. After adjusted the clearance, tighten the nuts (3)
and (4).
Image merely illustrative
1
543
2
Fig. 6
Maintenance Instructions
After use, clean the equipment residues.
In shredders with PTO 500T it is necessary to check
before use, if the 3 xing points are blocked and if
the cardan shaft is xed on the 2 tips of the TDP.
The equipment shall be on, with power outlet
disconnected from power supply, when servicing or
cleaning the shredder.
Hammer replacement
Hammers installed in the disk can be used twice.
When one side of the hammer is worn, and
products are poorly shredded, turn hammers over as
described below:
1. Loosen the two hexagon nuts and remove service
opening protection (2).
2. Remove side cover (locking of square rods) (1).
