V. CONTROL ARCHITECTURE
-6-

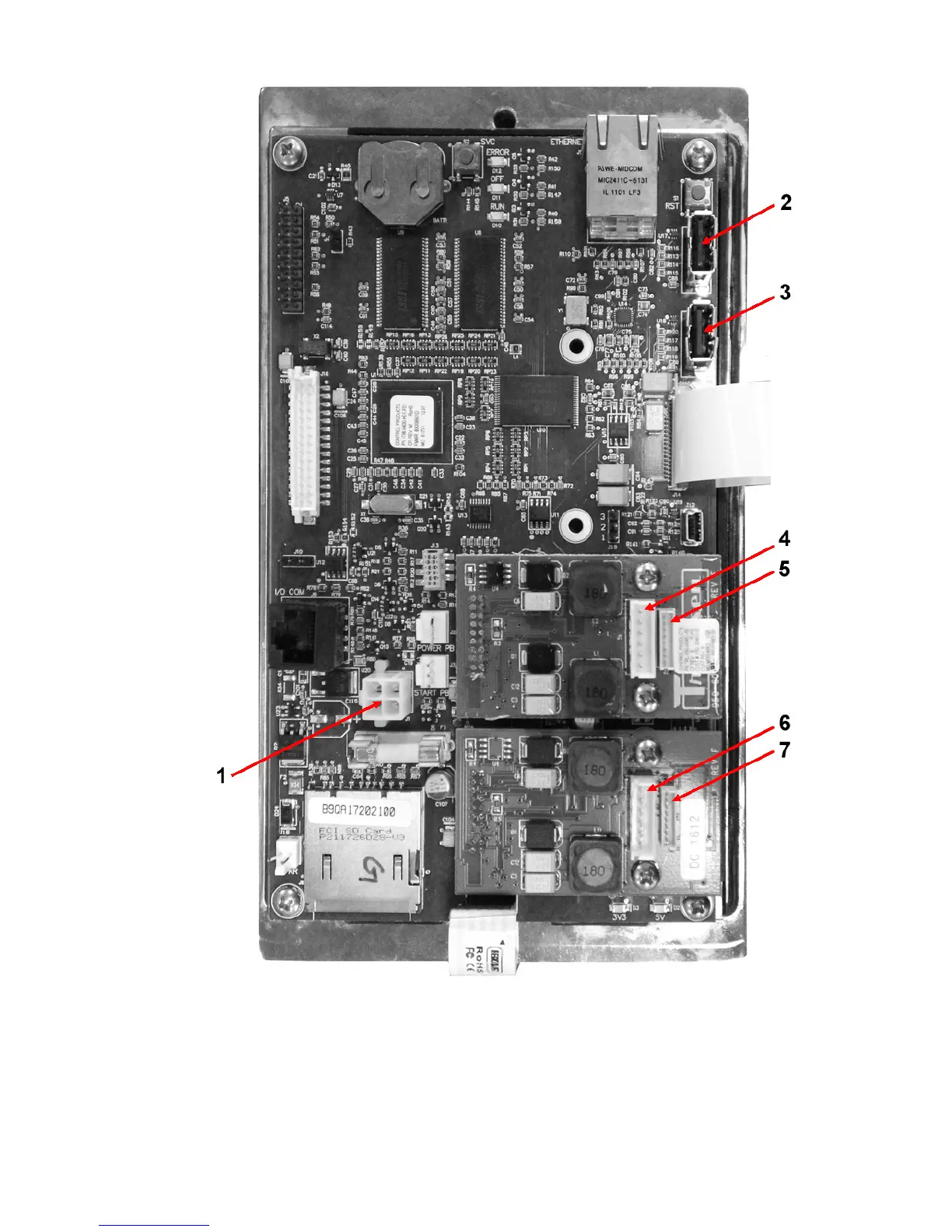

LEGEND
1. UI Power 5. Label Printer Communication
2. USB Port (used) 6. Paper Printer Power
3. USB Port (unused) 7. Paper Printer Communica-
tion
4. Label Printer Power
