8

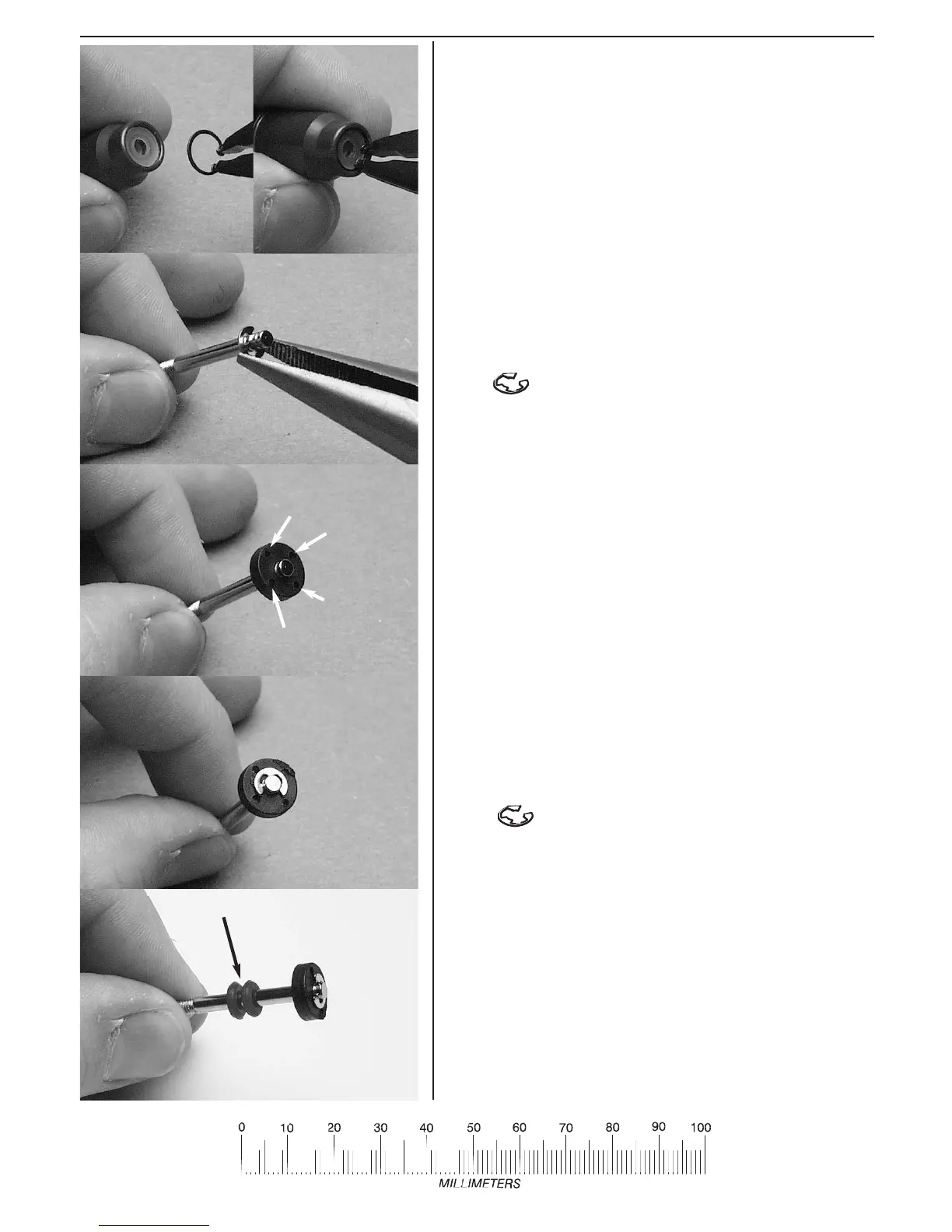

STEP A-6
Secure the bottom shock assembly with a C-clip. Use C-clip pliers to
compress the C-clip and and insert it into the groove in the bottom of the
shock body. If you do not have any C-clip pliers or strong, sharp tweez-
ers, try inserting one side of the C-clip into the groove and then carefully
push the other side into the groove with a small screwdriver. Wear pro-
tective eyewear when working with the C-clips.
STEP A-7
Locate one of the 32mm shock shafts and snap a small E-clip into the
bottom groove on each.
STEP A-8
Find one of the two-hole piston heads and place it onto the shaft. The
picture shows two holes and two molding indentations. The holes are all
the way through the piston head.
STEP A-9
Secure the piston head with a small E-clip
STEP A-10
Locate the two blue O-Rings. Slide the O-rings over the grooved end of
the shaft. These are shock travel limiters.
hole
hole
molding
indention
O-Rings
molding
indention
