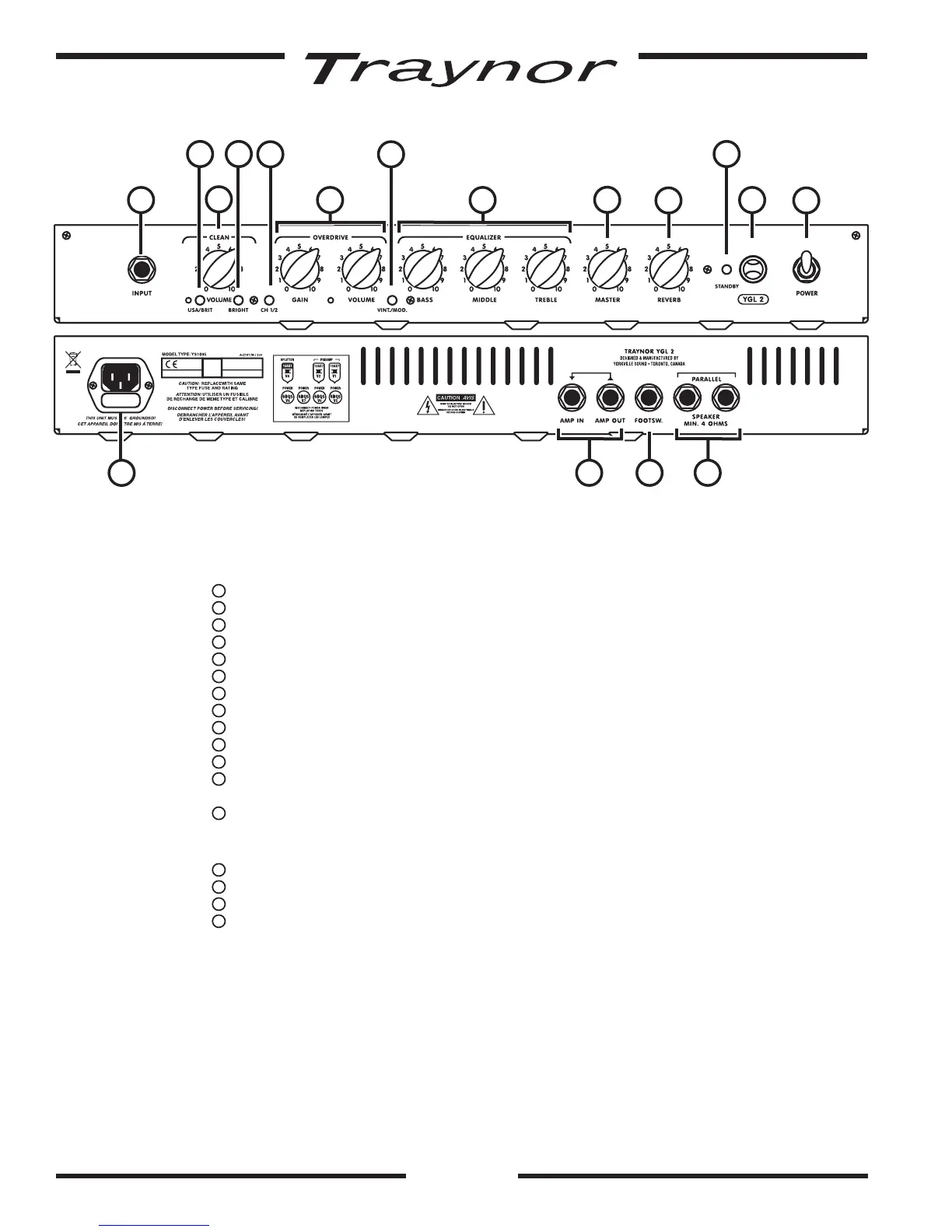

Chassis Layout
Top
1
Input Jack–1/4-inchphonejack.
2
USA/Brit switch.
3
Clean volume control.
4
Bright switch.
5
Channel Select switch..
6
Overdrive Gain and Volume controls.
7
Vintage/Modern switch.
8
Equalizer tone controls – Bass, Middle and Treble
9
Master volume control.
10
Reverbcontrol–adjuststheAccutronics®reverblevel.
11
Standby switch.
12
Power Indicator Jewel – Illuminates Red when power is on
 andYellowwheninStandbymode.
13
Power switch.
Rear
14
Fuse and Power cord receptacle.
15
Amp In / Amp Out(sendandreturn)–1/4-inchphonejacks
16
Footswitchjack–usesa1/4-inchTRSstandardlatchingdual-footswitch
17
Speakerjacks.
