Rev 2, 12.02.2016 14
The balance is fitted with one bubble level, and adjustable feet for level-control that
allow for small height differences or any unevenness in the surface on which the
balance is placed.
The screw feet must be adjusted so that the air bubble is precisely in the center of the
sight glass of the bubble level (see Fig. 3.2)
Place the scale horizontally and keep the bubble inside the bubble level aligned with the
circle (Fig.3.2). In order to get exact measurements, the balance must be carefully
leveled after each re-location.

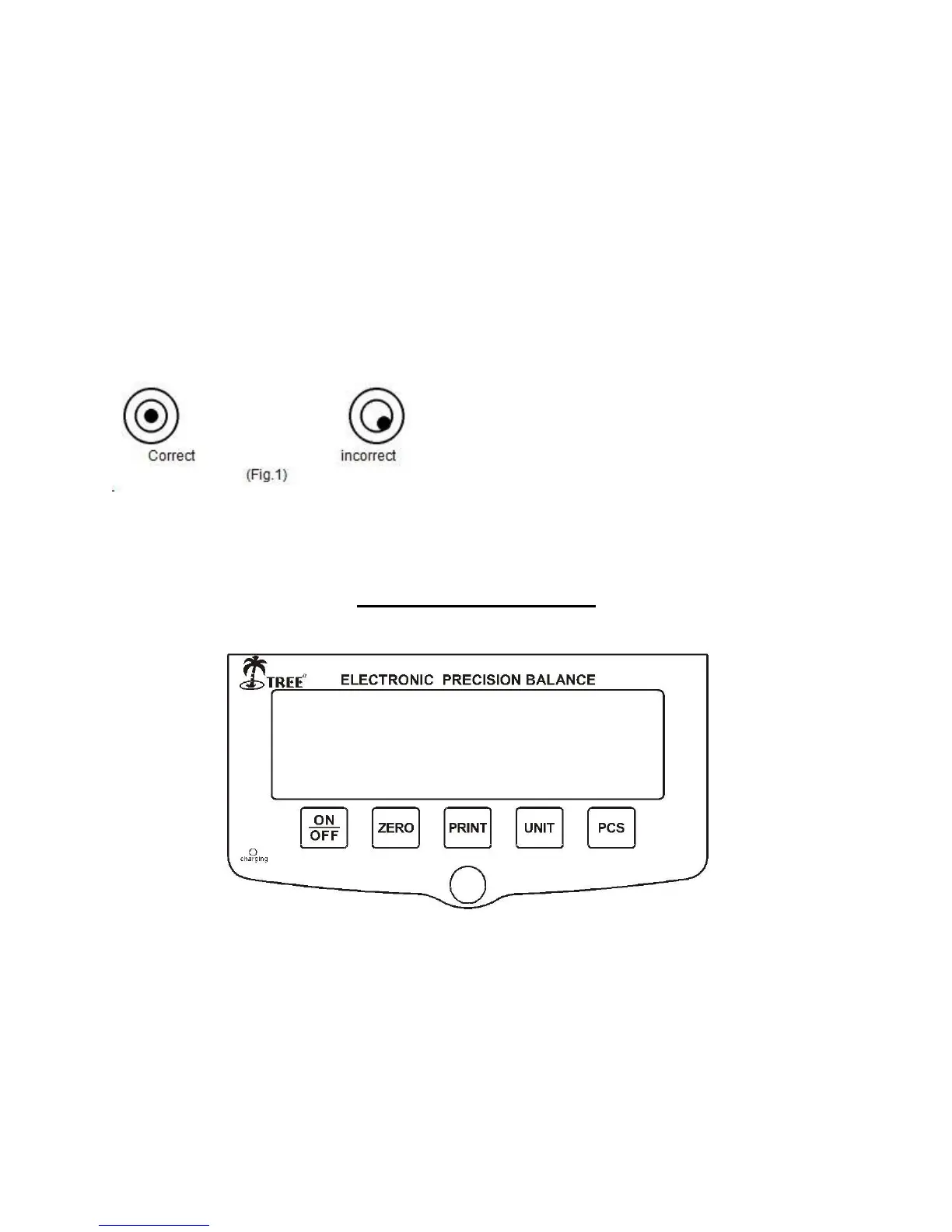

Fig. 1 correct leveling with the aid of the bubble level
Application Menu
Display messages and key functions
