TREELINE FDR0350AS - Assembly Instructions; Parts and Components Identification

ASSEMBLY INSTRUCTIONS
READ ALL SAFETY WARNINGS & ASSEMBLY INSTRUCTIONS CAREFULLY
BEFORE ASSEMBLING OR OPERATING YOUR FEEDER.
FOR MISSING PARTS, PLEASE CALL CUSTOMER SERVICE AT 855-735-9922.
Inspect contents of the box to ensure all parts are included and undamaged.
2
We recommend two people work together when as sem bling this unit.
The following tools are required (not included) to assemble this
Corn Feeder:
• Pliers
• Phillips & Flathead Screwdrivers
• Adjustable Wrench

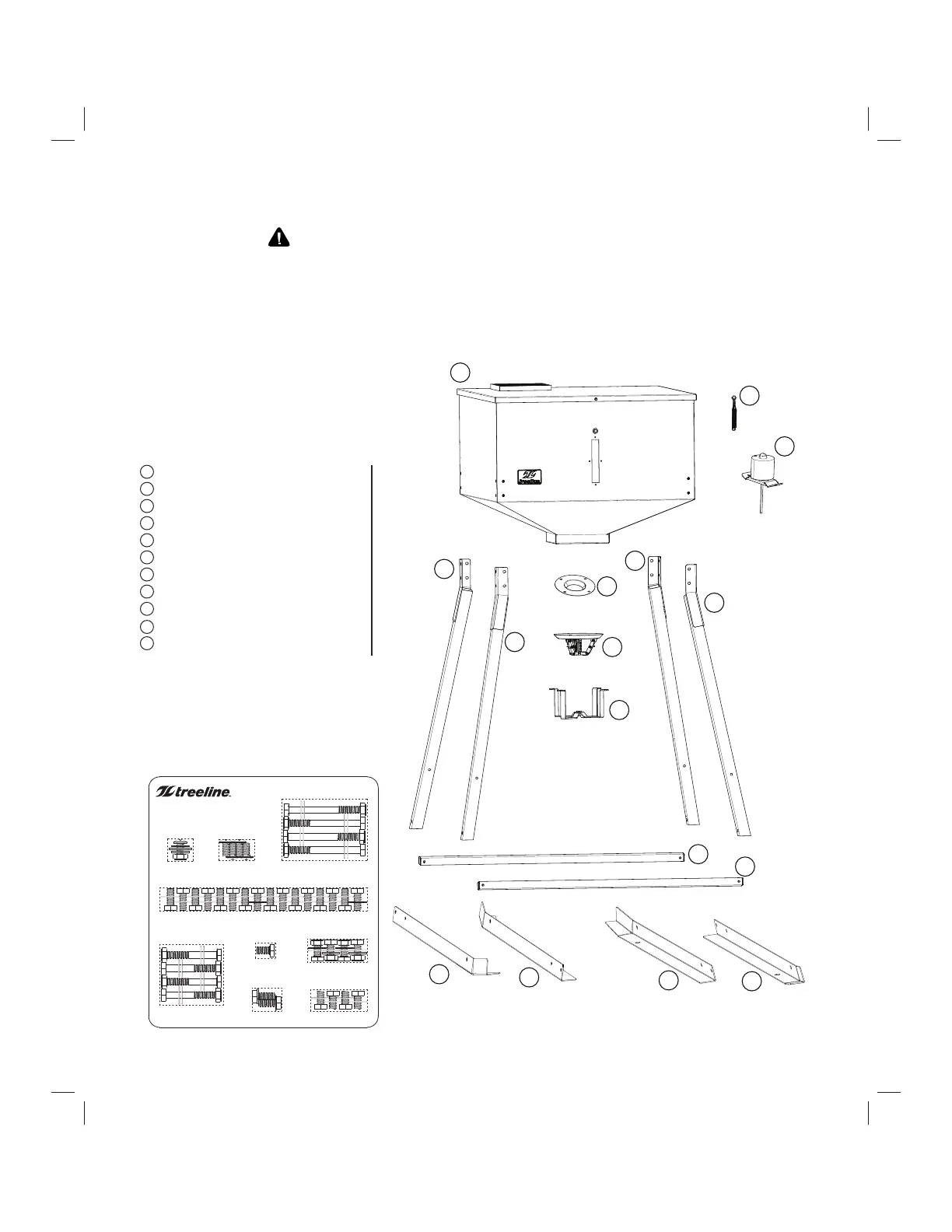

1
1 Hopper
2
1 Spring Latch
3
1 Motor Assembly
4
1 Funnel Plate
5
1 Spinner Plate Assembly
6
1 Spinner Bracket
7
2 Front Right and Rear Left Legs
8
2 Front Left and Rear Right Legs
2 Leg Braces
2 Front Skids
2 Rear Skids
1
2
3
4
5
6
7
8
9
9
10
10
11
11
8
7
Component Pack Contents:
Part Contents:
350 & 600 LB Corn Feeder Parts Card
M6 x 15 mm Bolt - 1 pc
Washers - 2 pcs
Rubber Washer - 1 pc
M6 Lock Nut - 1 pc
M6 x 75 mm Hex Bolts - 4 pcs
Washers - 8 pcs
M6 Lock Nuts - 4 pcs
M6 x 8 m Bolts - 4 pcs
M6 x 15 mm Hex Bolts - 16 pcs
Washers - 16 pcs
FDR0350AS & FDR0600AS
M6 x 12 mm Hex Bolt - 1 pc
M6 x 15 mm Hex Bolts - 4 pcs
Washers - 8 pcs
M6 Lock Nuts - 4 pcs
M6 x 50 mm Hex Bolts - 4 pcs
Washers - 8 pcs
M6 Lock Nuts - 4 pcs
M6 x 12 mm Hex Bolts - 4 pcs
Washers - 4 pcs
M6 x 12 mm Hex Bolts - 2 pcs
For missing parts, please call Customer Service at 855-735-9922
9
10
11
