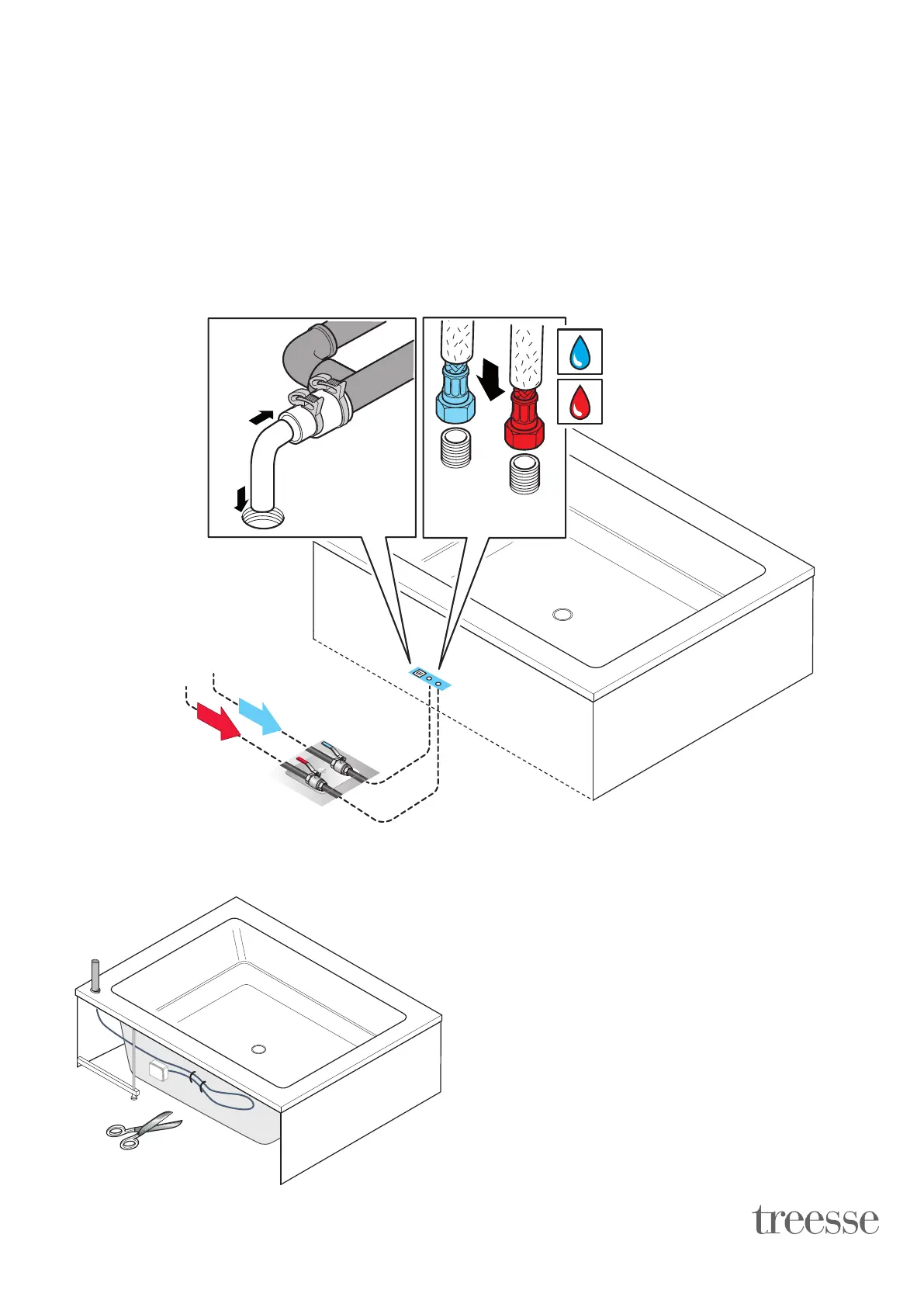

INDICATIVE EXAMPLE OF HYDRAULIC PREINSTALLATION OF A BATHTUB
* The pictures are indicative only: the model and the type must be chosen by the plumber based on
water characteristics and DHW system features.
Connection to the bathtub using the
female 1/2 inch hoses supplied.
Connect the bathtub drain to the
floor. The plumber must choose
the type of materials to be used
and carry out the necessary
checks to ensure compliance with
antipollution standards.
Gate valves: stop the
water flow.
If the tub features a
hand shower,
release the hose from the relative
retainers.
_HYDRAULIC CONNECTIONS
