Trek Domane SL - IsoSpeed

2023 Domane SL/SLR
14

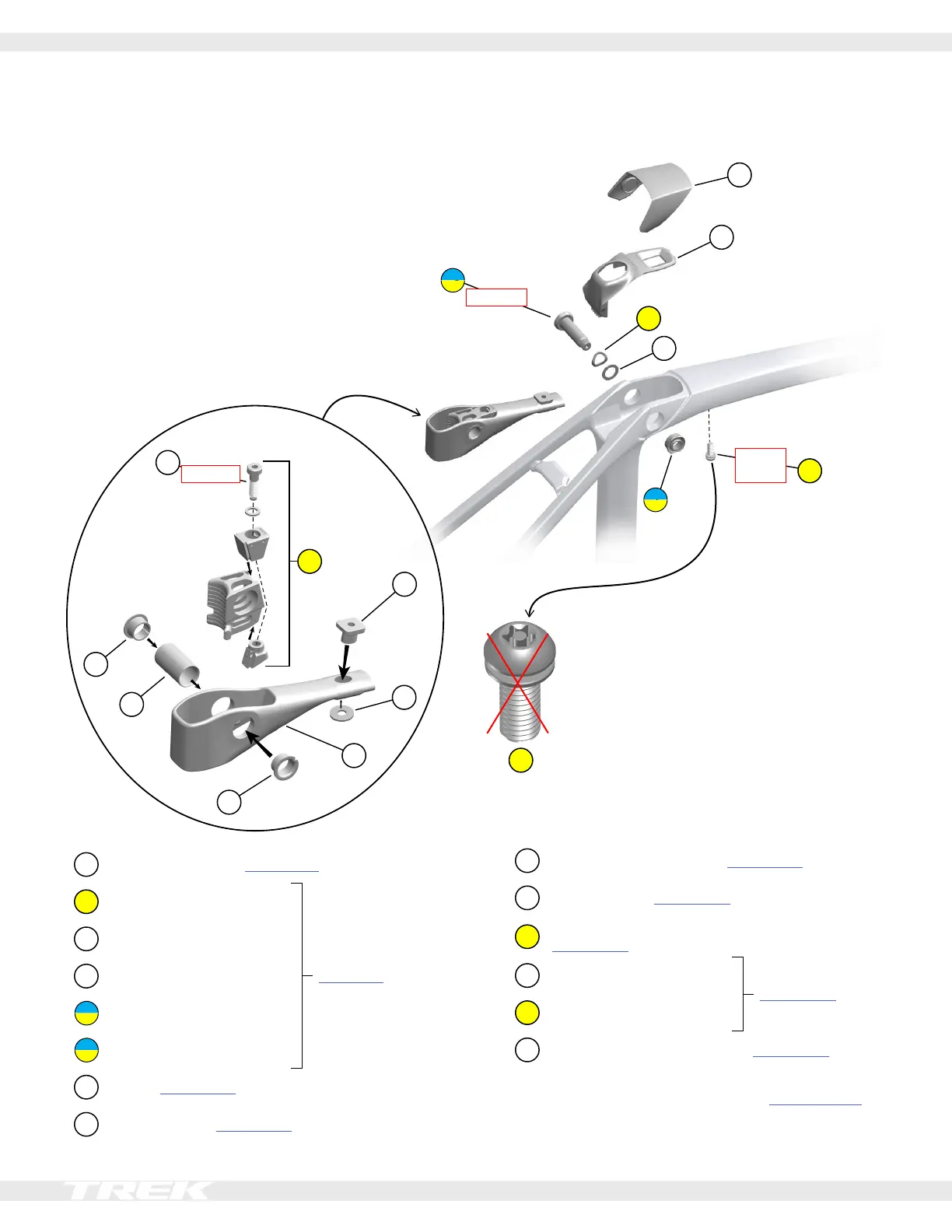

IsoSpeed
NOTICE: Do not perform routine maintenance on the IsoSpeed. Only service IsoSpeed hardware if you are replacing parts or
torquing the pivot bolt (5).
9
10
2
3
11
10.5 Nm.
6.8
Nm.
12
5.2 Nm.
7
1
1
4
13
8
14
5
6
DO NOT REMOVE: Do not remove this bolt
(11) unless you are servicing the IsoSpeed or
replacing parts. It secures the IsoSpeed tongue
(14).
11
1
Flanged bushings — W5256074
2
Wave washer (M10)
5296536
3
Washer (M10)
4
Cylindrical bushing
5
Pivot bolt (M10)
6
Nut (M10)
7
T-nut – W5260276
8
Washer (M6) – W5260277
9
*IsoSpeed cover (black) — W5297965
10
Wedge cover — W5269805
11
Bolt, T25 tamper-resistant (M6x16 mm) –
W5280089
12
Bolt (M6x22 mm)
W5275256
13
Wedge assembly parts
14
IsoSpeed tongue (44-47cm) — W5284403
*This is a colour-matched part – search trekbikes.com to
nd the right colour for your bike.
