IsoSpeed: remove parts
NOTICE: Do not perform routine maintenance on the IsoSpeed. Only service IsoSpeed hardware if you are replacing parts.

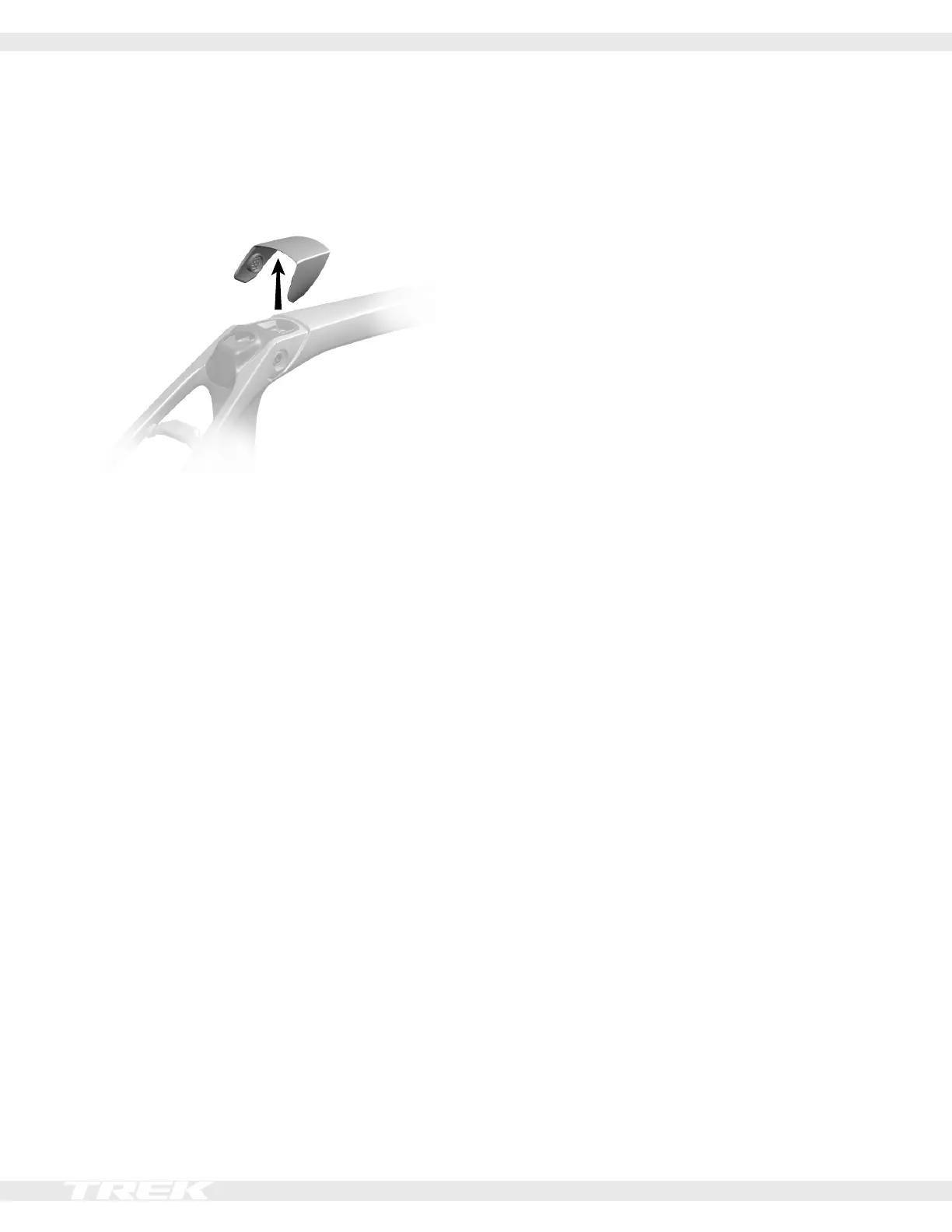

1. Remove the assembly cover (9).
NOTICE: Use your ngers to remove the cover. Do not
use a tool or you could scratch the paint.
2. Remove the pivot bolt (5), washers (2, 3) and the nut
(6).
NOTICE: Do not continue removing the pivot bolt (5)
if the nut rotates (6) – this could damage the frame
pockets. If necessary, use a shim to hold the nut (6)
in place while removing the pivot bolt (5).
3. Remove the rest of the IsoSpeed parts as shown on
page 14.
