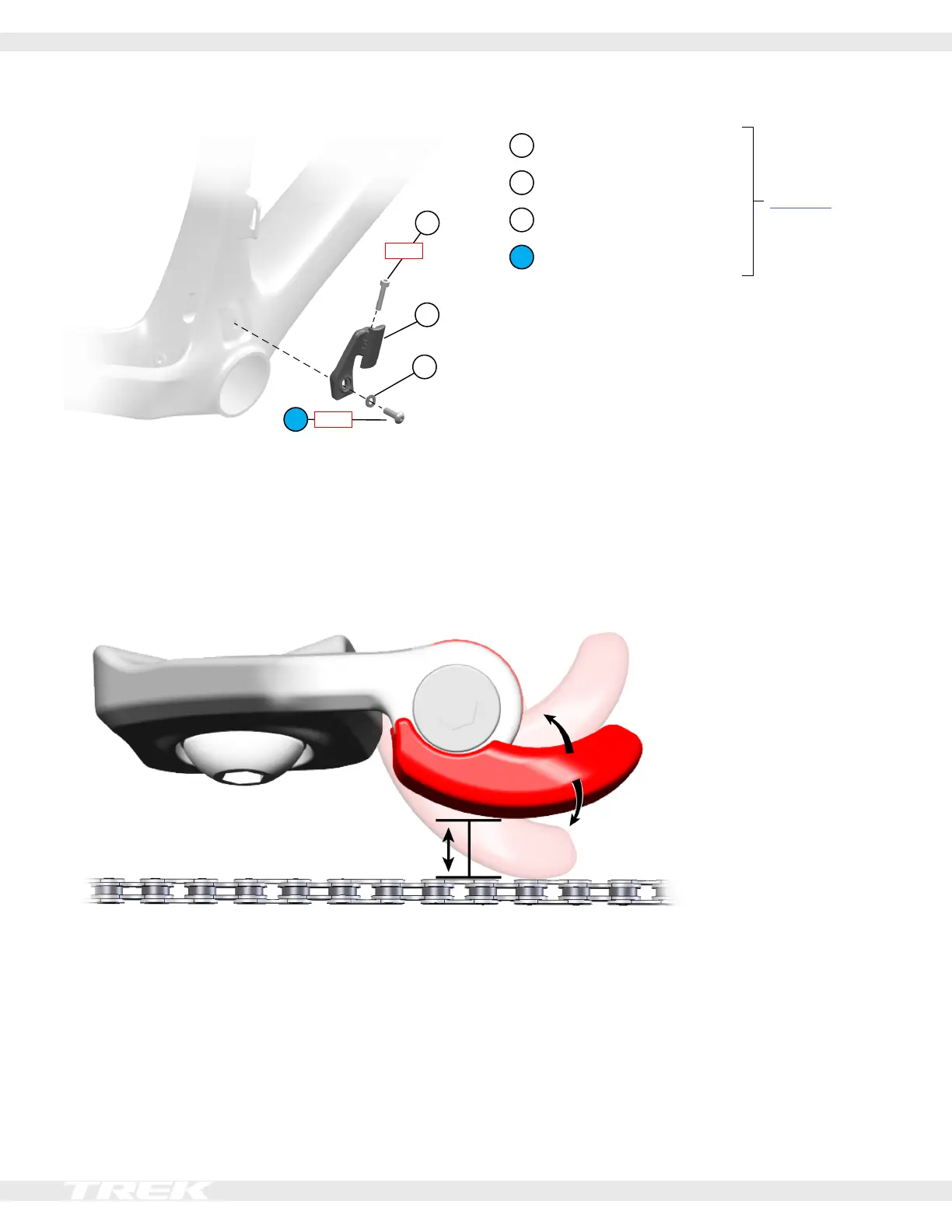

Trek Domane SL - Chainkeeper; Adjust the chainkeeper

2023 Domane SL/SLR
17
Chainkeeper
3
1
1 Nm.
2
4
3 Nm.
1
Bolt (M4x22 mm)
5305773
2
Chainkeeper
3
Flat washer (M5x10 mm)
4
Bolt (M5x16 mm)
Adjust the chainkeeper
1. Shift to the lowest gear (largest rear cassette cog) and inner chain ring.
2. Loosen the bolt (1) on the chainkeeper.
3. Rotate the loose piece (shown in red below) so there is 1 mm of horizontal clearance to the chain.
1 mm
4. Tighten the bolt (1) to 1 Nm.
