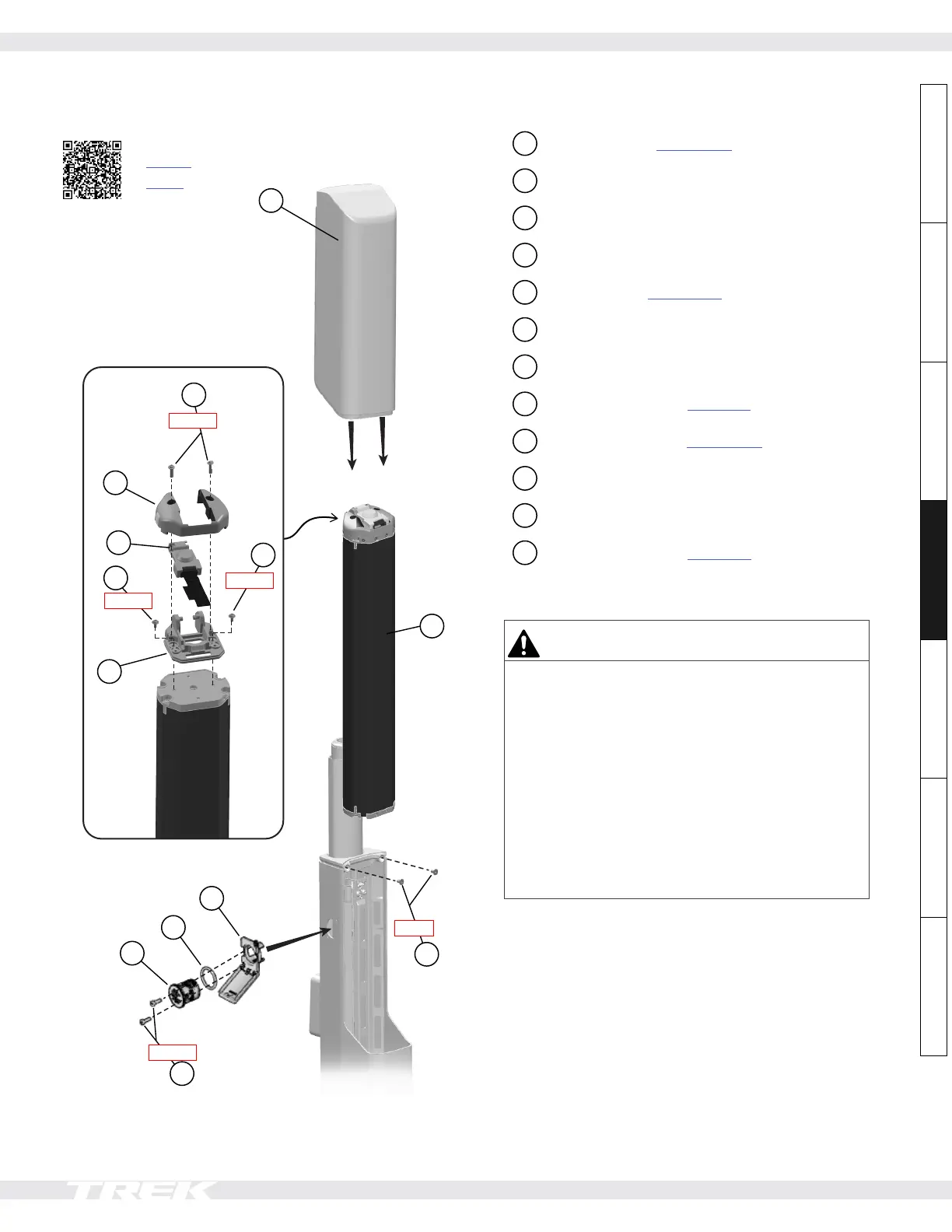

Battery: lock, cover, and charge port
12
13
1.5Nm
14
15
1.2Nm
16
17
18
19
3Nm
20
21
22
23
1.5Nm
15
1.2Nm
12
Battery cover — W5257032
13
Bolts, T15 (M3.5x12mm) — *EB12.100.01G
14
Cover — *EB12.100.01A
15
Bolts, T15 (M3x7mm) — *EB12.100.01G
16
Battery lock — W5277876
17
Locking assembly — *EB12.100.01D
18
PowerTube 750W battery — *EB12.100.00X
19
Bolts (M5x10mm) — 5272902
20
Charge port cover — W5251862
21
O-ring — *EB12.120.019
22
Charge plug — *EB12.120.04B
23
Bolts (M3x10mm) — 5284849
*Bosch part numbers are not available on
Trekbikes.com.
WARNINGS: BATTERY USE
• A short circuit in the electric system and/or
damage to the battery might lead to over-heating.
In an extremely rare case, a battery that has been
severely impacted could potentially catch re.
• Only charge the battery with a Bosch smart system
charger. Using the wrong charger risks the life of
the battery and presents a potential re hazard.
• Only use the charger in dry, indoor areas.
• Do not leave a charging battery unattended.
• When the battery is fully charged, disconnect the
charger from the battery and wall socket.
