Trek Fetch+ 4 - Page 26

2023 Fetch+ 4
23
Steering Dr ivetrain Routing Battery Headsets Frame Accessor ies
Frame: front cover
8Nm
9
1
5Nm
1
5Nm
2
2
4
3
5
5
6
7
7
2
8
8

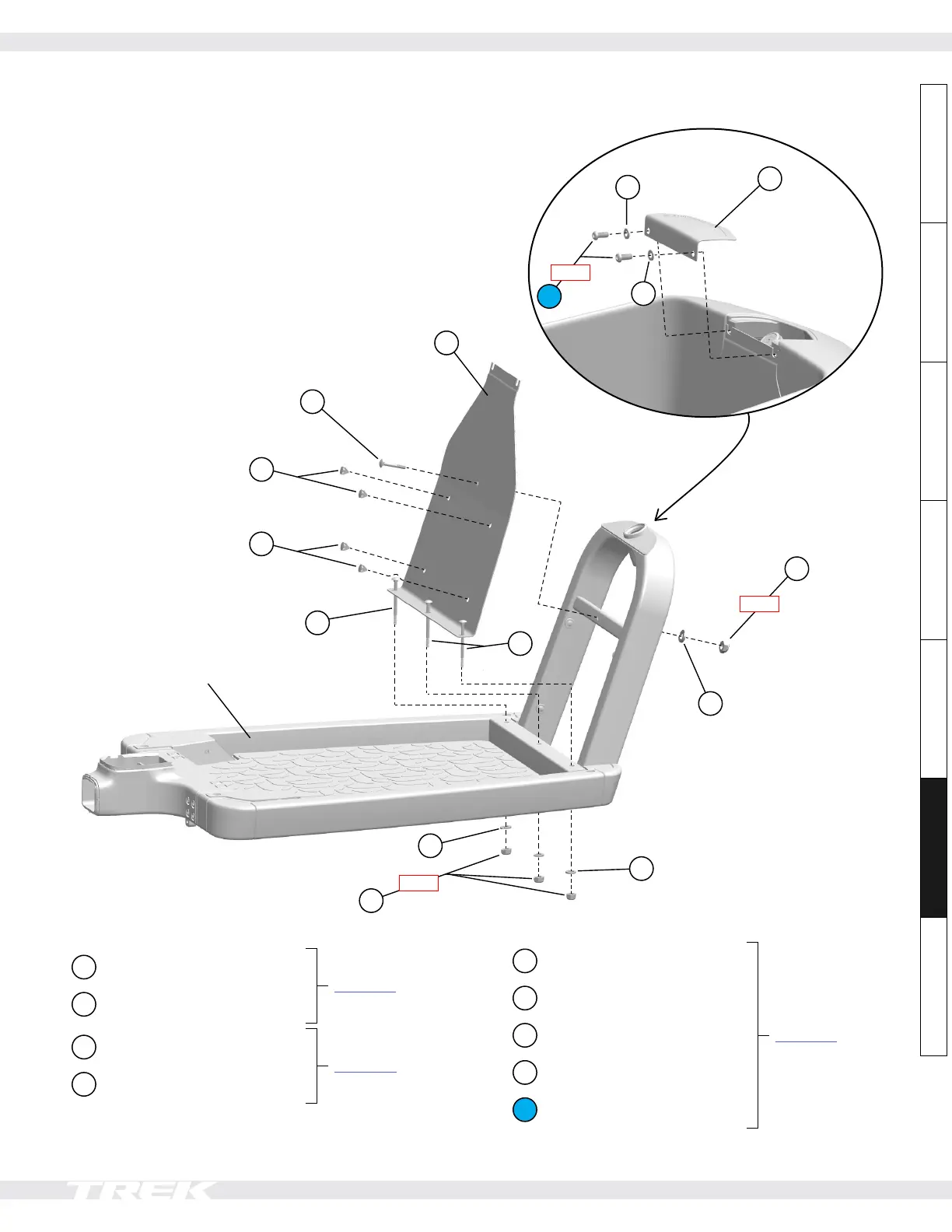

Front frame
1
Nuts (M6)
5284748
2
Washers (M6)
3
Front cover
5280797
4
Headset lid
5
Hole covers (M8)
5284749
6
Bolt (M6x50mm)
7
Bolts (M6x90mm)
8
Washers (M8)
9
Bolts, T40 drive (M8x20mm)
