2023 Fetch+ 4
25
Steering Dr ivetrain Routing Battery Headsets Frame Accessor ies

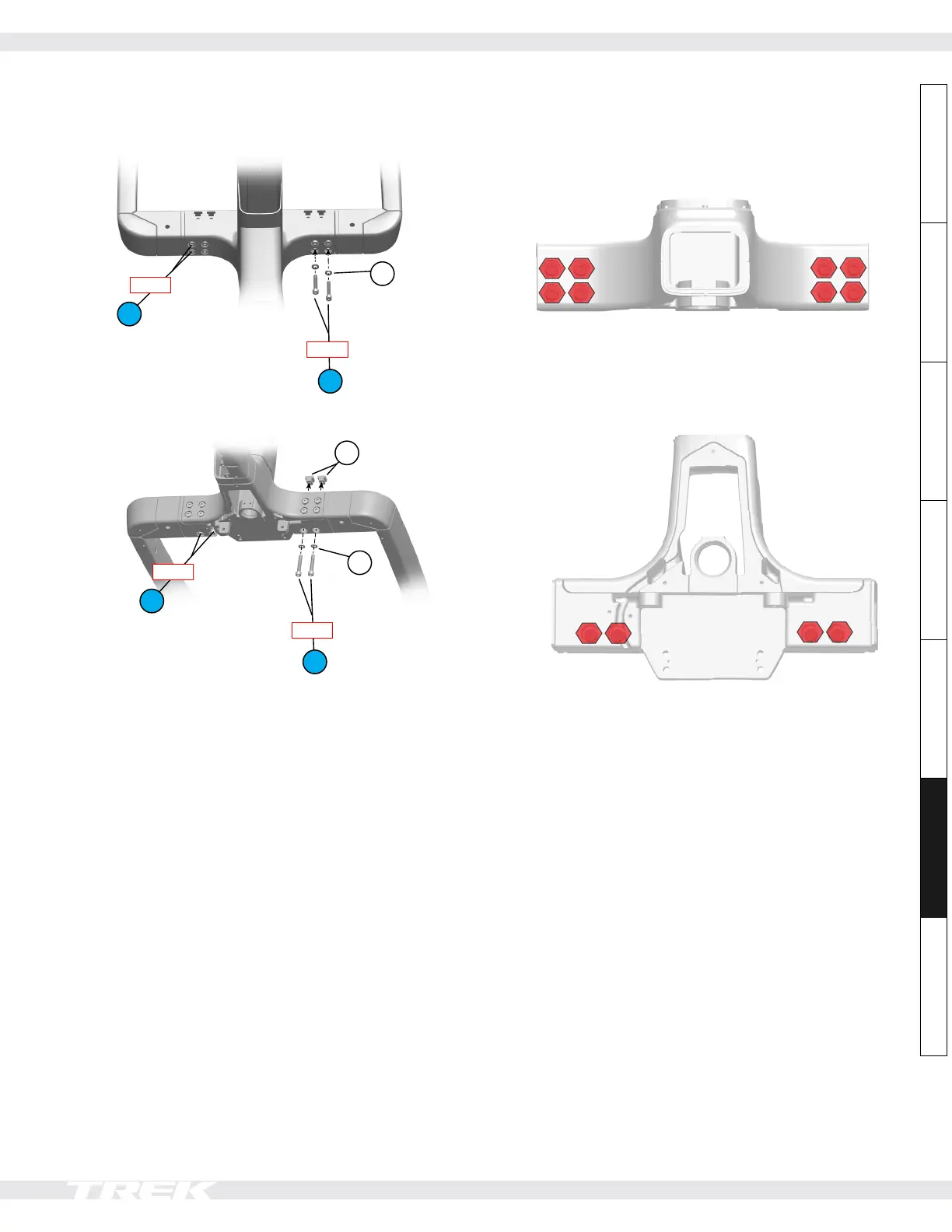

Frame: frame tightening sequence
1. Tighten the eight horizontal bolts to 5Nm.
2
3
5Nm
3
5Nm
2. Tighten the four vertical bolts to 5Nm.
2
3
5Nm
3
5Nm
1
3. Fully tighten the eight horizontal bolts — in an X
pattern — to 18Nm in the order shown below.
Top
1 4
3 2
8 5
6 7
Bottom
4. Fully tighten the four vertical bolts — outside rst — to
18Nm in the order shown below.
4 3
1 2
Rear
Front
