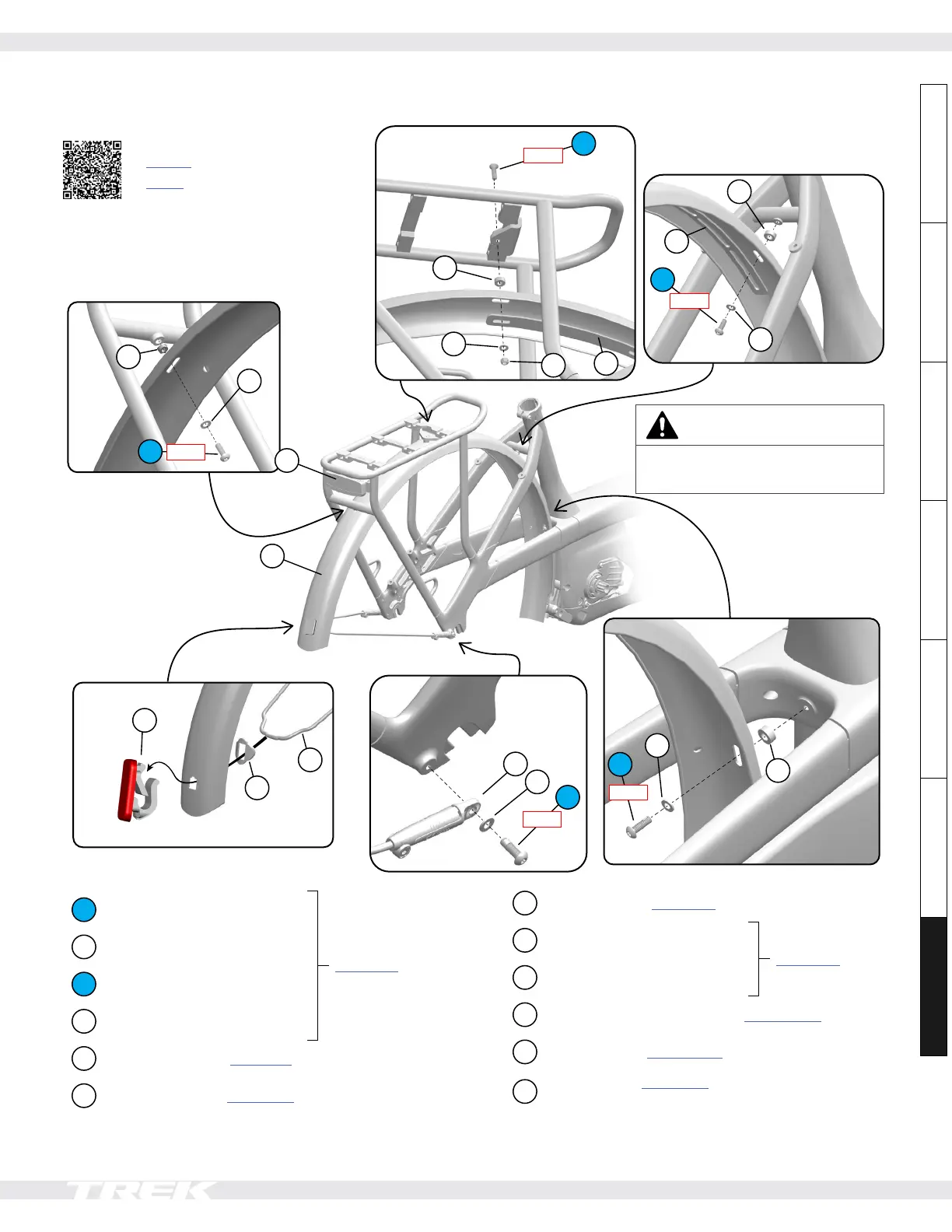

Accessories: rear fender and light
4Nm
1
2
4Nm
1
4Nm
1
4Nm
1
2
2
2
2
4Nm
3
5
5
5
4
6
6
8
9
10
11
5
12
7
WARNING
Reapply threadlocker — see
warning on page ii
1
Bolts, T25 drive (M5x16mm)
5284754
2
Washers (M5)
3
Bolt (M5x18mm)
4
Nut (M5)
5
Spacers (5mm) — 5307541
6
Strut (380mm) — W600320
7
Stay mounts — 5258260
8
Stay holder
5258253
9
Stay damping rubber
10
Fender stay (27.5”x65mm) — W5269996
11
Rear fender — W5269618
12
Rear light — *W504513
*Replacement part is different than the original
