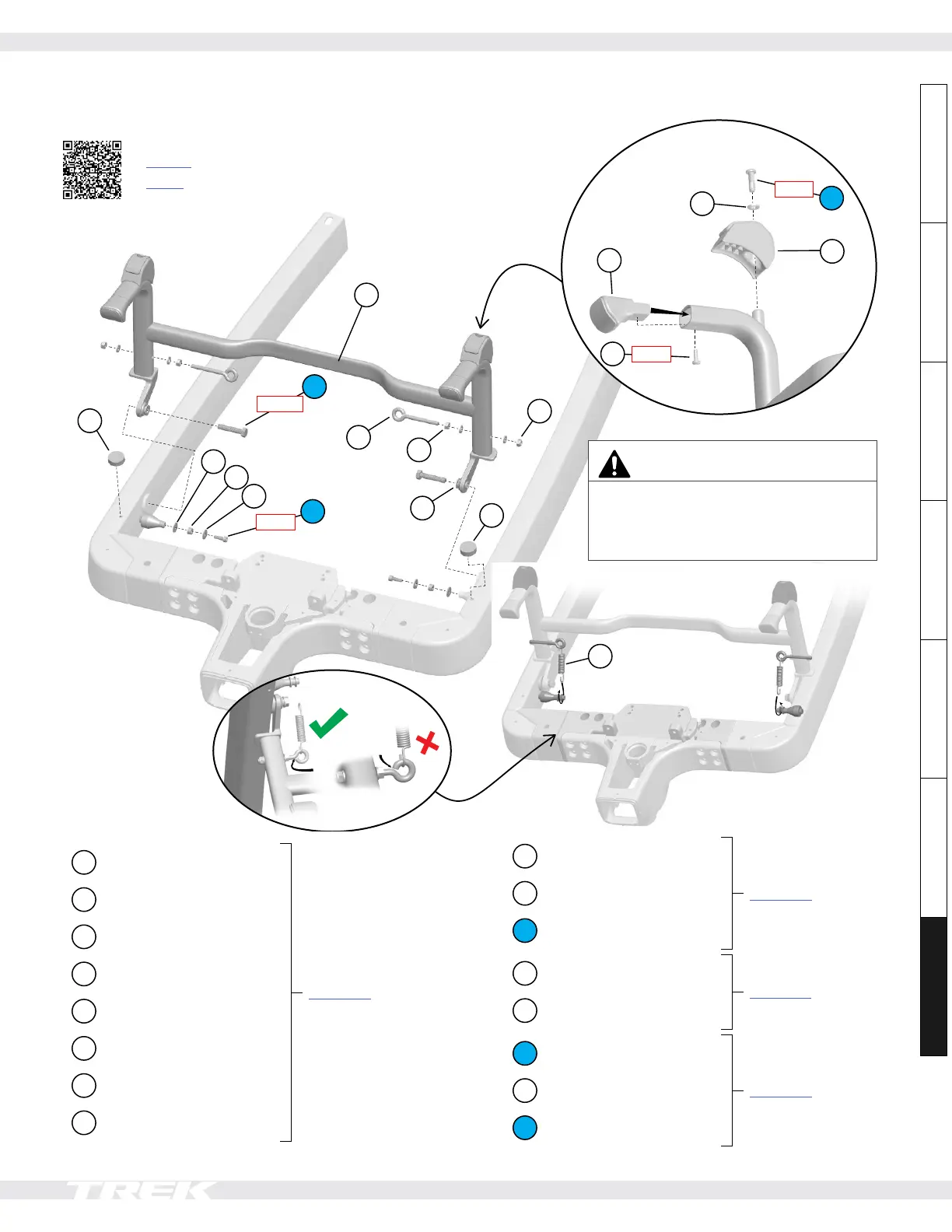

Trek Fetch+ 4 - E-System Quick Start

2023 Fetch+ 4
29
Steering Dr ivetrain Routing Battery Headsets Frame Accessor ies
Accessories: kickstand
2
1
3
4
5
6
7
8
9
10
5Nm
11
12
1Nm
13
15
15
4Nm
14
6
12Nm
16
CAUTION
The kickstand is spring-loaded and can
snap shut on you, causing injury. Either tie
off the kickstand or be careful not to get
caught in it.
1
Kickstand
5280791
2
Bearings
3
Eye bolts (M6x65mm)
4
Nuts, nylock (6mm)
5
Nuts (6mm)
6
Threaded bumper
7
Spacers (6mm)
8
Springs — 5291884
9
Washers (M6)
5288121
10
Knee
11
Bolts (M6x20mm)
12
Bolts (M3.5x15mm)
5291301
13
Foot
14
Bolts (M5x16)
5280791
15
Washers (M5), oversized
16
Bolts (M8x40)
NOTE: Replace the springs (8) every two
years.
Click
here
Or
