TREND IQView8 - Physical Specifications and Mounting; Panel Mounting; Surface Mounting Box; Dry Partition Wall Box

2 IQView8 Installation Instructions TG201232 Issue 2, 01-Aug-2012
IQView8/ Installation Instructions
5

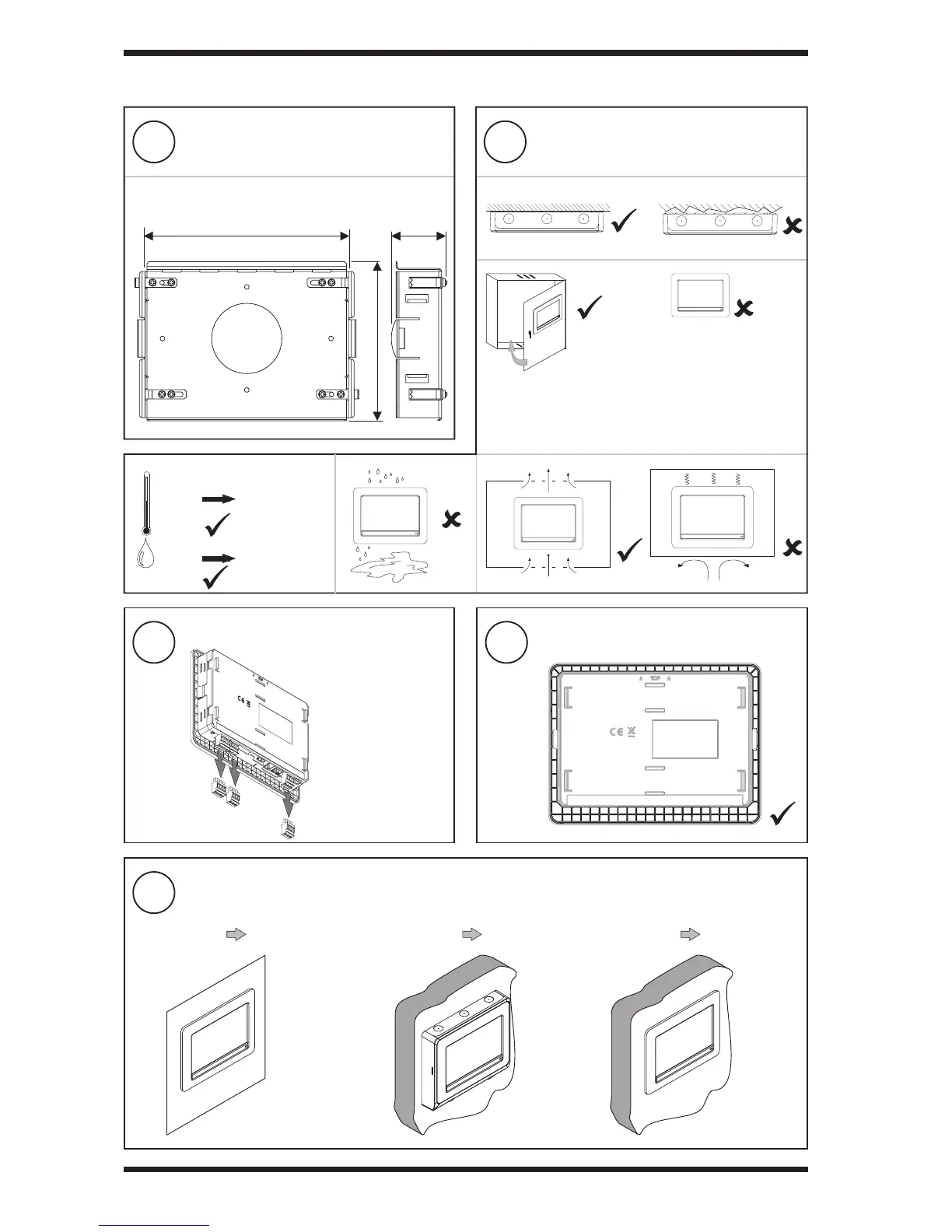

Select Mounting Method
3
Remove Connectors
1
Dimensions (continued)
2
Mounting Requirements
4
Check Gasket is in Position
3.1 Installation- Mounting (continued)
If panel mounting
step 6 If surface mounting section 3.2 If in wall mounting section 3.3
+60 °C
(+140 °F)
-10 °C
(+14 °F)
Unit is UL rated as ‘UL916 listed open energy management
equipment’.
HO
2
0 %RH
85 %RH up to 40
°C (104 °C)
220 mm (8.66")
60 mm (2.36")
170 mm (6.7")
IQVIEW8 DRY PARTITION WALL BOX (In Wall Mounting)
Important: Keep connectors
Operating Altitude: <2000 m (6562’)
