CaterSense the Intelligent answer
CS-INSTV2-0.01 Page 11 01-15
Model: CaterSense V2

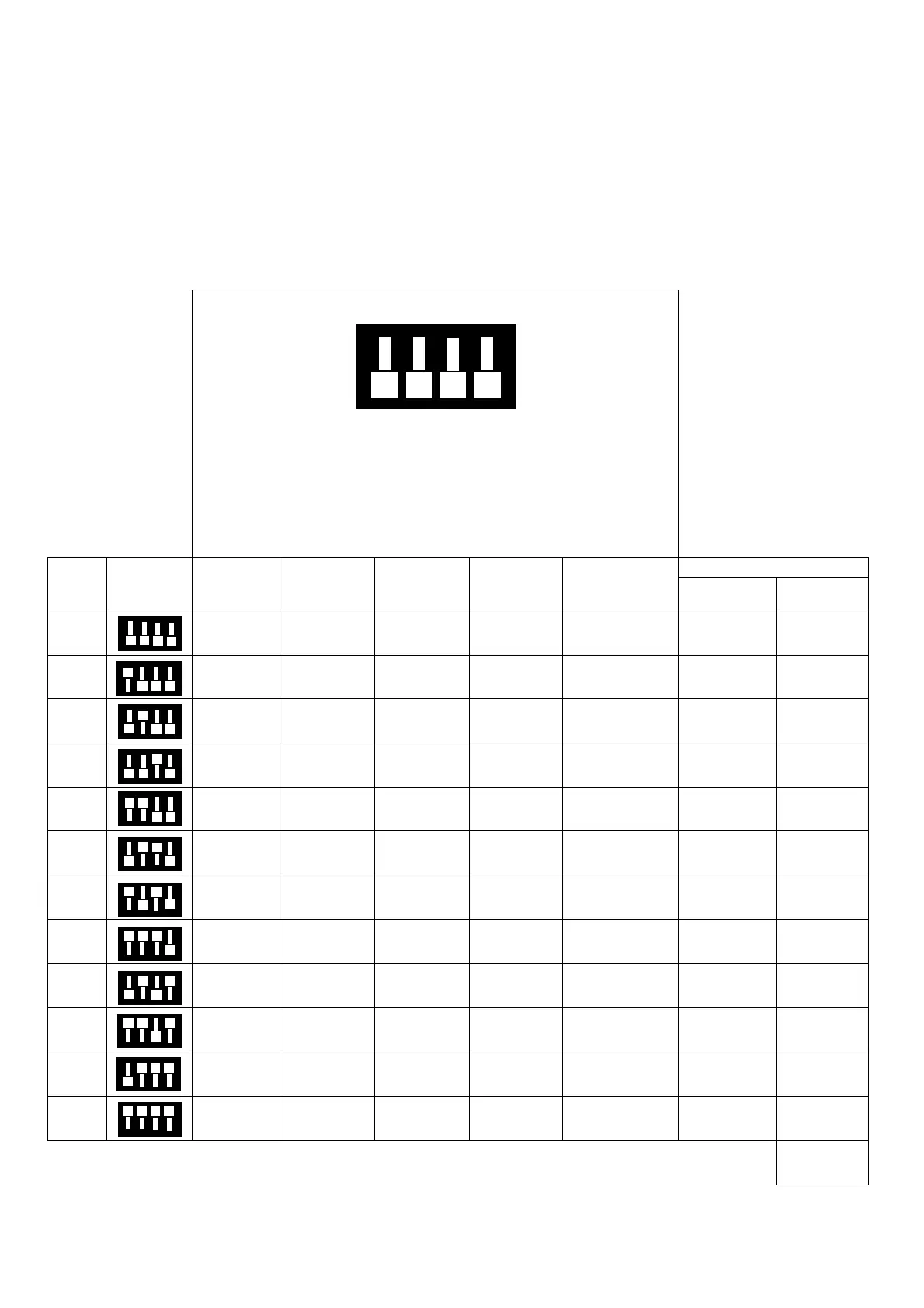

a) DIL (DIP) switch set-up
Ensure the correct system code has been selected on the DIL switch.
IMPORTANT: Ensure power supply is switched OFF before adjusting DIL mode
switch
*Please note – If using manual or step transformer speed controllers,
ensure that DIL (DIP) switch 2 is in the disabled position.
1 2 3 4
Enable
Disable
DIL 1 Is used to enable or disable Gas Pressure Proving
DIL 2 Is used to enable or disable Automatic Fan Speed Control
DIL 3 Is used to enable or disable CO2 Monitoring
DIL 4 Is used to enable or disable System Demand
MODE
DIL (DIP)
position
Fan Start /
Stop
Gas
pressure
proving
Automatic
fan speed
control
CO2
Monitoring
System
Demand
Heater battery control
LPHW only
Electric /
Gas fired
1
N/A
Enable with
jumper J21
2
N/A
Enable with
jumper J21
3
Enable with
jumper J21
4
N/A
Enable with
jumper J21
5
Enable with
jumper J21
6
Enable with
jumper J21
7
N/A
Enable with
jumper J21
8
Enable with
jumper J21
9
Enable with
jumper J21
10
Enable with
jumper J21
11
Enable with
jumper J21
12
Enable with
jumper J21
See Page 13
