CaterSense the Intelligent answer
CS-INSTV2-0.01 Page 20 01-15
Model: CaterSense V2

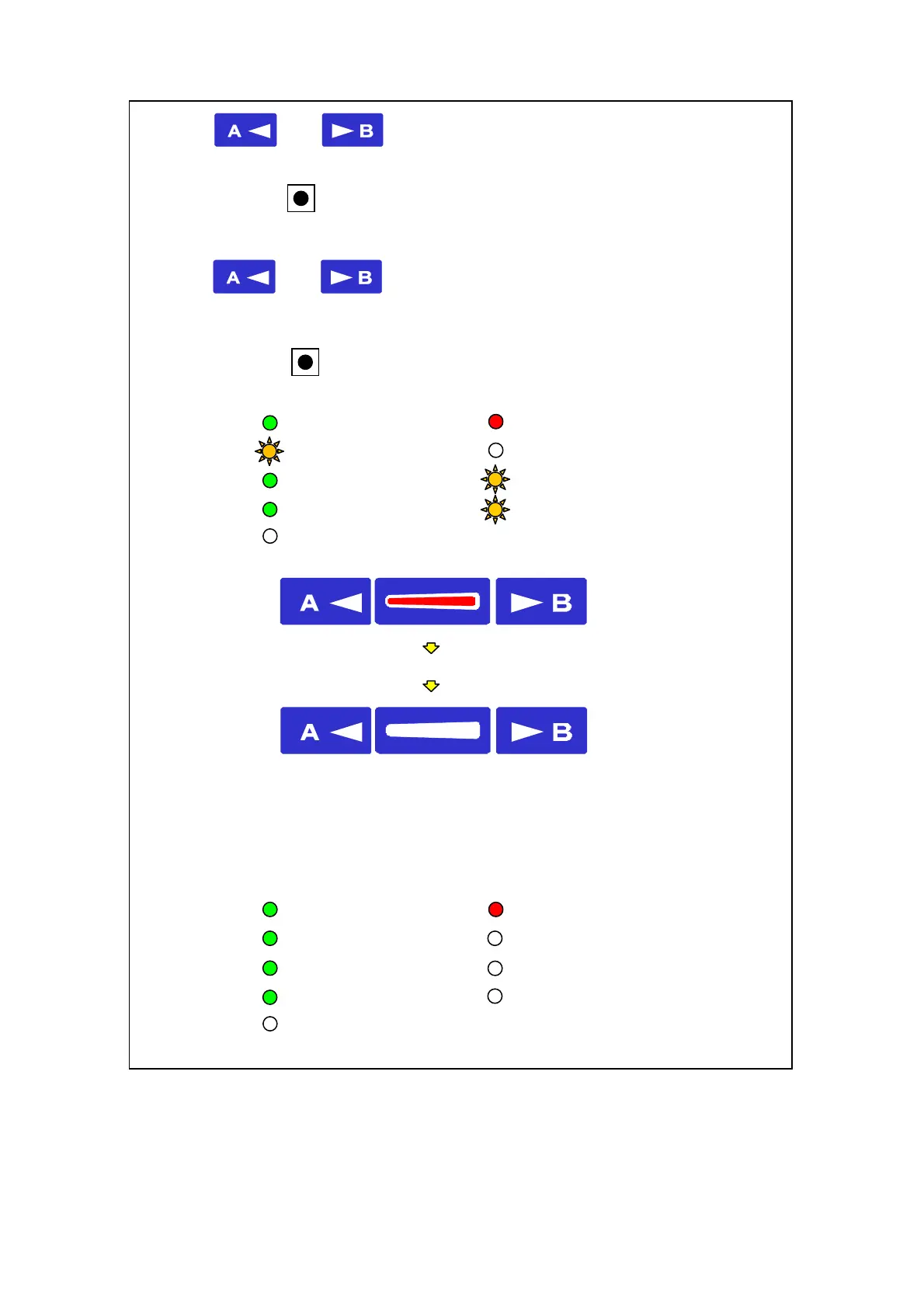

Using the and pads and a multi-meter between terminals 13 and 14
you can now set the maximum speed for fan 1 to 10 VDC.
If you are using two fans you will need to repeat the above procedure for the second fan.
Using the and pads in conjunction with the min and max pots in the
electronic speed controller ensure that the system has been correctly balanced, and you have
correctly set the minimum and maximum speeds for each fan.
The system will produce a short beep. The CaterSense will slowly reduce the speed of the
fans to establish the characteristics of your system. DO NOT INTERRUPT THIS PROCESS.
After approximately two minutes, the system will have fully recorded the running currents of
your fans. If you have an electric or gas fired heater battery connected, the fans will run on
for a further 5 minutes. Otherwise, the fans will stop straight away.
PRESS SETUP
PRESS SETUP
POWER ON GAS VALVE
SYSTEM CONDITION GAS PRESSURE
REMOTE KNOCK OFF FAN 1
FIRE ALARM FAN 2
CO2 MONITORING
POWER ON GAS VALVE
SYSTEM CONDITION GAS PRESSURE
REMOTE KNOCK OFF FAN 1
FIRE ALARM / THERMAL FAN 2
FAN SPEED
DOWN
DOWN
To Next Page
