IP 330 TV

• Normal ConditionInsert IP 330 TV into TV’s HDMI input interface. Connect IP 330 TV’s

mini USB port to TV’s USB port via USB supply line for power supply. (*ATTENTION:Make

sure the USB power supply can offer 5V/1,5A. If not, please use a 5V/1,5A output AC adapter )

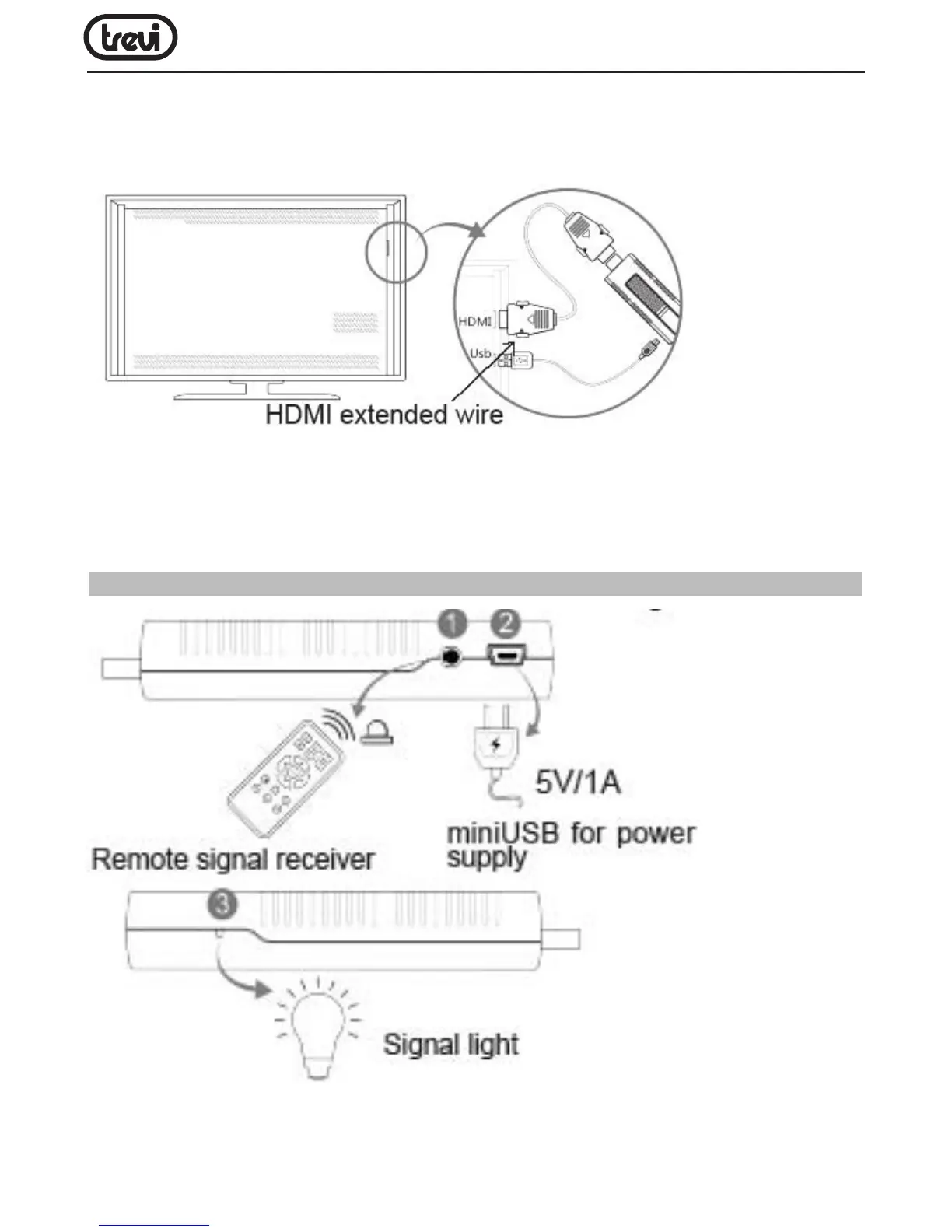

• Connected Condition ( NO ENOUGH SPACE FOR IP 330 TV AROUND THE TV’S HDMI

INPUT INTERFACE). Connect IP 330 TV to TV’s input interface needs to add another HDMI

extended wire.

INTERFACE
