CONTROL AND THEIR FUNCTIONS RECEPTION NOTE
For FM reception pull out the Rod antenna (1)
adjust the direction, lenght and angle to give the
best reception.
The AM band antenna is internal so to improve the
reception orient the device.
PHONE JACK
For private listening connect a headphones (not
1
included) with a 3,5 mm plug with an impedance
from 4 to 32 ohm to the Phone jack (6). The built-in
speaker will automatically disconnected.
9 6

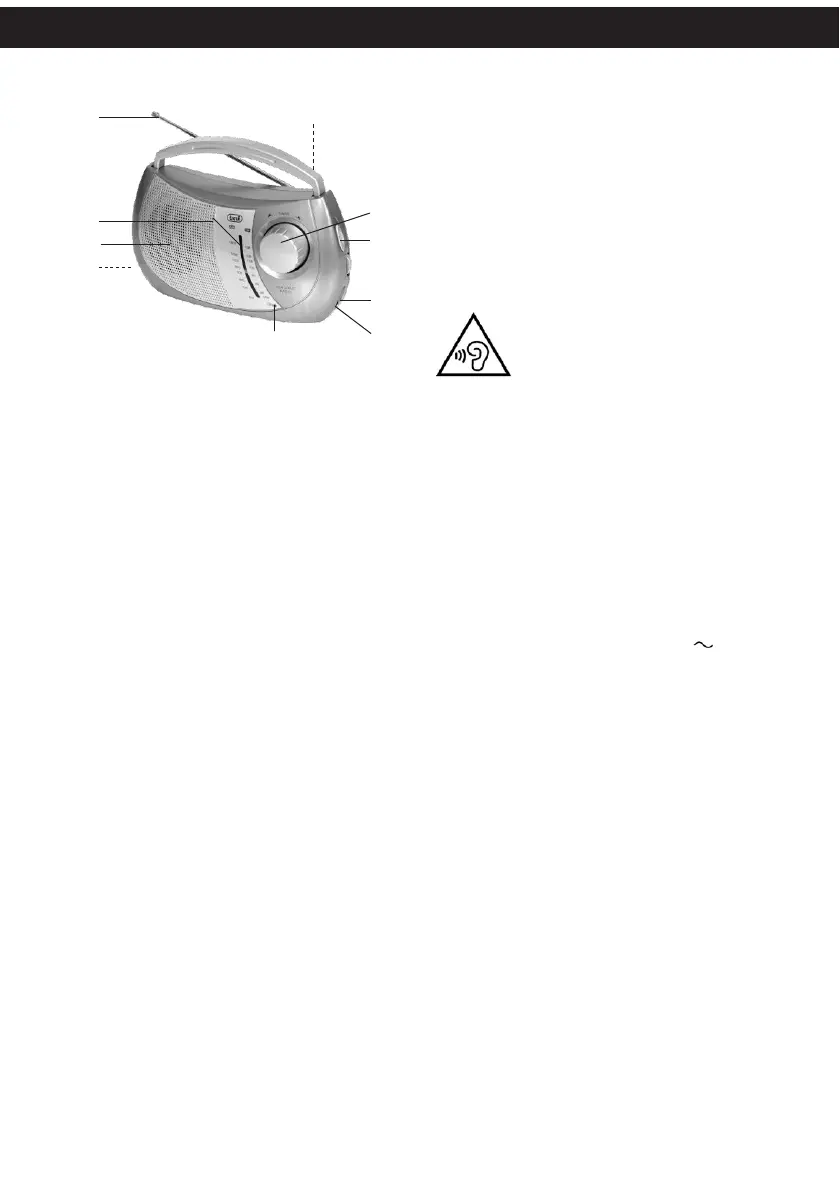

1.
Rod antenna
2.
Dial scale
3.
Tuning knob
4.
Band switch AM/FM
5.
Volume knob / ON-OFF knob
6.
Phone jack
7.
AC socket
8.
Battery compartment door
9.
Radio ON indicator
10.
Speaker
AC POWER OPERATION
Connect receptacle end of the mains lead to the
AC socket (7). Connect the plug to an AC outlet.
The connection of the mains lead to the AC socket
(7)
cause the disconnecting of batteries supply.
BATTERY POWER OPERATION
Install 4 x “C” batteries into the battery campartment
(8)
on the backside of the device, carefully as indi-
cated in the battery compartment.
Remove the batteries when don't use the device
for a long time.
OPERATION
1.
Turn the Volume knob / ON-OFF knob (5)
clockwise until you listen a click sound, the
radio turns on.
2.
Select the desired radio band with the Band
switch (4):
FM = frequency modulation
AM = media wave
3.
Tune in a desired station by tuning the Tuning
knob (3).
4.
Adjust the Volume knob / ON-OFF knob (5) for
your desired listening level.
To prevent possible hearing damage, limit the
amount of time listening at high volumes
MAINTENANCE
This device is a high precision electronic instru-
ment; so it's recommended to not place the radio
set near sources of heat, in humid or dusty places,
nor expose it directly to the sunlight.
Clean the radio with a damp cloth. Using detergents,
abrasives or solvents may damage the radio set.
NOMINAL SPECIFICATION
Power sources: 230V 50Hz
DC6V [4x"C"(UM2)(bateries not included)
Pwer output: 500mW RMS
Frequency range: FM 88-108MHz
AM 540-1600KHz
Dimensions: 207x110x162mm
Weight: 0,50Kg
TREVI pursues a policy of continuous research
and development. Therefore the characteristics of
the product can differ from those in the description.
