TriangleTube SMART 80 - Fig. 27 - SMART Dimensions - Top View

27
CHAPTER 7
E
F
CHAPTER 7 - WATER HEATER SPECIFICATIONS AND PERFORMANCES
SMART
Model 30 40 50 60 80 100 120
Capacity Gal.
Domestic 28 36 46 56 70 95 119
Boiler 5 6 8 8 14 25 43
Heating Surface Sq. Ft. 13 16 20 24 28 36 42
Head Loss Boiler Side Ft.
3/4 1 1 1/4 1 1/2 2 2 2 1/2
Piping Connections Inches
Domestic Ø 3/4 3/4 3/4 3/4 1 1/2 1 1/2 1 1/2
Boiler Ø 1 1 1 1/4 1 1/4 1 1/2 1 1/2 2
Auxiliary Ø
3/4 3/4 3/4 3/4 1 1/2 1 1/2 1 1/2
Dimensions Inches
A 38 46 57 66 61 78 72
B
9 9 9 9 10 10 10
C 30 38 49 58 50 1/2 68 64
D 22 22 22 22 26 26 32
E 14 14 14 14 10 1/2 10 1/2 10 1/2
F 6 6 6 6 10 1/2 10 1/2 5
Dry well length Inches 25 29 37 47 47 51 51
Empty weight Lbs. 115 135 165 190 271 362 479
Thermostat and
Cover Plate
Air Vent

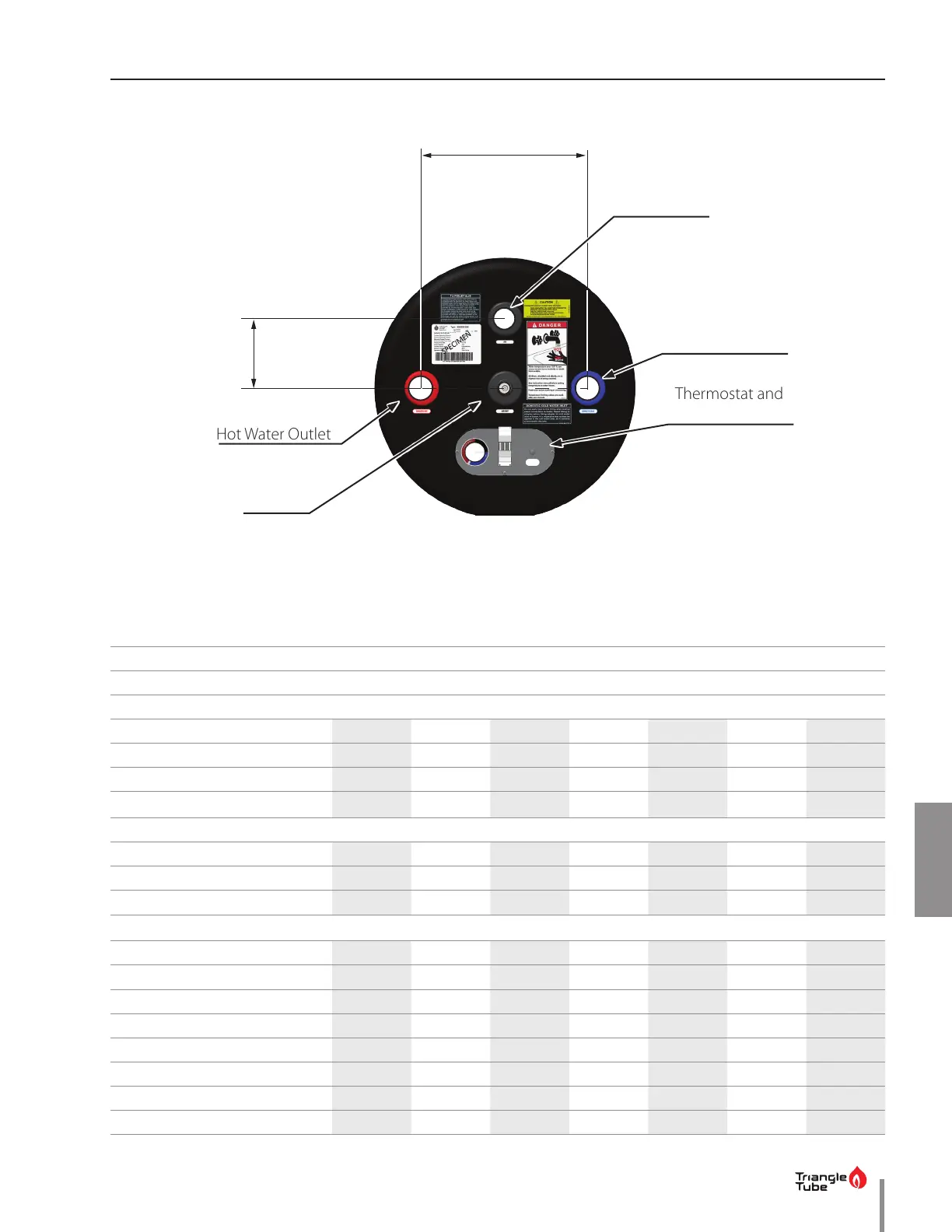

Fig. 27 - SMART Dimensions - Top View
Table 2 - SMART Water Heater Specications
Cold Water Inlet
Hot Water Outlet
Auxiliary
Connection
