Model Item no.
TRIAX IFA 284 339284
TRIAX IFA 288 339288
Version 891884B 01 - 2016 EN, DK, FI
Installation and user Instructions
TRIAX IFA 284/288
Radio/TV Distributionamplier with Active Returnpath
Type IFA 284 IFA 288
Art. No. 339284 339288
HF-Input, F-connector, female Styk 1 1
HF-Output (F-female with automatic termination) Styk 4 8
Frequency response - input MHz 87-1006
Frequency response - return MHz 5 - 65
Amplication - input dB 12.0
Amplication - return dB -1.0
Attenuation (3-point switch) dB 0 / 6 / 12 *
Tilt (3-point switch) dB 0 / 6 / 12 *
Frequency path, linearity dB ± 1.0
Noise gur dB < 7.0
Reflection attenuation (@40MHz, -1.5dB/Octave) dB > 18.0
Maximum output level dBµV 92.0
Input Level dBµV 60...78
Isolation (Output-Output) dB > 40.0
Impedance Ω 75
Operating conditions
Type of power supply Switch mode
Power supply (built-in) VAC/Hz 100 - 240 / 50...60
Power consumption W 3.1
Operating Temperature Range °C -10 ~ +40
Dimensions W x H x L mm 255 x 53 x 110
Security Class II
Ingress rating IP 20
Weight kg 0.650
Technical data
TRIAX IFA 284/288

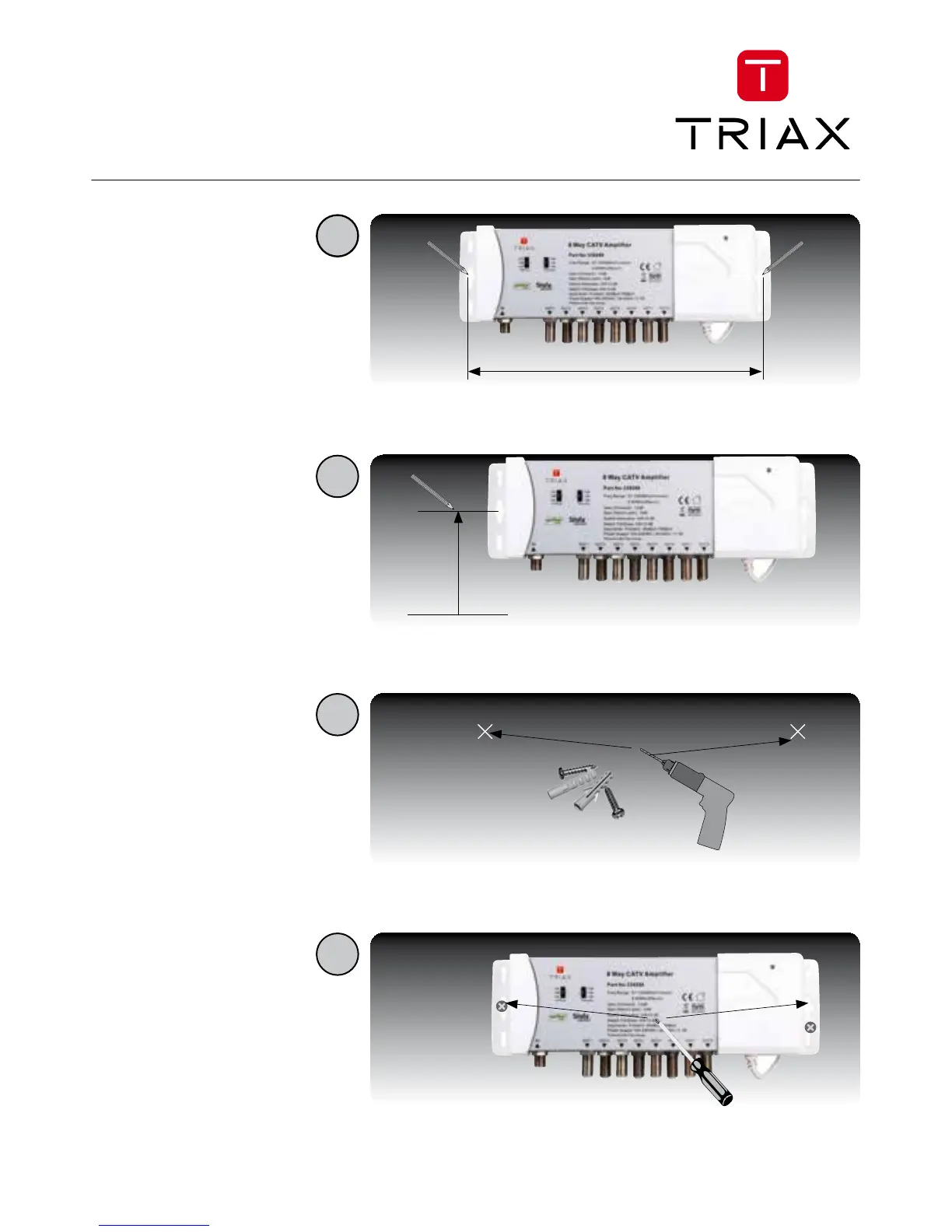

Distance between screws: 230 mm, use 3 mm Ø screws.
Skrueafstand: 230 mm, benyt 3 mm Ø skruer.
Ruuvien etäisyys toisistaan: 230 mm, käytä 3 mm Ø ruuveja.
Drill the pre-marked holes. Use the included screws and wall plugs
Bor hullerne op. Monter de medfølgende skruer og rawlplugs
Poraa reiät merkittyihin kohtiin. Käytä mukana tulevia ruuveja ja proppuja.
Attach the amplier with two 3 mm Ø screws.
Fastgør forstærkeren med to styk 3 mm Ø skruer.
Kiinnitä vahvistin kahdella 3 mm Ø ruuvilla
1a
Mounting
Montage
Asennus
1b
1c
1d
Distance from skirting board/floor: 120 mm
Afstand fra fodliste/gulv: 120 mm
Etäisyys jalkalistasta/lattiasta: 120 mm
230 mm
120 mm
Floor / Gulv / Lattia
triax.com/support
For further information
and updated manuals go to
triax.com
