Triax IFA288 - Signal out

6

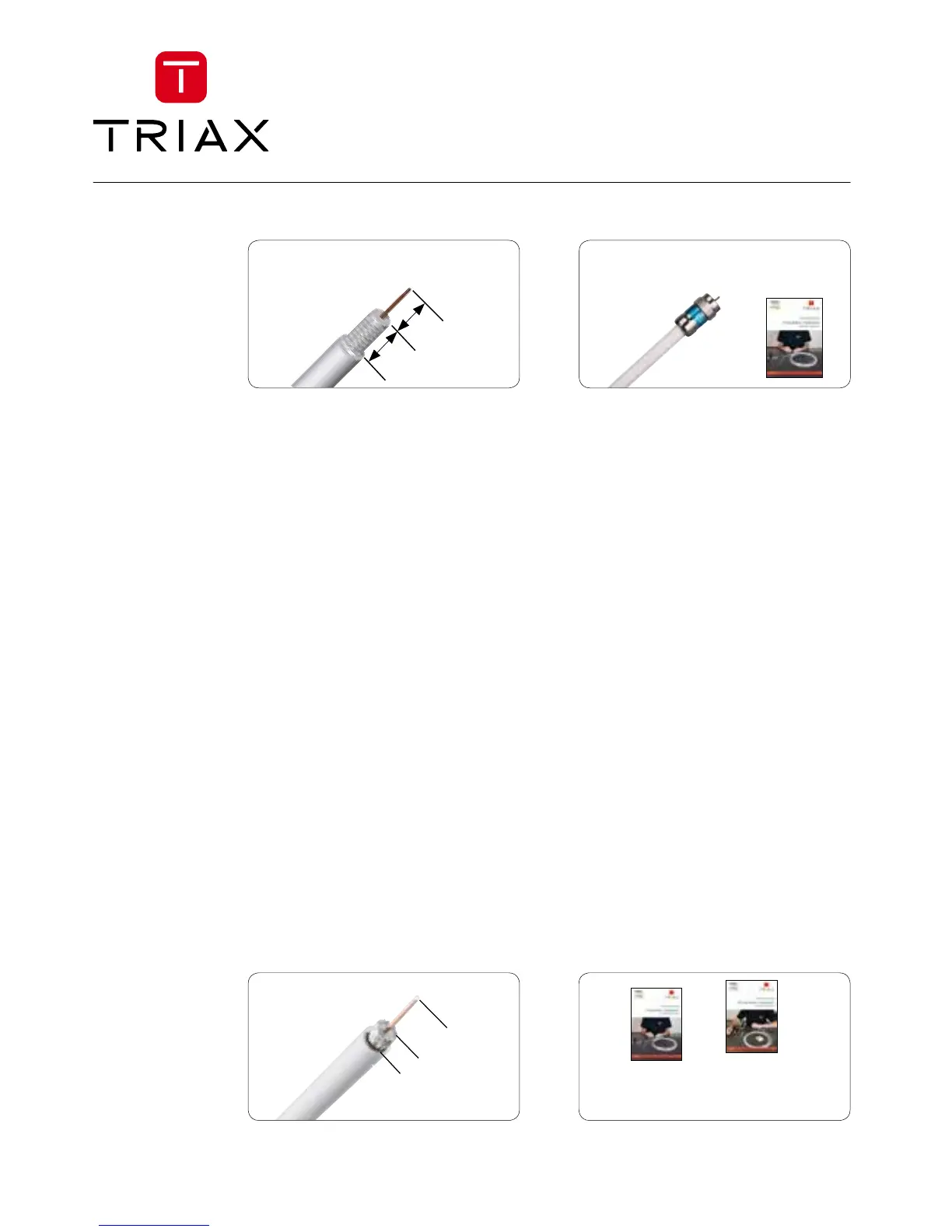

Strip the end of the antenna cable as shown in
the gures.To prevent interference to your TV
picture ensure that none of the ne threads of
the outer sleeve touch the inner copper wire
6.5
mm
6.5
mm
Stripping cable for the F-connector
Signal out
IFA 284 has four signal outputs. IFA 288 has 8 signal outputs.
The ampliers use self- terminated output connectors which eliminates the
need for additional termination of unused outputs.
Assemble an F-connector at one end of the
cable at the amplier’s input .
Remember to read the instructions about
assembling connectors.
The pre-assembled cable with F-connectors
Distribution
Run cable from the amplier outputs, labelled , to the required location of
your TV or radio. You may choose to use an IEC connector for direct connec-
tion to a TV (IEC male) or FM radio (IEC female), or you may end in an antenna
socket from which you can connect a TV or radio via a connection cable. The
end of the distribution antenna cable, which is connected to the amplier, must
be tted with an F-connector (as shown previously) and attached to the ampli
-
er output(s)
.
Remember to read the instructions
regarding assembling connectors.
3
mm
13
mm
Stripping the antenna cable to assemble
the IEC connector.


Mounting instruction
TRIAX IFA 284/288
distribution ampliers
