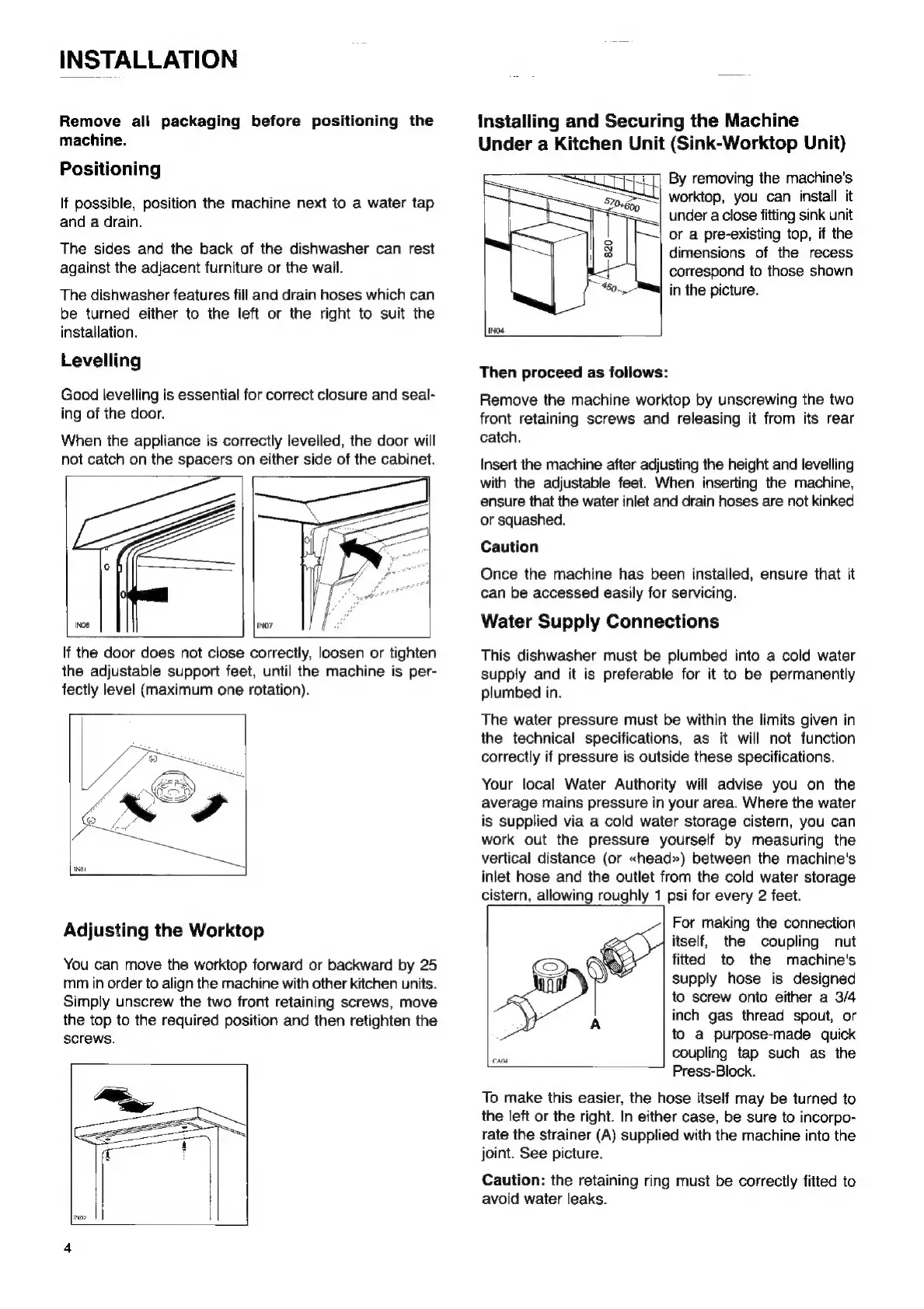

INSTALLATION
Remove
all
packaging
before
positioning
the
machine.
Positioning
If
possible,
position
the
machine
next
to
a
water
tap
and
a
drain.
The
sides
and
the
back
of
the
dishwasher
can
rest
against
the
adjacent
furniture
or
the
wall.
The
dishwasher
features
fill
and
drain
hoses
which
can
be
turned
either
to
the
left
or
the
right to
suit
the
installation.
Levelling
Good
levelling
is
essential
for
correct
closure
and
seal-
ing
of
the
door.
When
the
appliance
is
correctly
levelled,
the
door
will
not
catch
on
the
spacers
on
either
side
of
the
cabinet.
NOB
If
the
door
does
not
close
correctly,
loosen
or
tighten
the
adjustable
support
feet,
until
the
machine
is
per-
fectly
level
(maximum
one
rotation).
Adjusting
the
Worktop
You
can
move
the
worktop
forward
or
backward
by
25
mm
in
order
to
align
the
machine
with
other
kitchen
units.
Simply
unscrew
the
two
front
retaining
screws,
move
the
top
to
the
required
position
and
then
retighten
the
screws.
Installing
and
Securing
the
Machine
Under
a
Kitchen
Unit
(Sink-Worktop
Unit)
By
removing
the
machine's
worktop,
you
can
install
it
under
a
close
fitting
sink
unit
or
a
pre-existing
top,
if
the
dimensions
of
the
recess
correspond
to
those
shown
in
the
picture.
Then
proceed
as
follows:
Remove
the
machine
worktop
by
unscrewing
the
two
front
retaining
screws
and
releasing
it
from
its
rear
catch.
Insert
the
machine
after
adjusting
the
height
and
levelling
with
the
adjustable
feet.
When
inserting
the
machine,
ensure
that
the
water
inlet
and
drain
hoses
are
not
kinked
or
squashed.
Caution
Once
the
machine
has
been
installed,
ensure
that
it
can
be
accessed
easily
for
servicing.
Water
Supply
Connections
This
dishwasher
must
be
plumbed
into
a
cold
water
supply
and
it
is
preferable
for
it
to
be
permanently
plumbed
in.
The
water
pressure
must
be
within
the
limits
given
in
the
technical
specifications,
as
it
will
not
function
correctly
if
pressure
is
outside
these
specifications.
Your
local
Water
Authority
will
advise
you
on
the
average
mains
pressure
in
your
area.
Where
the
water
is
supplied
via
a
cold
water
storage
cistern,
you
can
work
out
the
pressure
yourself
by
measuring
the
vertical
distance
(or
«head»)
between
the
machine's
inlet
hose
and
the
outlet
from
the
cold
water
storage
cistern,
allowing
roughly
1
psi
for
every
2
feet.
For
making
the
connection
itself,
the
coupling
nut
fitted
to
the
machine's
supply
hose
is
designed
to
screw
onto
either
a
3/4
inch
gas
thread
spout,
or
to
a
purpose-made
quick
coupling
tap
such
as
the
Press-Block.
cA
To
make
this
easier,
the
hose
itself
may
be
turned
to
the
left
or
the
right.
In
either
case,
be
sure
to
incorpo-
rate
the
strainer
(A)
supplied
with
the
machine
into
the
joint.
See
picture.
Caution:
the
retaining
ring
must
be
correctly
fitted
to
avoid
water
leaks.
