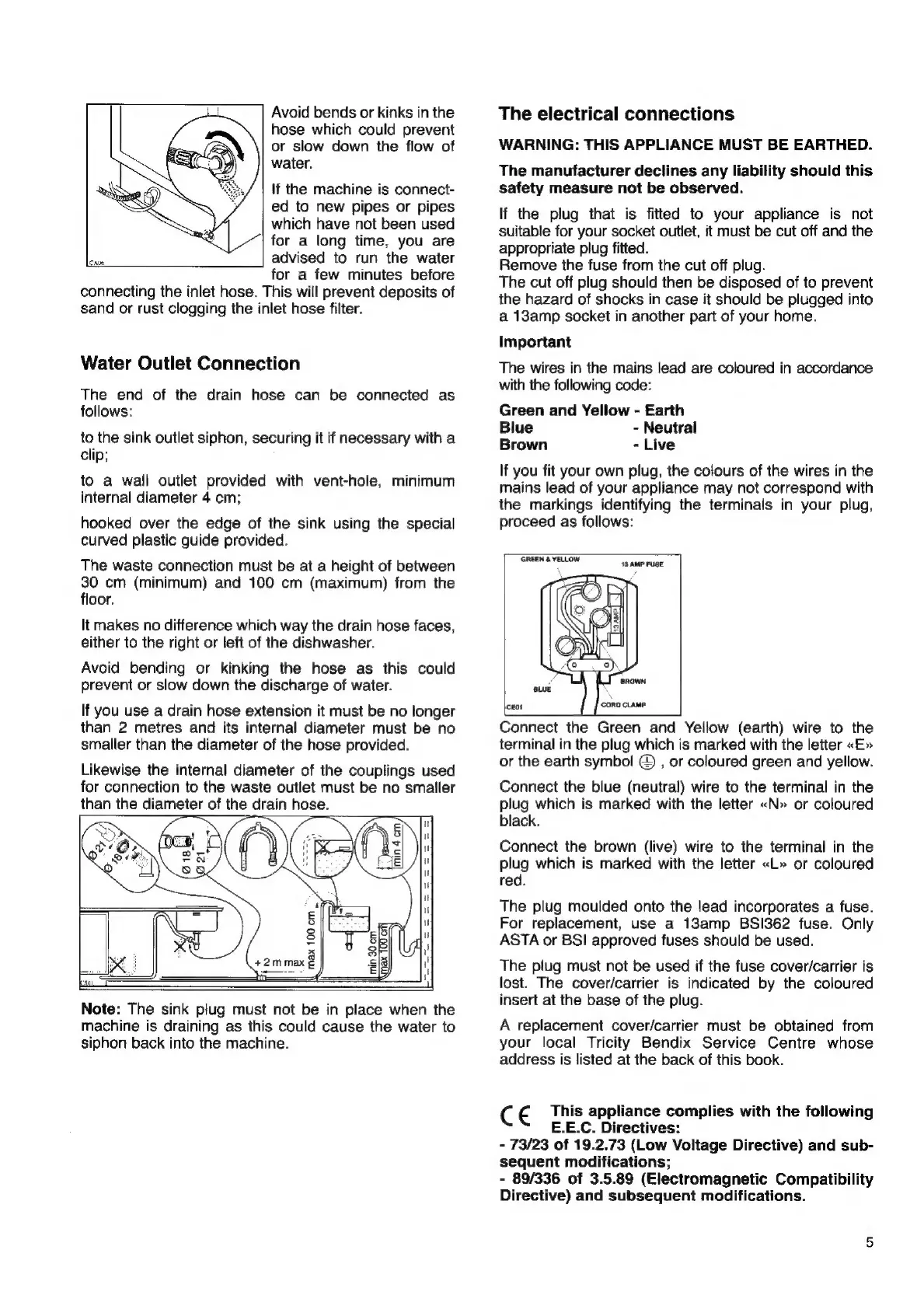

Tricity Bendix CDW 086 - Water Outlet Connection; Electrical Connections

Avoid bends or kinks in the
hose which could prevent
or slow down the flow of
water.
If the machine is connect-
ed to new pipes or pipes
which have not been used
for a long time, you are
advised to run the water
for a few minutes before
connecting the inlet hose. This will prevent deposits of
sand or rust clogging the inlet hose filter.
Water Outlet Connection
The end of the drain hose can be connected as
follows:
to the sink outlet siphon, securing it if necessary with a
clip;
to a wall outlet provided with vent-hole, minimum
internal diameter 4 cm;
hooked over the edge of the sink using the special
curved plastic guide provided.
The waste connection must be at a height of between
30 cm (minimum) and 100 cm (maximum) from the
floor.
It makes no difference which way the drain hose faces,
either to the right or left of the dishwasher.
Avoid bending or kinking the hose as this could
prevent or slow down the discharge of water.
If you use a drain hose extension it must be no longer
than 2 metres and its internal diameter must be no
smaller than the diameter of the hose provided.
Likewise the internal diameter of the couplings used
for connection to the waste outlet must be no smaller
than the diameter of the drain hose.
Note: The sink plug must not be in place when the
machine is draining as this could cause the water to
siphon back into the machine.
The electrical connections
WARNING: THIS APPLIANCE MUST BE EARTHED.
The manufacturer declines any liability should this
safety measure not be observed.
If the plug that is fitted to your appliance is not
suitable for your socket outlet, it must be cut off and the
appropriate plug fitted.
Remove the fuse from the cut off plug.
The cut off plug should then be disposed of to prevent
the hazard of shocks in case it should be plugged into
a 13amp socket in another part of your home.
Important
The wires in the mains lead are coloured in accordance
with the following code:
Green and Yellow - Earth
Blue - Neutral
Brown - Live
If you fit your own plug, the colours of the wires in the
mains lead of your appliance may not correspond with
the markings identifying the terminals in your plug,
proceed as follows:
GREEN & YELLOW
19, AMP FUSE
Connect the Green and Yellow (earth) wire to the
terminal in the plug which is marked with the letter «E»
or the earth symbol © , or coloured green and yellow.
Connect the blue (neutral) wire to the terminal in the
plug which is marked with the letter «N» or coloured
black.
Connect the brown (live) wire to the terminal in the
plug which is marked with the letter «L» or coloured
red.
The plug moulded onto the lead incorporates a fuse.
For replacement, use a 13amp BSI362 fuse. Only
ASTA or BSI approved fuses should be used.
The plug must not be used if the fuse cover/carrier is
lost. The cover/carrier is indicated by the coloured
insert at the base of the plug.
A replacement cover/carrier must be obtained from
your local Tricity Bendix Service Centre whose
address is listed at the back of this book.
C € This appliance complies with the following
E.E.C. Directives:
- 73/23 of 19.2.73 (Low Voltage Directive) and sub-
sequent modifications;
- 89/336 of 3.5.89 (Electromagnetic Compatibility
Directive) and subsequent modifications.
