TrickleStar TS1811 User Manual

120 VAC +/- 10% 60Hz
15 Amps RMS
1800W
<40dB
<1W at 120VAC, 60Hz
3.3V & Optically Isolated
4 ft. (1.2 meters)
2 Always ON
5 Switched Outlets
Ground, Surge, Switched
72,000 Amps / 1080 Joules for all
outlets (Ceramic Surge Protection)
15A Resettable Circuit Breaker
www.tricklestar.com
The best way to save energy is to stop wasting it.
TM
ELECTRICAL SPECIFICATIONS
PHYSICAL SPECIFICATIONS
ORDER INFORMATION
APPROVALS
TIER 2 APS+
MULTI SENSOR
FOR INDOOR USE
Operating Voltage
Output Current
Maximum Total Load
Noise Filtering
Power Consumption
RJ11
APS+ Cord Length
Outlets (7 Outlets)
LED Status Indication
Surge Protection
Input Current
FOR INDOOR USE
Voltage
IR Detection Angle/Range
PIR Detection Angle/Range
RF Detection Range
Cord Length
Sensor Detection
Operating Temperature
Storage Temperature
Humidity
IP Rating
TS1811
(1 outlet transformer spaced)
3.3V
60°/Up to 16.4 ft. (5 meters)
90°/Up to 16.4 ft. (5 meters)
360°/Up 16.4 ft. (5 meters)
8 ft.
Infrared, Passive Infrared
and ZigBee RF4CE
32° to 113° F
14° to 140° F
5 to 90% N/C
IP20
7 Outlet APS+, 1080 Joules,
4 ft. Cord, Auto Threshold,
Zigbee Multi-Sensor, TAV-Link
TrickleStar® is a registered trademarks of TrickleStar Ltd. All other trademarks are the property of their respective owners. The information in this document is subject to change without notice.
TrickleStar assumes no responsibility for any errors that may appear in this document.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
Copyright © TrickleStar. All rights reserved.
Conformity to product standards for safety and EMC
UL (US & Canada), 2002/95/EG (RoHs), 2002/96/EC (WEEE),
1999/5/EC (RTTE), FCC Approved, ZigBee Certified

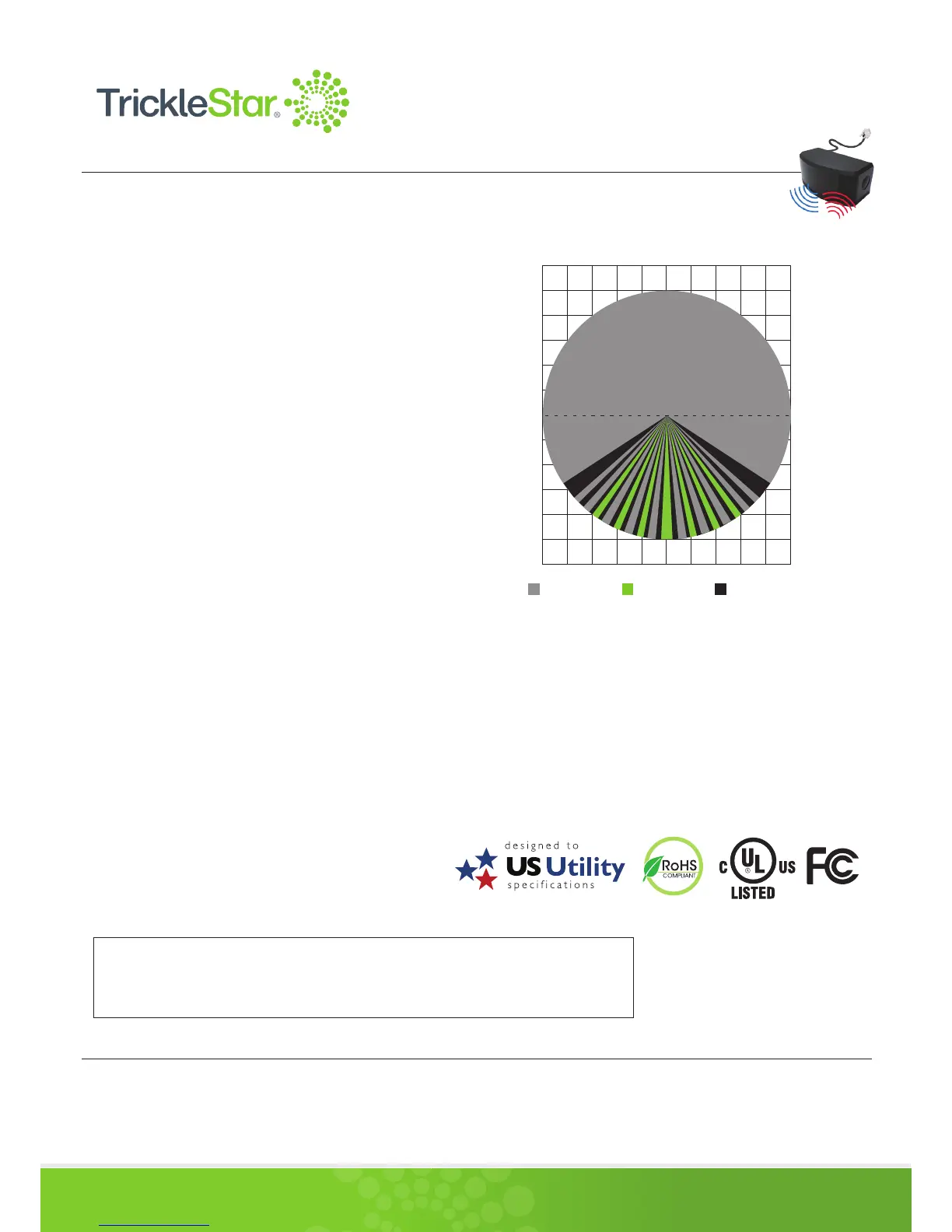

SENSOR OPTICAL VIEW PATTERN
PIR & IR DETECTION PATTERN
REV 5 Jan 2016
0 3.28 ft. 6.56 ft. 9.84 ft. 13.12 ft. 16.40 ft.
0
3.28 ft.
6.56 ft.
9.84 ft.
13.12 ft.
16.40 ft.
19.69 ft.
0
3.28 ft.
6.56 ft.
9.84 ft.
13.12 ft.
16.40 ft.
19.69 ft.
19.69 ft.
16.40 ft.
13.12 ft.
9.84 ft.
6.56 ft.
3.28 ft.
19.69 ft.
16.40 ft.
13.12 ft.
9.84 ft.
6.56 ft.
3.28 ft.
16.40 ft. 13.12 ft. 9.84 ft. 6.56 ft. 3.28 ft.
(in all modes of operation)
(1 outlet transformer spaced)
RF Detection
Range: 16.4 ft.
Degree: 360°
IR Detection
Range: 16.4 ft.
Degree: 60°
PIR Detection
Range: 16.4 ft.
Degree: 90°
ADVANCED POWERSTRIP+
TIER 2 ZIGBEE
®
MULTI-SENSOR
Changes or modifications not expressly approved by the party responsible for compliance could void
your authority to operate the equipment.

TrickleStar TS1811 Specifications

General

Brand	TrickleStar
Model	TS1811
Category	Power Strips
Language	English
