E15

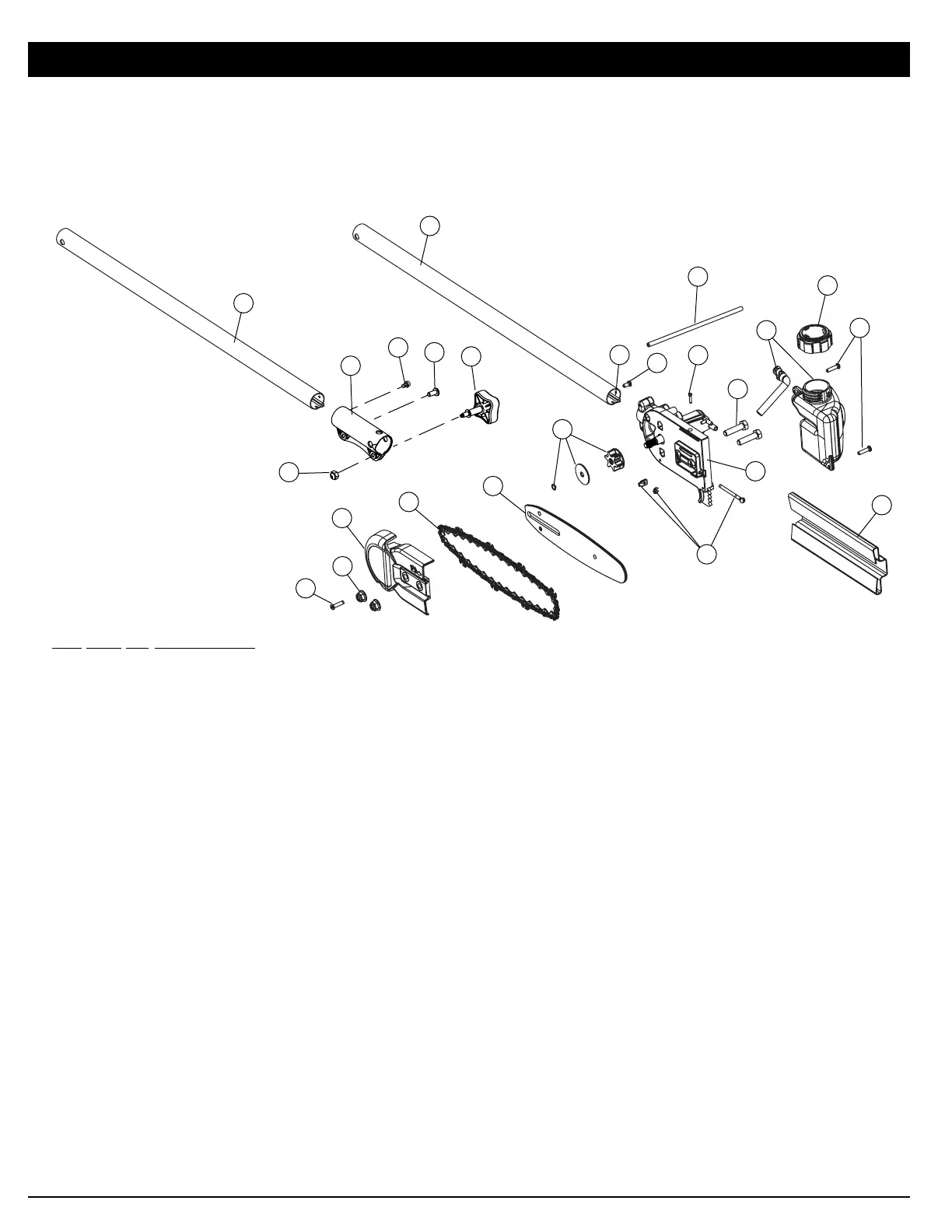

PARTS LIST
REPLACEMENT PARTS - MODEL PS720R
TRIMMER ATTACHMENT
22
7
9
13
11
20
14
18
17
16
15
12
19
21
10
1
3
4
5
2
6
Item Part No. Description
1 753-04352 Extension Boom
2 753-1190 Split Boom Coupler (includes 3-6)
3 791-182057 Screw
4 791-181617 Bolt
5 791-181981 Adjustment Knob
6 753-04386 Knob Retaining Nut
7 753-05724 Drive Shaft Housing
8 791-181166 Flexible Drive Shaft
9 791-180288 Screw
10 753-05586 Oil Tank Assembly
11 753-05587 Fuel Cap Assembly
12 753-05274 Screw
13 753-05588 Oil Line
14 753-05589 Screw
15 753-05591 Nut
16 753-05593 Chain Guard
17 753-05685 Chain
18 753-05684 Bar
19 753-05595 Sprocket Assembly
20 753-05596 Bolt
21 753-05597 Chain Tension Hardware Assembly
22 753-05686 Chain Cover
23 753-05599 Gearbox Assembly (includes 14 & 19)
* Optional
* 791-612605 Hanger
8
23
12
To Next Page
