Trinity Basics THA-0307 - Assembly Instructions; Step 1: Leg Assembly; Step 2: Drain Installation

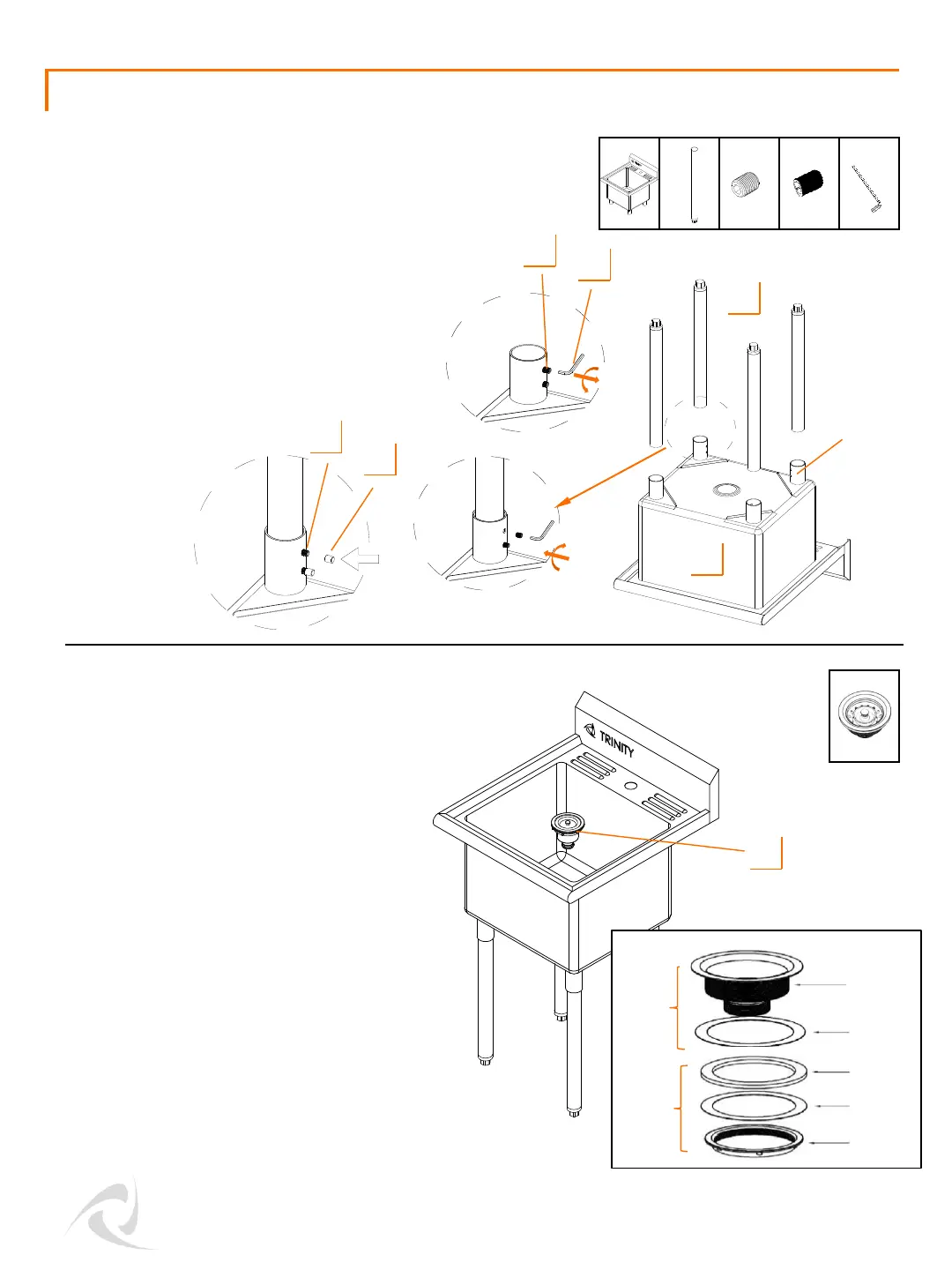

ASSEMBLY INSTRUCTIONS
Carefully turn sink right-side up, standing it
upright.
Unscrew large 3-3/8” Nut from bottom of
DRAIN ASSEMBLY (D). From inside SINK (A),
insert Drain through White Seal and opening
at bottom.
From under SINK (A), first slide on Black
Gasket and Paper Washer then screw large
3-3/8” Nut back on tightly. If necessary, use
a pipe wrench to tighten.
Note: P-trap NOT included.
Lay SINK (A) upside-down. Unscrew HEX
SCREWS (E) that are pre-installed on Leg
Collars on bottom of SINK (A) until LEGS (B)
can be fully inserted.
Insert LEGS (B) into Leg Collars. Tighten both
HEX SCREWS (E) on each Leg Collar with HEX
KEY (G). Place a SCREW CAP (F) over each
HEX SCREW (E).
STEP 1
STEP 2
E (8)
G (1)
B (4)
B
A
A (1)
D
E
G
D (1)
Leg Collar
