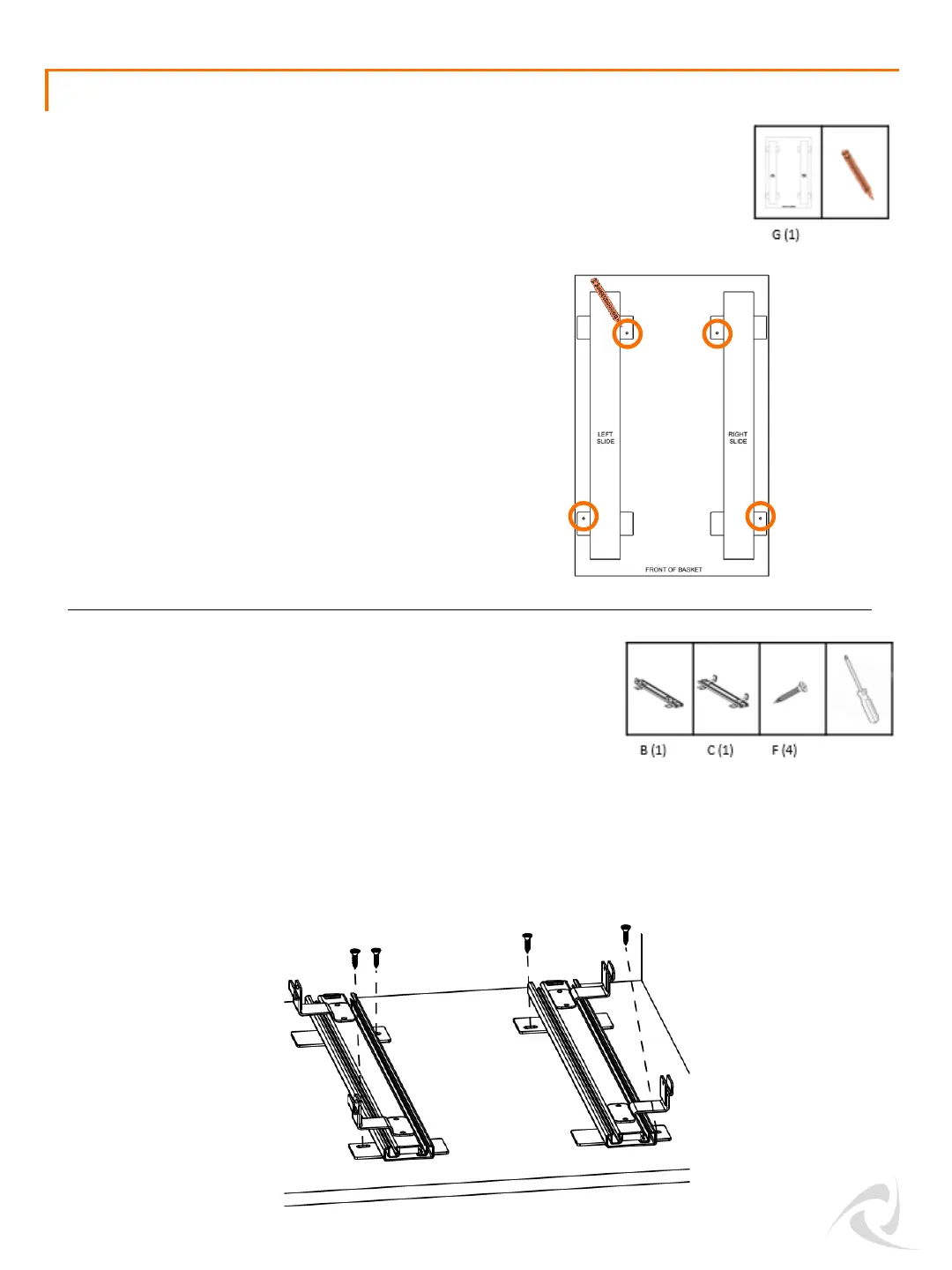

INSTALLATION INSTRUCTIONS – In Cabinet
STEP 1
Place CABINET MOUNTING TEMPLATE (G) inside your
cabinet. Using a pencil, mark locations to install CABINET
SCREWS (F).
Note: For easier installation you can pre-drill a small
hole at each marked location.
STEP 2
Identify LEFT & RIGHT SLIDES (B) & (C).
Place LEFT & RIGHT SLIDES (B) & (C) in their proper orientation
and desired position inside cabinet.
Note: BACK end of each SLIDE (B) & (C) has
a clear tip and FRONT end does NOT.
Extend SLIDES (B) & (C) slightly and align center of oval slots to your marking in cabinet. Use self-tapping
CABINET SCREWS (F) to fasten LEFT & RIGHT SLIDES (B) & (C) in your cabinet.
BACK
FRONT
© 2023 TRINITY - 800.985.5506
2
