ASSEMBLY INSTRUCTIONS
For easiest assembly, do not attach the TOP (D),
MIDDLE (E) and BOTTOM (F) POLES until
instructed. Once connected, these will be the posts
for the Organizer.
Note that each POLE (D+E+F) has slight horizontal
line indentations at 1” intervals. Each SLIP SLEEVE
(J) has raised horizontal lines inside designed to
lock them in place on the POLE (D+E+F).

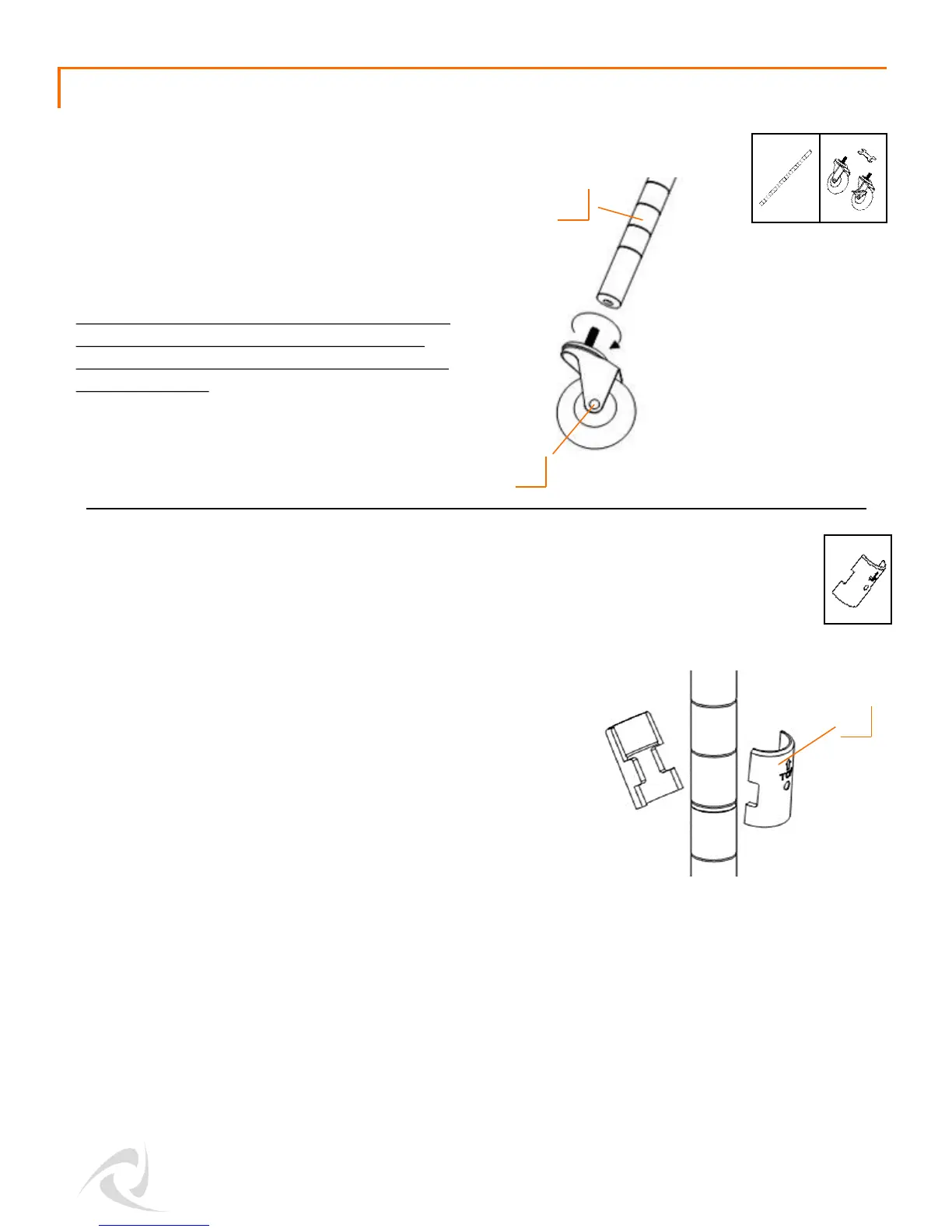

On all (6) BOTTOM POLES (F) place 1 pair of SLIP
SLEEVES (J) at the lowest position, position closest
to the CASTERS (K). Please make sure the arrow
faces up and that the word “TOP” is right side up.
Slide the pair of SLIP SLEEVES (J) until you hear a
click to confirm the pair is locked onto the BOTTOM
POLE (F). DO NOT place more than one pair on
each POLE (F) at a time.
Screw each CASTER (K) into the bottom of
each BOTTOM POLE (F). Turn clockwise to
screw in place.
Tighten the CASTER (K) completely using
the included Caster Wrench. Failure to
do as instructed could result in the caster
stem breaking.
STEP 1
STEP 2
F (6) K (6)
F
K
J
J (12)
© 2016 TRINITY - 800.985.5506
3
* Note: There will be a very small gap in-between the SLIP SLEEVES (J)—this is normal.
