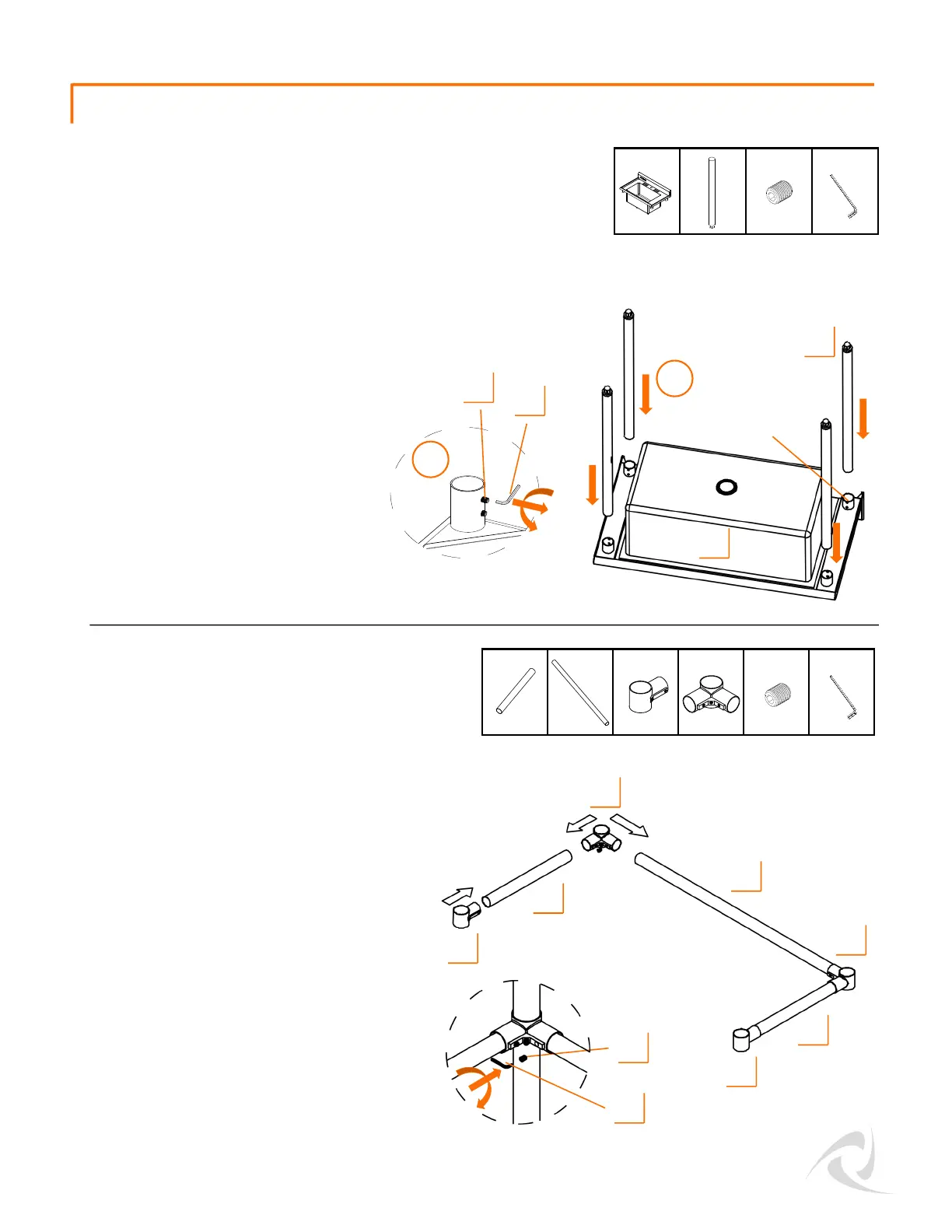

ASSEMBLY INSTRUCTIONS
Unscrew HEX SCREWS (I) that are pre-
installed on Connectors (G/H) until Cross
Beams (E/F) can be fully inserted.
On a flat surface connect Connectors (G/H)
and Cross Beams (E/F) into a U-shape as
shown in diagram.
Make sure all Cross Beams (E/F) are pushed
all the way into the Connectors (G/H).
Use HEX KEY (K) to tighten HEX SCREW (I)
against Cross Beams
With two people, lay SINK (A) upside-down.
Unscrew HEX SCREWS (I) that are pre-
installed on Leg Collars on bottom of SINK
(A) until LEGS (B) can be fully inserted.
Insert LEGS (B) into Leg Collars. Do not
tighten HEX SCREWS (I) until Step 3.
STEP 1
STEP 2
I (8)
K (1)
B (4)
B
A
A (1)
E
I
K
Leg Collar
1
2
G (2)
K (1)
F (1)
E (2)
H (2)
I (6)
E
H
F
I
K
G
H
© 2019 TRINITY - 800.985.5506
2
G
To Next Page
