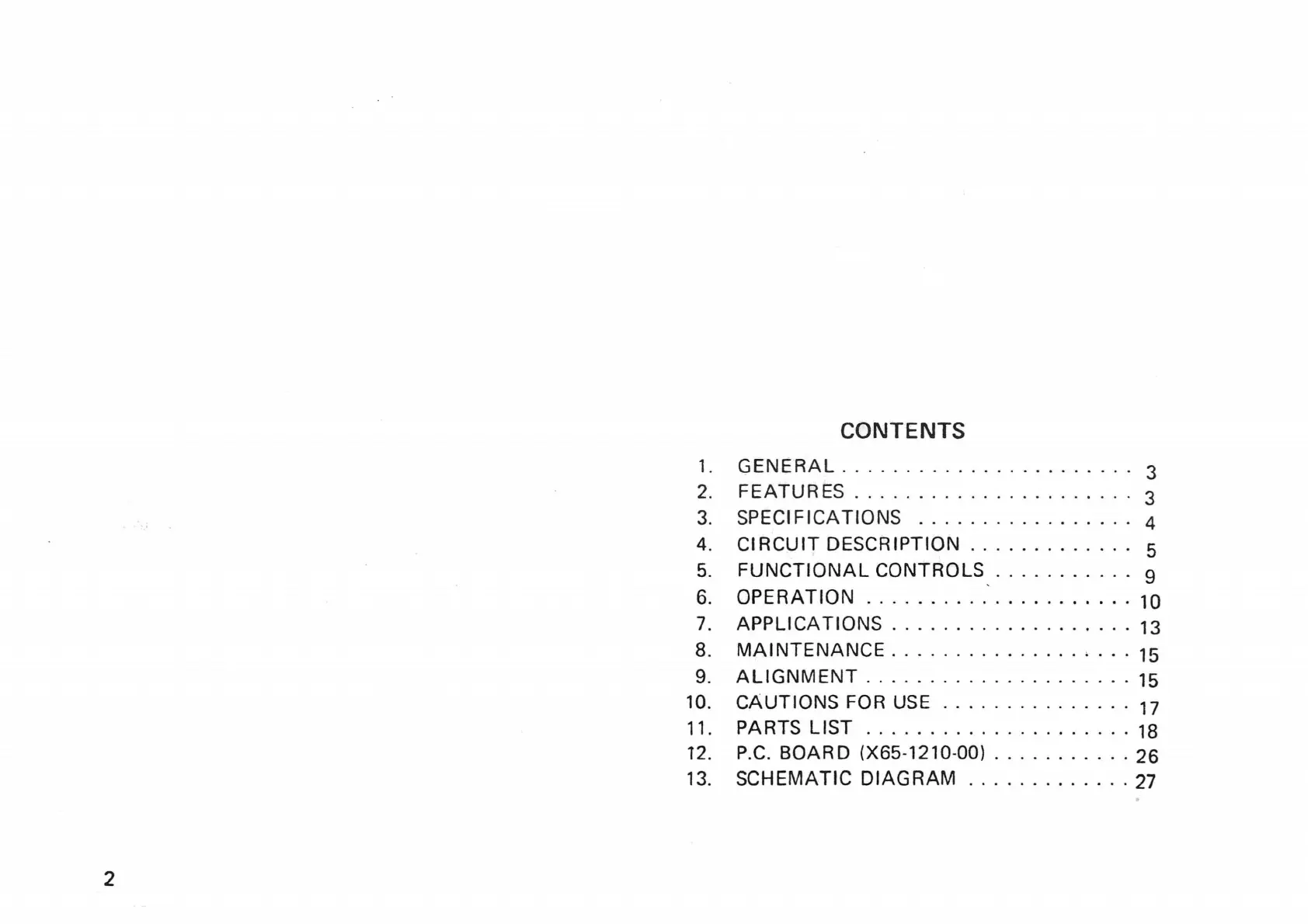

Trio VT-121 - Table of Contents

CONTENTS
1. GENERAL ................. · · - · · · 3
2. FEATURES ......... . .. . . . . · · .··· 3
3. SPECIFICATIONS .......... . ...... 4
4. CIRCUIT DESCRIPTION ............. 5
5. FUNCTIONAL CONTROLS_ ........... 9
6. OPERATION .................... · 10
7. APPLICATIONS ................... 13
8. MAINTENANCE ............... • . · · 15
9. ALIGNMENT ..................... 15
10. CAUTIONS FOR USE .... . ....... · · · 17
11. PARTS LIST ..................... 18
12. P.C. BOARD (X65-1210-00) ........... 26
13.
SCHEMATIC DIAGRAM ............. 27
