5

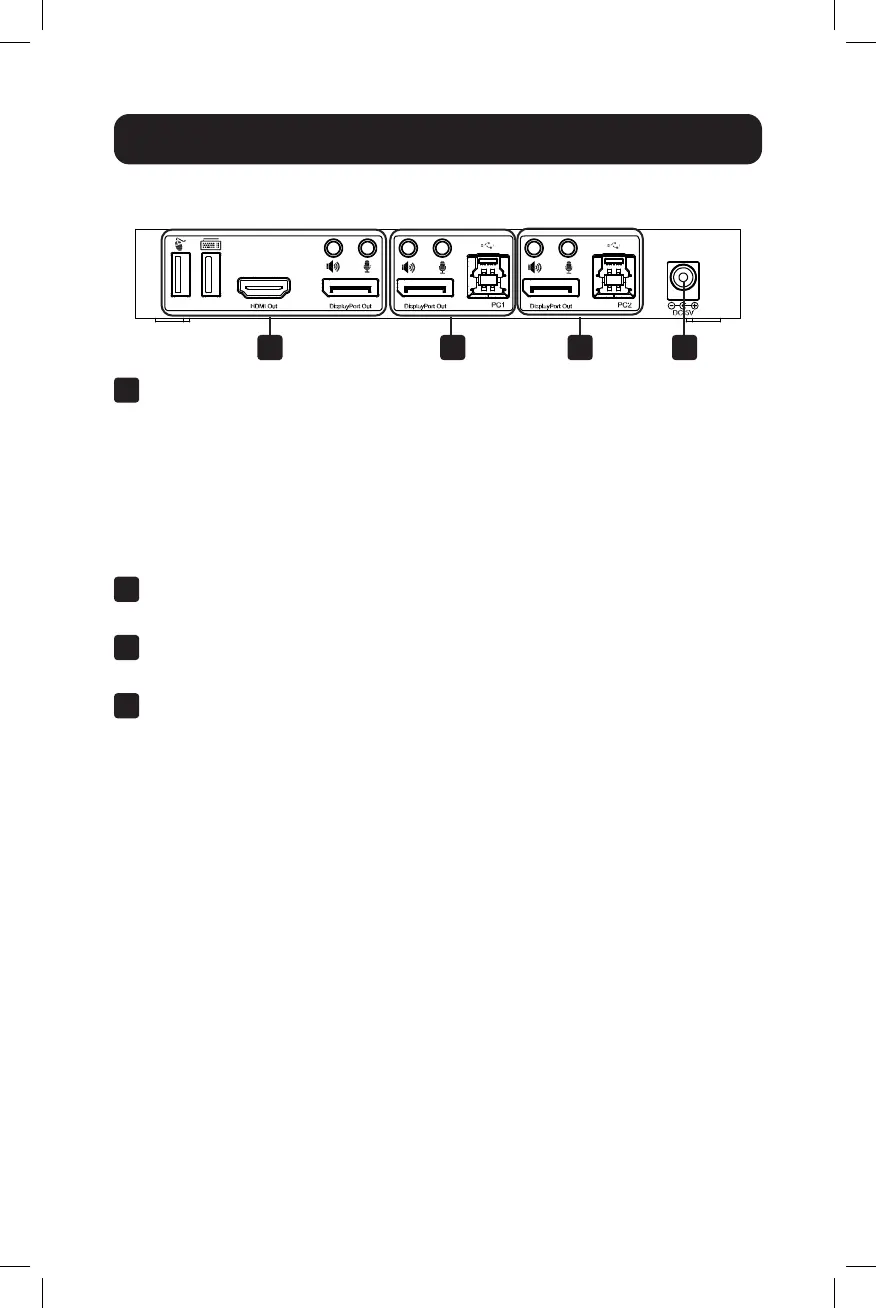

Panel Descriptions
Rear Panel
9
Outputs
a. Connect a mouse and keyboard to the USB 2.0 ports.
b. Connect an amplifier to the 3.5 mm stereo port.
c. Connect a microphone to the 3.5 mm microphone port.
d. Connect a local HDMI monitor to the HDMI Out port.
e. Connect a local DisplayPort monitor to the DisplayPort Out port.
10
PC1 Input – Connect to a computer’s DisplayPort, USB, stereo audio
and microphone ports.
11
PC2 Input – Connect to a second computer’s DisplayPort, USB, stereo
audio and microphone ports.
12
DC 5V Input – Connect the included 5V/3A DC power supply.
9 10 11 12
