5

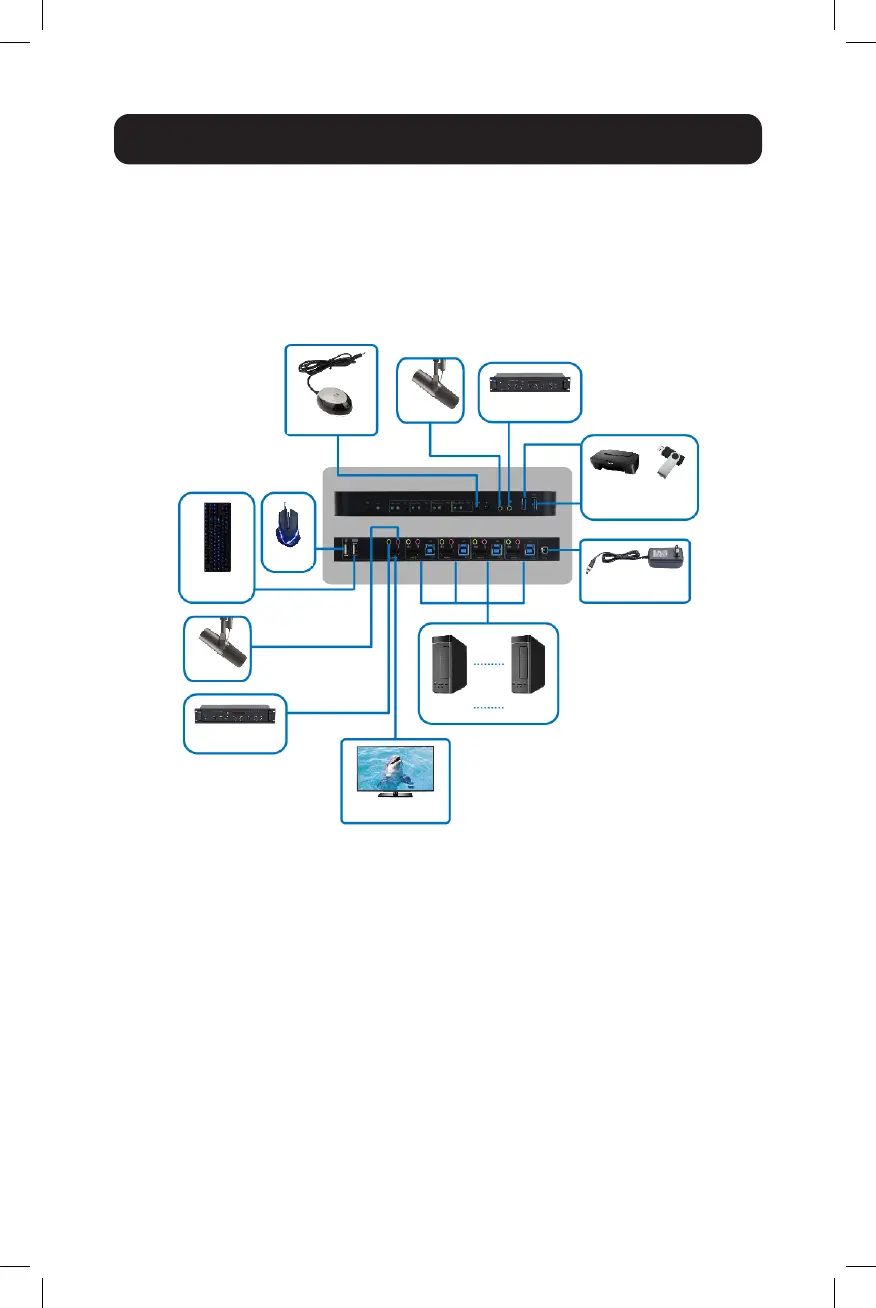

Refer to the following steps and diagram to set up your KVM switch
installation.
Note: Before making any connections, make sure power to all devices connected
to the KVM switch is turned off. Unplug the power cords of any computers that have
the Keyboard Power On function.
1. Connect computers to the USB-B input ports using USB cables. Connect
the computers’ microphone and stereo audio ports using 3.5 mm audio
cables. Connect computers to the “HDMI In” ports using HDMI cables.
2. Connect a keyboard and mouse to the USB-A ports on the rear panel.
Connect a microphone and amplifier to the microphone and stereo audio
ports using 3.5 mm audio cables. Connect a monitor to “HDMI Out”
using a HDMI cable.
3. Connect the included DC power supply, and press the Power button.
The Power LED will illuminate. When computers are connected to the
PC1, PC2, PC3 and PC4 ports, the Online LEDs will illuminate.
Installation and Operation
IR Extender
Mic
Amplifier
Keyboard
Mouse
HDMI Display
Mic
PC1
PC4
Power Supply
USB Devices
(Printer, Scanner, U-disk, etc)
Amplifier
To Next Page
