4

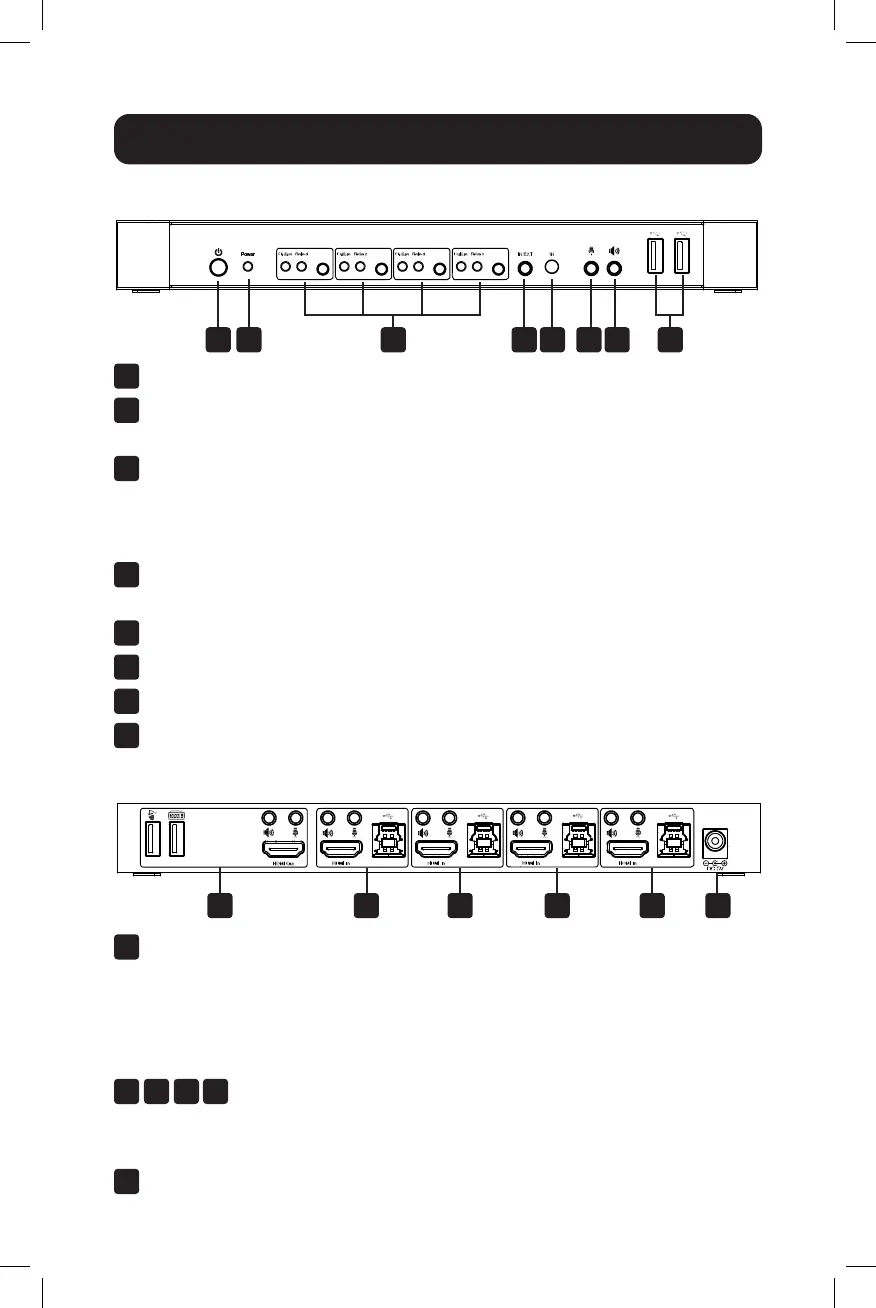

Panel Descriptions
Front Panel
1
Power – Press to turn the unit on and off.
2
Power Indicator – Illuminates red to signal the DC power supply is
connected to an outlet and the KVM switch is turned on.
3
Input Selector – Illuminates blue to indicate whether PC1, PC2, PC3
or PC4 has been selected. Select LEDs flash in a loop during automatic
switching mode. Online LEDs illuminate when the corresponding USB-B port
is connected.
4
IR EXT – Connect the included IR Extender for IR signal reception from
the included IR Remote Control.
5
IR – Signal reception point for the IR Remote Control.
6
3.5 mm Microphone – Connect a microphone.
7
3.5 mm Stereo – Connect a stereo audio device.
8
USB-A 3.0 –
Connect USB peripherals (printers, scanners, U-disks, etc.).
Rear Panel
PC1
PC3 PC4PC2
1 2 4 5 6 73 8
9
Outputs
a. Connect a mouse and keyboard to the USB 2.0 ports.
b. Connect an amplifier to the 3.5 mm stereo port.
c. Connect a microphone to the 3.5 mm microphone port.
d. Connect a local HDMI monitor to the HDMI Out port.
10
PC1, PC2, PC3, and PC4 Inputs – Connect to multiple computers’
HDMI, USB, stereo audio and microphone ports.
DC 5V Input – Connect the included 5V/3A DC power supply.
PC1 PC3 PC4PC2
9 10 11 12 13 14
14
11 12 13
