Installation

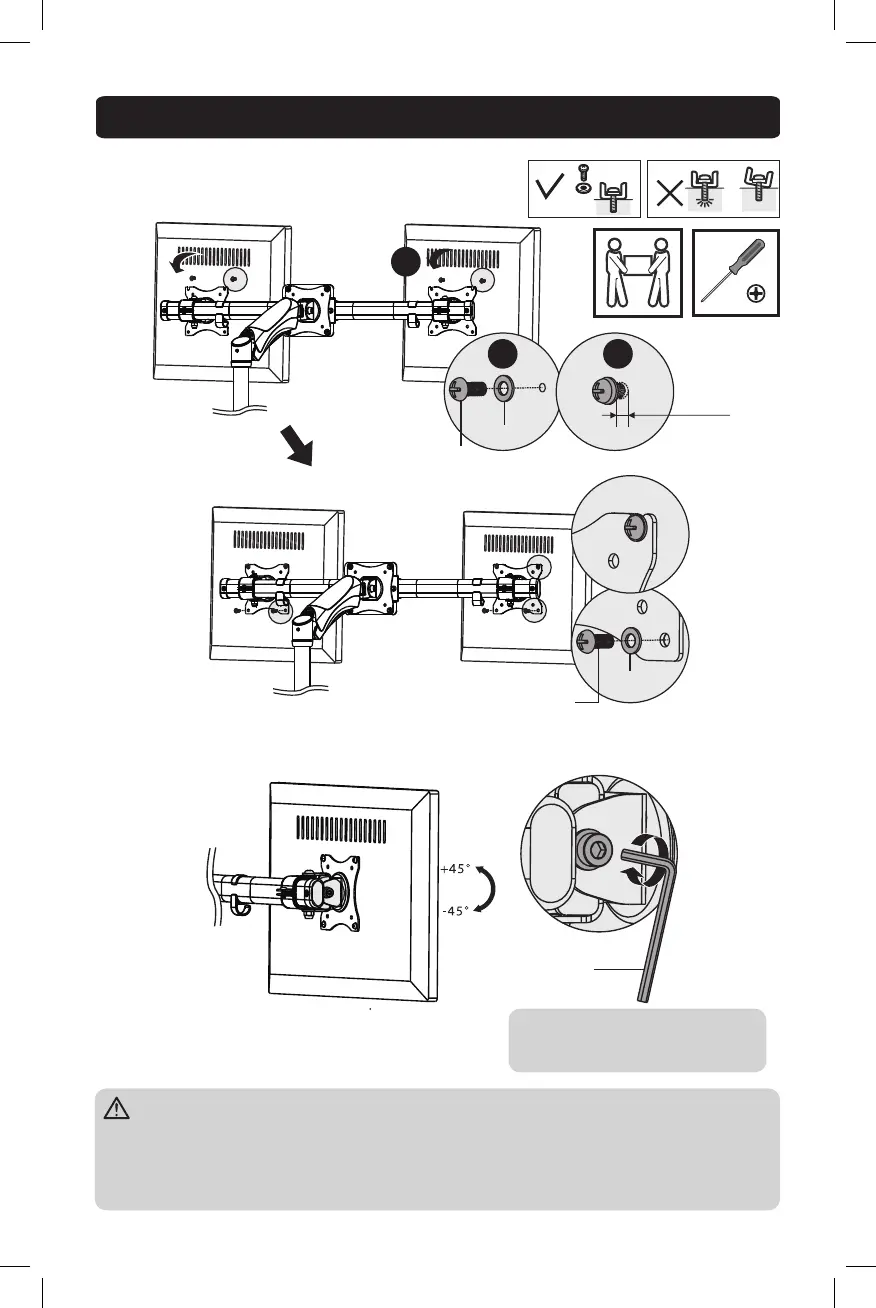

5. Attach Displays to Dual Bar Assembly
6.
TV
TV TV
3 mm
M4X12 or
M5X12 Screw
D5 Washer
D5 Washer
M4X12 or
M5X12 Screw
A
B C
6 mm Hex Key
It may be necessary to slightly loosen or
tighten the adjustment screw, depending
on the weight of display installed.
Attach the display to the VESA plate with the appropriate included screws.
Do not over-tighten screws.
When converting a single-monitor display to a dual-monitor display using the DMA1327SD Dual-Mount Adapter.
DO NOT EXCEED THE MAXIMUM RATED WEIGHT CAPACITY. The weight capacity remains the same whether
supporting one or two monitors.
