Assembly
1
Assemble the Base
P-A
A-D
A-E
A
B
C
Note: Position base assembly
with wheels facing forward.
Note: Lock the brakes on the
casters to avoid any sudden
movements during installation.
Each caster can be adjusted
independently for fine tuning. Using the
wrench (A-E), slightly turn each caster
nut to lower or raise the base.

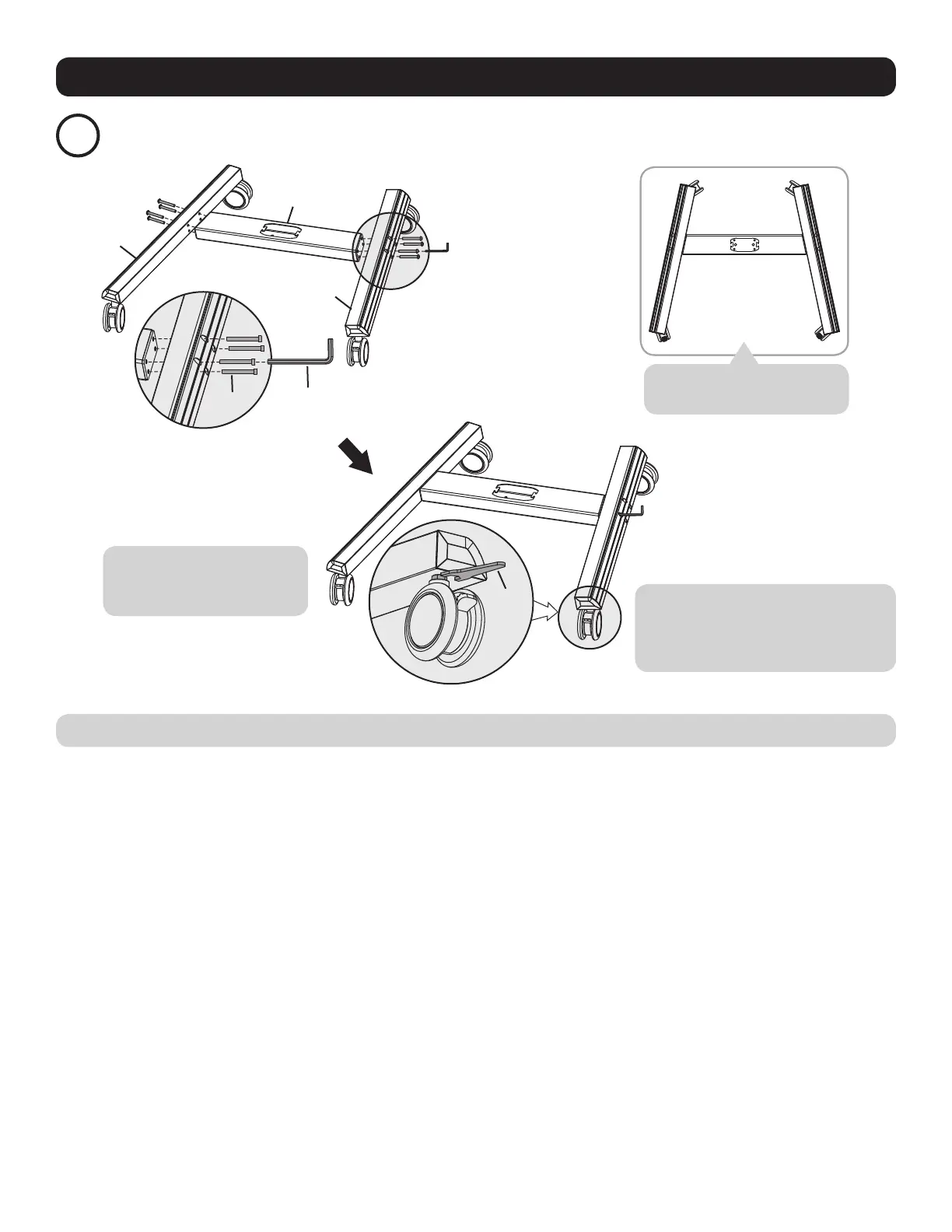

Using M8x65 screws (P-A) and the 6 mm hex key (A-D), attach the left and right base to the middle base.
To Next Page
