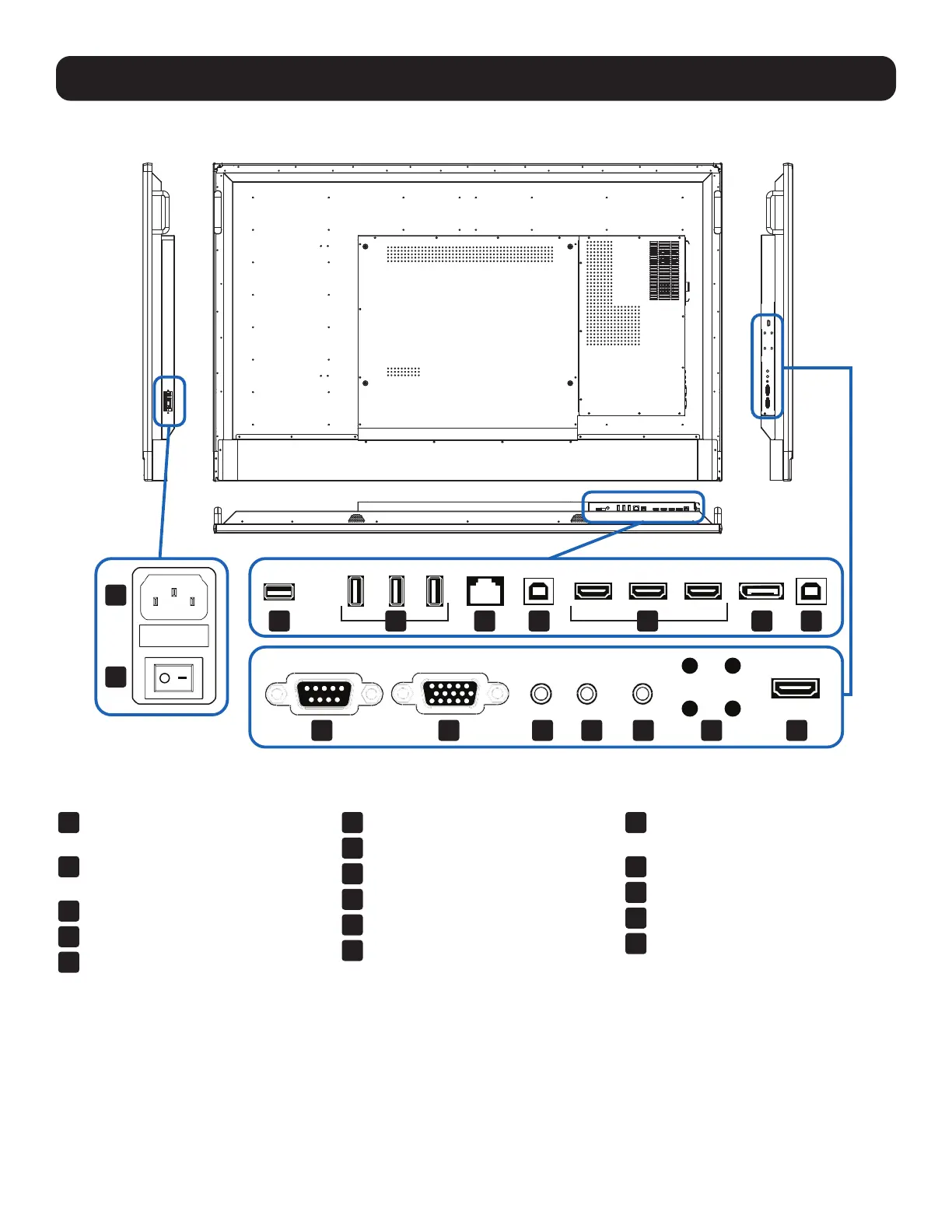

Rear Panel
2
1
3 4 5 6 7
Features
1
AC Inlet
(C14, 100-240V, 50/60 Hz)
2
Master On/Off Switch
(O: Off; —: On)
3
Camera Input (Common USB)
4
USB 2.0 Ports (3 – Android Only)
5
LAN Port (RJ45 Ethernet)
6
USB Touch Port (For HDMI)
7
HDMI Input (3)
8
DisplayPort Input
9
USB Touch Port (For DP/VGA)
10
HDMI Output
11
Wi-Fi Antenna Connectors (4)
12
3.5 mm Audio Output
(Headphone)
13
3.5 mm Audio Input (Microphone)
14
3.5 mm Audio Input (VGA)
15
VGA Video Input (HD15)
16
RS-232 Serial Port (DB9)
1
2
3 5 6 8 94 7
101113 12141516
