5

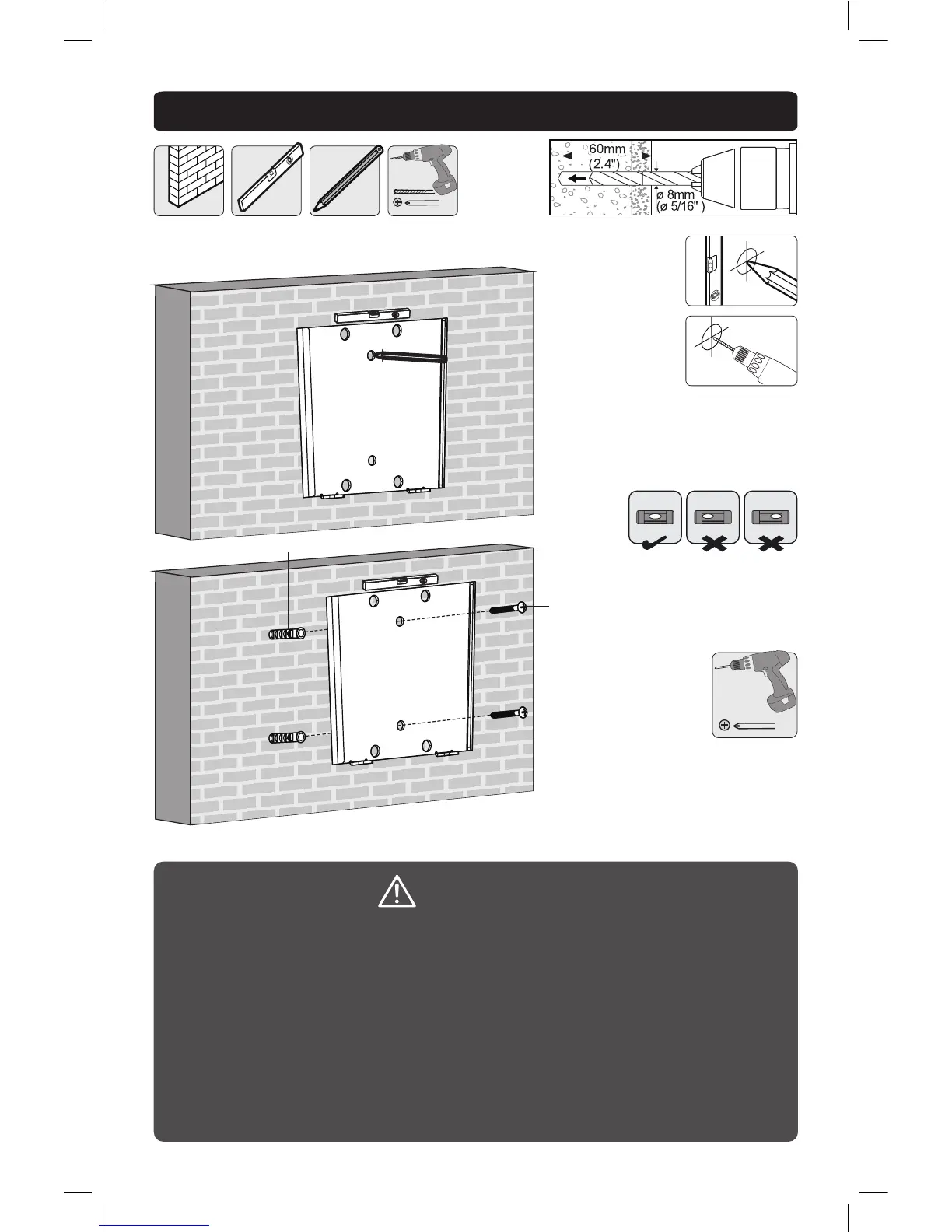

1b. Mount on Solid Brick and Concrete Block
Mark the
exact location of
mounting holes
Screw the wall
mount onto
the wall
Drill pilot holes
WARNING
• When installing wall mounts onto a concrete masonry unit (also known as a CMU or
“cinder block”), verify that the actual concrete thickness is at least 35mm (1-3/8”)
in order to hold the two concrete anchors. DO NOT DRILL INTO MORTAR JOINTS! Be
sure to mount the wall-mount plate with the included concrete anchors and anchor
bolts onto a solid section of the block. The solid sections can generally be found
25mm (1”) toward the middle of the block from either end. An electric drill on a
slow setting is suggested to drill the hole rather than a hammer drill so as to avoid
breaking out the back of the hole when entering a hollow section.
• Installers must verify that the supporting surface will safely support the combined
load of the equipment and all attached hardware and components.
2
1
Concrete Anchor
Anchor Bolt
