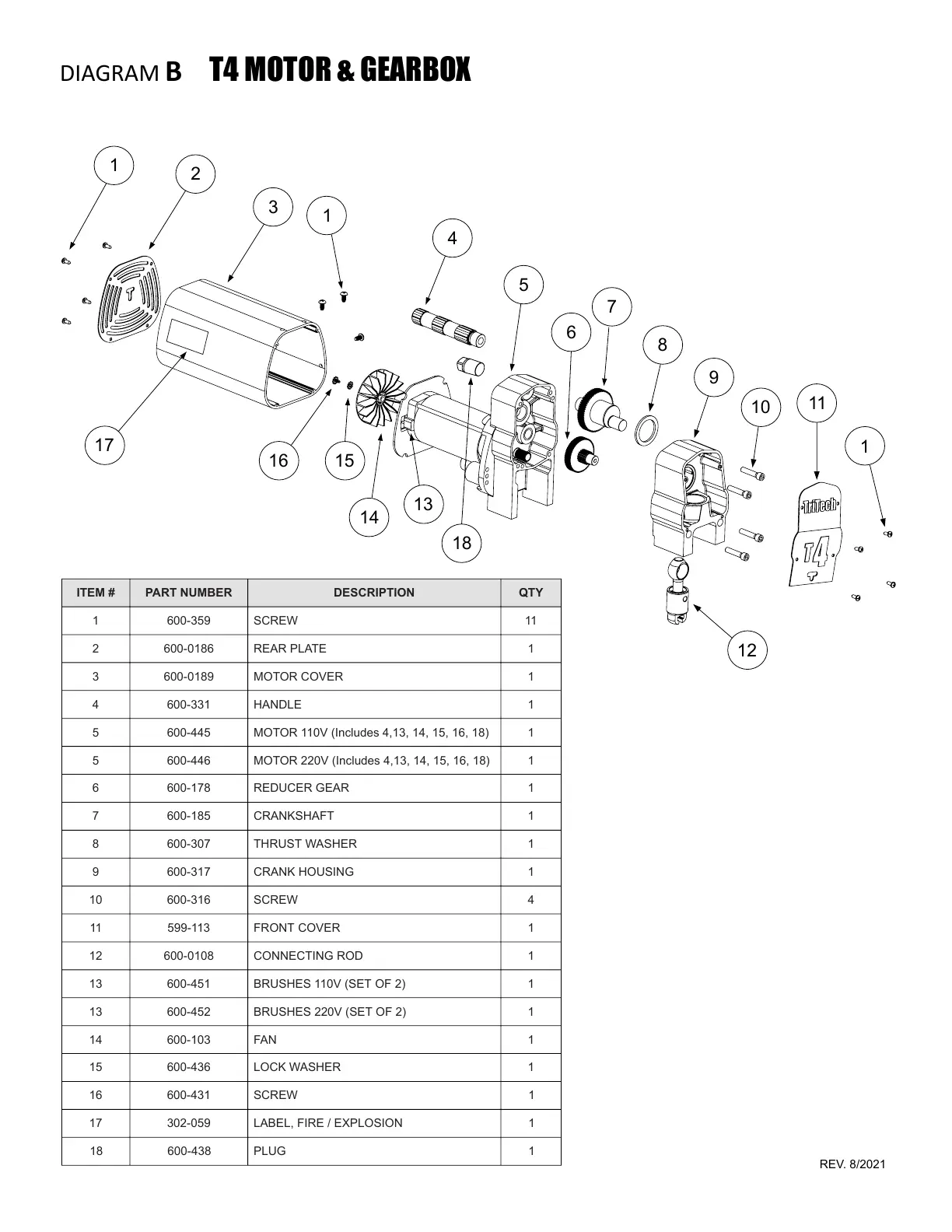

T4 MOTOR & GEARBOX
ITEM # PART NUMBER DESCRIPTION QTY
1 600-359 SCREW 11
2 600-0186 REAR PLATE 1
3 600-0189 MOTOR COVER 1
4 600-331 HANDLE 1
5 600-445 MOTOR 110V (Includes 4,13, 14, 15, 16, 18) 1
5 600-446 MOTOR 220V (Includes 4,13, 14, 15, 16, 18) 1
6 600-178 REDUCER GEAR 1
7 600-185 CRANKSHAFT 1
8 600-307 THRUST WASHER 1
9 600-317 CRANK HOUSING 1
10 600-316 SCREW 4
11 599-113 FRONT COVER 1
12 600-0108 CONNECTING ROD 1
13 600-451 BRUSHES 110V (SET OF 2) 1
13 600-452 BRUSHES 220V (SET OF 2) 1
14 600-103 FAN 1
15 600-436 LOCK WASHER 1
16 600-431 SCREW 1
17 302-059 LABEL, FIRE / EXPLOSION 1
18 600-438 PLUG 1
17
REV. 8/2021
 B
