Tritech T4 - Page 49

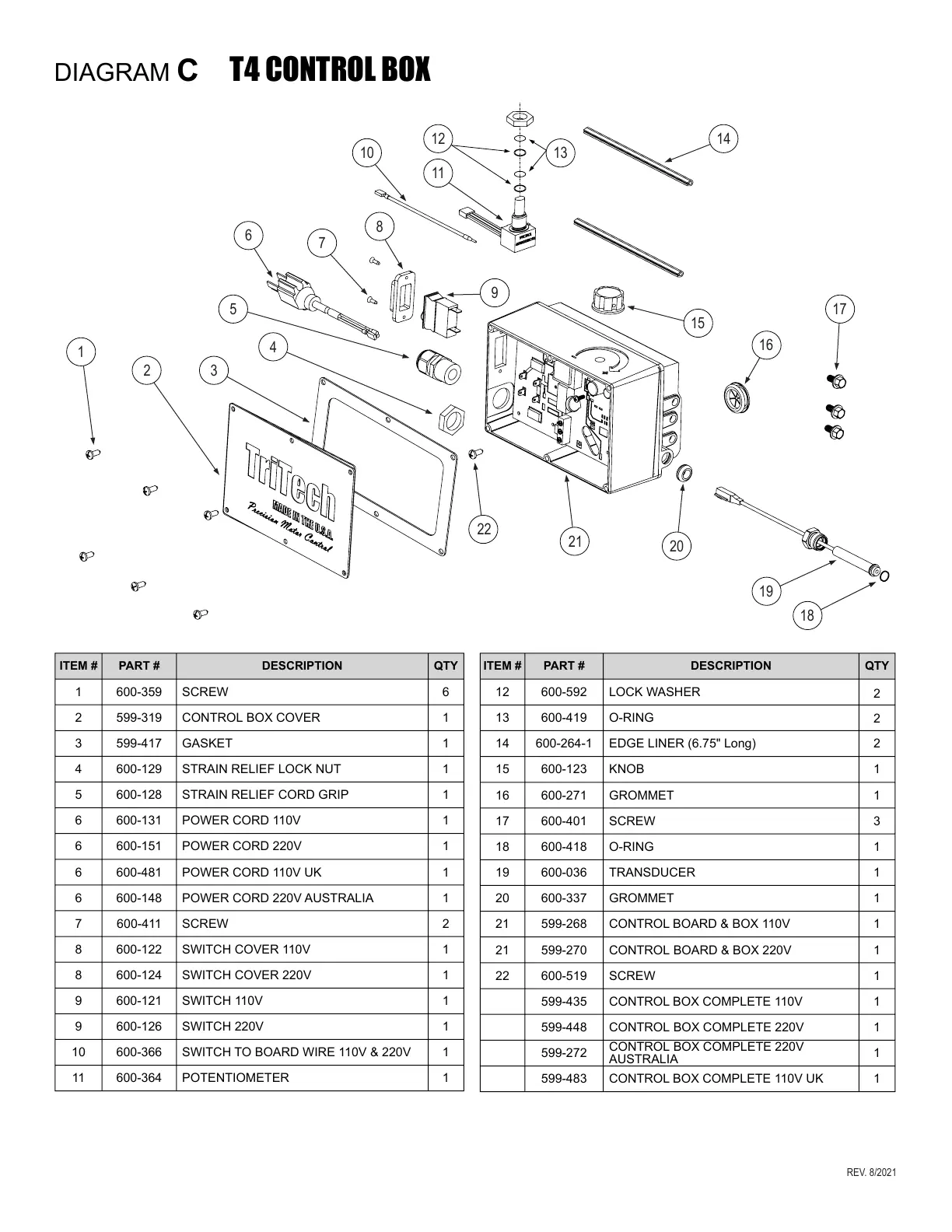

T4 CONTROL BOXDIAGRAM C
ITEM # PART # DESCRIPTION QTY
1 600-359 SCREW 6
2 599-319 CONTROL BOX COVER 1
3 599-417 GASKET 1
4 600-129 STRAIN RELIEF LOCK NUT 1
5 600-128 STRAIN RELIEF CORD GRIP 1
6 600-131 POWER CORD 110V 1
6 600-151 POWER CORD 220V 1
6 600-481 POWER CORD 110V UK 1
6 600-148 POWER CORD 220V AUSTRALIA 1
7 600-411 SCREW 2
8 600-122 SWITCH COVER 110V 1
8 600-124 SWITCH COVER 220V 1
9 600-121 SWITCH 110V 1
9 600-126 SWITCH 220V 1
10 600-366 SWITCH TO BOARD WIRE 110V & 220V 1
11 600-364 POTENTIOMETER 1
ITEM # PART # DESCRIPTION QTY
12 600-592 LOCK WASHER
13 600-419 O-RING
2
14 600-264-1 EDGE LINER (6.75" Long) 2
2
15 600-123 KNOB 1
16 600-271 GROMMET 1
17 600-401 SCREW 3
18 600-418 O-RING 1
19 600-036 TRANSDUCER 1
20 600-337 GROMMET 1
21 599-268 CONTROL BOARD & BOX 110V 1
21 599-270 CONTROL BOARD & BOX 220V 1
22 600-519 SCREW 1
599-435 CONTROL BOX COMPLETE 110V 1
599-448 CONTROL BOX COMPLETE 220V 1
599-272
CONTROL BOX COMPLETE 220V
AUSTRALIA
1
599-483 CONTROL BOX COMPLETE 110V UK 1
REV. 8/2021
1
2 3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
20
19
18
21
22
49
