Tritech T4 - Page 50

50
+
600-131
Power Cord
Ground Wire
600-336 Red
600-364 Potentiometer
600-036 Transducer
RED (+) MotorBLACK (-) Motor
MOTOR
600-121
Switch
/ Circuit
Breaker
110V
A/C INPUT
NEG (-) POS (-)
BLACK (-) Motor
+
600-151
Power Cord
Ground Wire
600-366 Red
600-364 Potentiometer
600-036 Transducer
RED (+) Motor
MOTOR
600-124
Switch
/ Circuit
Breaker
220V
A/C INPUT

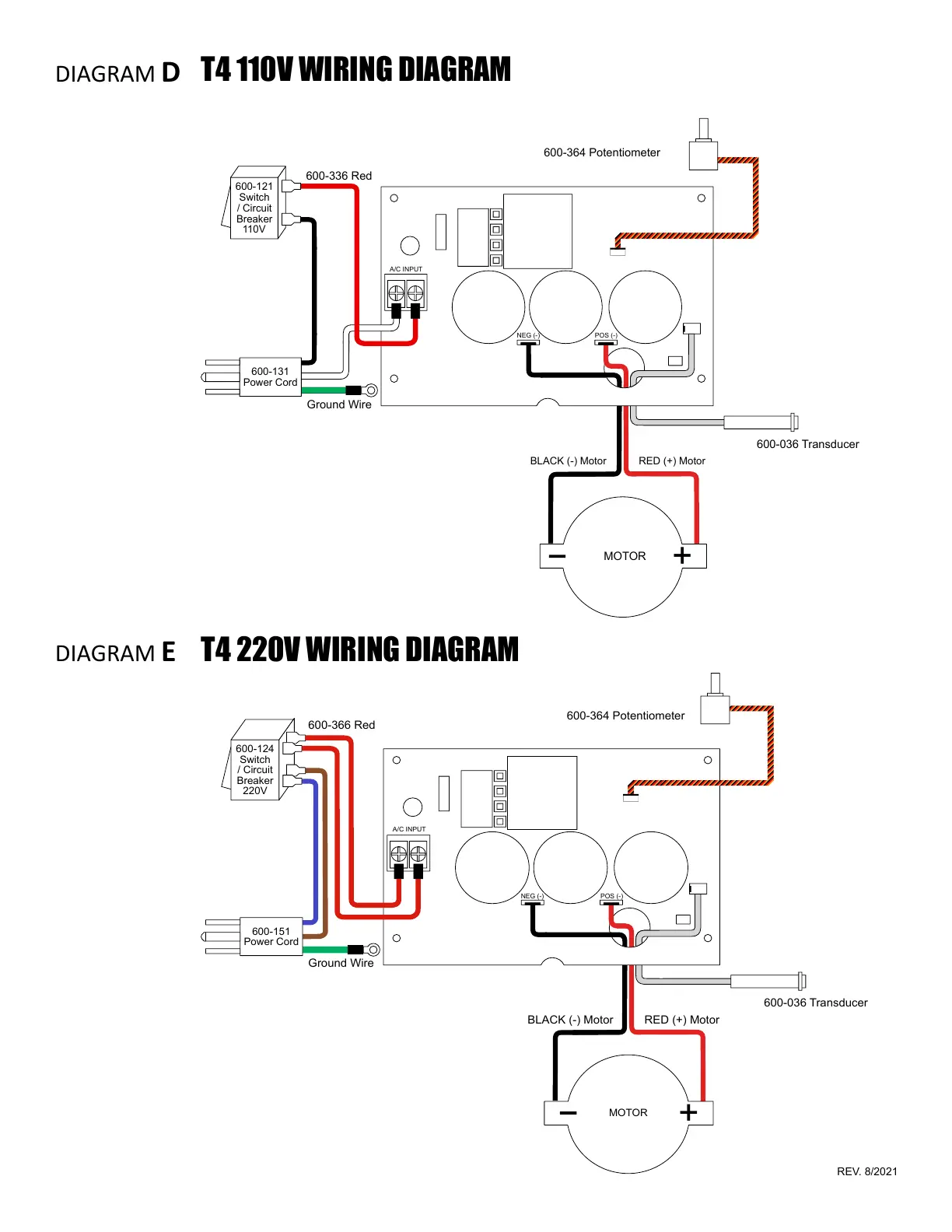

T4 110V WIRING DIAGRAM
T4 220V WIRING DIAGRAM
NEG (-) POS (-)
 D
 E
REV. 8/2021
